Summary of Contents for swissonic CDMP 1

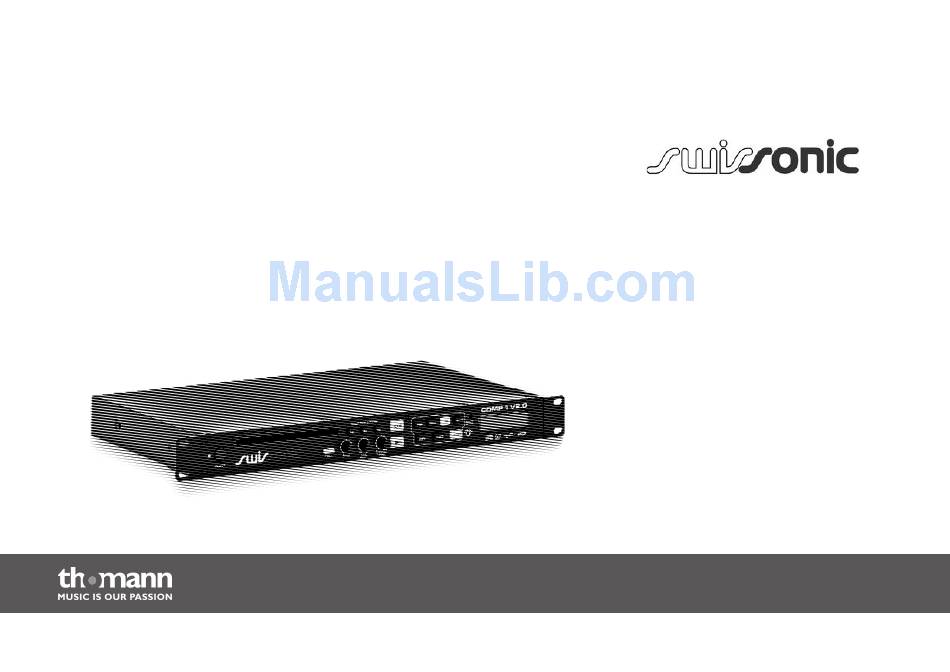

Page 1 CDMP 1 CD/MP3 player user manual...
Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 06.03.2014, ID: 221521...
Page 3: Table Of Contents
1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 7 Safety instructions..........................10 Features............................... 15 Installation..............................16 Connections and operating elements................... 17 Operation..............................31 Technical specifications........................37 Plug and connection assignment....................38 Protecting the environment......................40 CDMP 1...
Page 4: General Notes
General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.
Page 5: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the Service customer service will gladly assist you. CDMP 1...
Page 6: Notational Conventions
General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...
Page 7: Symbols And Signal Words
Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. CDMP 1...
Page 8 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a possible dangerous situation that can result in minor injury if it is not avoided.
Page 9 General notes Warning signs Type of danger Warning – laser radiation. Warning – danger zone. CDMP 1...
Page 10: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for playback of audio CDs and MP3 discs. Use the unit only as described in this manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage.
Page 11 Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician. CDMP 1...
Page 12 Safety instructions DANGER! Laser radiation inside The device contains a class-1M laser, classified according to EN 60825-1. The use of optical instruments increases the potential hazard to your eyes. NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source.
Page 13 NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting batteries. CDMP 1...
Page 14 Safety instructions NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impairment.
Page 15: Features
40 seconds anti shock buffer memory for uninterrupted playback during vibrations Speed / pitch adjustable by ± 24 % Infrared remote control Loop function Slot-in drive Headphones output with separate volume control 19" rack housing (1 RU) Built-in power supply unit with detachable power cable Automatic standby CDMP 1...
Page 16: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
Page 17: Connections And Operating Elements
Connections and operating elements Connections and operating elements Front panel CDMP 1...
Page 18 Connections and operating elements 1 Power indicator The LED lights up when the unit is turned on. 2 [POWER] Press this button to turn the device on or off. 3 Disc slot Carefully insert the disc to be played here about half. Press this button once to restart the currently playing track.
Page 19 11 [REPEAT] Press this button to activate the repeat function: repeat one track (display shows ‘1’ ), repeat all songs in an MP3 folder (display shows ‘F’ ) or all tracks on the disc (the display shows ‘A’ ). CDMP 1...
Page 20 Connections and operating elements 12 [REMOTE SENSOR] This sensor receives the remote control signals. When using the remote control, point it at the device. Keep the area in front of the sensor free from any obstructive objects and don't glue stickers on the sensor, otherwise the remote won't work.
Page 21 With this control you can increase or decrease the speed and thus the audio pitch by ± 24%. This feature is only ena‐ bled when the [PITCH] button is lit. 22 [EJECT] Press this button to eject the inserted disc. CDMP 1...
Page 22 Connections and operating elements Rear panel 23 [LINE OUTPUT L/R] This unbalanced RCA output is subject to the [MASTER LEVEL] volume control. Connect here for example the line input of a mixer, amplifier or similar device via an RCA cable. 24 [REC OUTPUT L/R] Unbalanced RCA output with fixed output level.
Page 23 Balanced XLR output, which is not subject to any volume control. Connect here for example the line input of a mixer, amplifier or similar device via an XLR cable. 26 IEC chassis connector for operating voltage supply. Use the supplied mains cable to connect this mains power con‐ nector to an earthed wall outlet. CDMP 1...
Page 24 Connections and operating elements Display 1 Bargraph, symbolizing the time course when playing a track from an audio CD. 10 elements correspond to the full track time. In MP3 mode, the track name is shown here instead. 2 Repeat function display: ‘1’ = single track repeat, ‘F’ = folder repeat (MP3), ‘A’ = disc repeat. 3 Pitch display for raised or lowered playback speed.
Page 25 Connections and operating elements 5 Track number indicator. 6 Indicator for playback ( ) or pause ( ). CDMP 1...
Page 26 Connections and operating elements Remote control During playback, press this button once to pause the playback. Press twice to stop playback. 2 Numeric buttons for direct track selection. 3 [PROGRAM] In CD mode, this button lets you programme up to 20 tracks to be played in a spe‐ cific order.
Page 27 Keep this button pressed to activate a forward search. Press this button once to restart the currently playing track. Press it repeatedly to select previous tracks. 9 [RELOOP] Press this button to skip the playback to the beginning of a previously marked loop. CDMP 1...
Page 28 Connections and operating elements 10 [LOOP OUT] With this button you can mark the end of a loop. Then, the selected section will be repeated. Press this button again to delete the marks and to let the playing con‐ tinue normally. 11 [LOOP IN] With this button you can set the start marker for a loop.
Page 29 When the pitch function is activated the [PITCH] button on the unit lights up. 17 [PITCH–] If you press [PITCH–], the playback speed is set to the value that has been adjusted with the [PITCH] control minus 1%. Each subsequent press decreases the playback speed by 1%. CDMP 1...
Page 30 Connections and operating elements 18 [REPEAT] Press this button to activate the repeat function: repeat one track (display shows ‘1’ ), repeat all songs in an MP3 folder (display shows ‘F’ ) or all tracks on the disc (display shows ‘A’ ). Press this button to eject the inserted disc.
Page 31: Operation
Subsequently, the device reads the disc (the EJECT indi‐ cator is flashing) and remains in Pause mode of track 1 of an audio CD or the first track in the alphabetically first folder with MP3 files. The flashing button indicates the Pause mode. CDMP 1...
Page 32 Operation Playback Press the button to start playback. The button lights up solid during playback. Press this button again to pause playback. Press the button during playback or pause to skip to the next track on the disc. Press the button once to skip to the beginning of the current track.
Page 33 To increase the volume of the headphone output PHONES, turn the [CUE LEVEL] control clockwise. To decrease the volume, turn it counter clockwise. The output level on the outputs ‘REC’ and ‘XLR BALANCED’ is not adjust‐ able. CDMP 1...
Page 34 Operation Play modes Single or total playback Press the [SGL] button to toggle between play modes ‘SINGLE’ and ‘CONTINUOUS’. In SINGLE mode, the unit stops after playing a track and the SGL-button lights. In CONTINUOUS mode, the unit will stop only after all tracks have been played, the button remains unlit. Repeat function Press the [REPEAT] button once, then the currently playing track is repeated after reaching its end.
Page 35 You can use the [TIME] button to select the playing time indication in the display: elapsed track time, remaining track time or remaining total time. In MP3 playback, only the display of ‘elapsed’ and ‘remaining track time’ are avail‐ able. CDMP 1...
Page 36 Operation Ejecting the disc Press the [EJECT] button to remove the disc. This is only possible when playback is paused to avoid an unintended removal of the disc. The [EJECT] button lights up while the unit ejects the disc. CD/MP3 player...
Page 37: Technical Specifications
Control range for playback speed ± 24 % Operating voltage supply AC 230 V , 50/60 Hz Dimensions (W × H) 485 mm × 44.5 mm (1 RU) Installation depth: 255 mm Overall depth: 275 mm Weight 4 kg CDMP 1...
Page 38: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
Page 39 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) CDMP 1...
Page 40: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery.
Page 41 Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. CDMP 1...
Page 42 Notes CD/MP3 player...
Page 44 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
