swissonic CDMP 1 User Manual

Cd/mp3 player
Hide thumbs Also See for CDMP 1:

Advertisement

Quick Links

Download this manual See also: User Manual
CDMP 1
CD/MP3 player
user manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CDMP 1 and is the answer not in the manual?

Questions and answers

Related Manuals for swissonic CDMP 1

Summary of Contents for swissonic CDMP 1

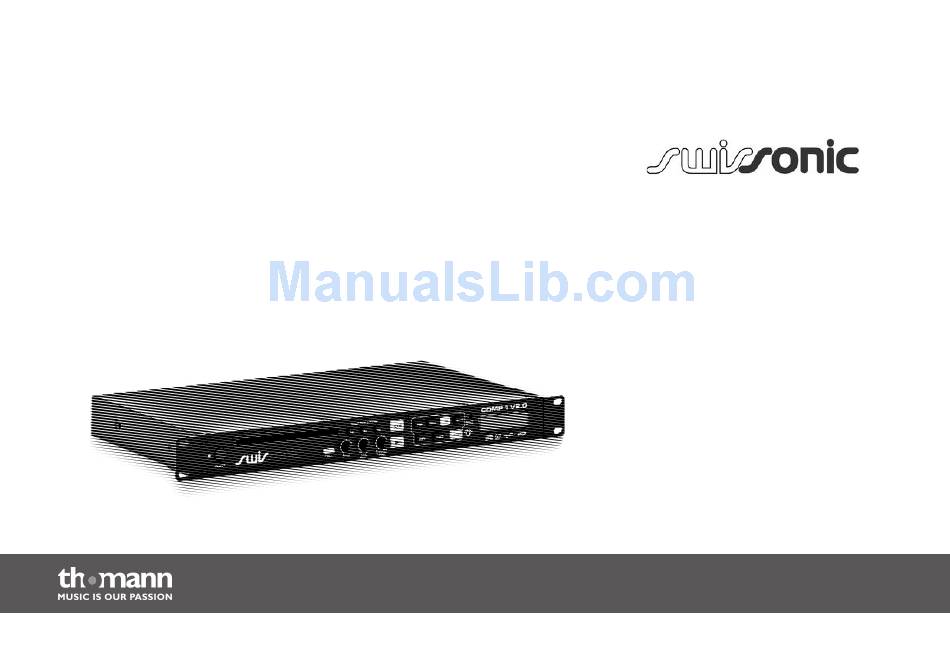

  • Page 1 CDMP 1 CD/MP3 player user manual...
  • Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 09.01.2013...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 4 Safety instructions............................. 7 Features............................... 12 Installation..............................13 Connections and operating elements................... 14 Operation..............................28 Technical specifications........................33 Protecting the environment......................34 CDMP 1...

  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner.
  • Page 5 NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. CDMP 1...
  • Page 6 General notes Warning signs Type of danger Warning – laser radiation. Warning – danger zone. CD/MP3 player...

  • Page 7: Safety Instructions

    Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. CDMP 1...
  • Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
  • Page 9 Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. CDMP 1...
  • Page 10 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
  • Page 11 With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impairment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment. CDMP 1...

  • Page 12: Features

    Features Features This CD/MP3 player is suitable to be used in clubs, bars, discos and on stages. Special features of this device: Balanced XLR outputs 40 seconds anti shock buffer memory for uninterrupted playback during vibrations Speed / pitch adjustable by ± 24 % Infrared remote control Loop function Slot-in drive...

  • Page 13: Installation

    2 × 1.5 V batteries ('AAA' size) according to the drawing in the compartment. Make sure to respect the correct polarity, otherwise the remote will not work and may be damaged. Close the compartment. If the remote control begins to work unreliably, replace both batteries with new ones of the same type. CDMP 1...

  • Page 14: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Front panel CD/MP3 player...
  • Page 15 Press this button to skip the playback to the beginning of the next track. 6 +10 This button lets you select high MP3 track numbers more quickly, as the device skips 10 titles per press. But this works only if the current folder on the disc contains more than 10 files. CDMP 1...
  • Page 16 Connections and operating elements 7 CUE If you press this button during playback, the playback will return to the beginning of the current track. The [CUE] button lights red. If you press the button again and hold it, the playing will be resumed and will continue as long as you hold the button.
  • Page 17 If you press this button the setting of the [PITCH] control is applied to the current playback. When the pitch function is activated the button lights up. 16 FWD Press and hold this button to activate the search function forwards. 17 REV Press and hold this button to activate the search function backwards. CDMP 1...
  • Page 18 Connections and operating elements Press this button after inserting the disc to start playback. During playback, the button is lit. If you press this button during playback, the playback is paused and the button is flashing. Press this button again to resume playback. 19 MASTER LEVEL For adjusting the LINE output level.
  • Page 19 RCA cable. 24 REC OUTPUT L/R Unbalanced RCA output with fixed output level. Again, you can for example connect the line input of a mixer, ampli‐ fier or similar device via an RCA cable. CDMP 1...
  • Page 20 Connections and operating elements 25 XLR BALANCED Balanced XLR output, which is not subject to any volume control. Connect here for example the line input of a mixer, amplifier or similar device via an XLR cable. 26 IEC chassis connector for operating voltage supply. Use the supplied mains cable to connect this mains power con‐ nector to an earthed wall outlet.
  • Page 21 In MP3 mode, the track name is shown here instead. 2 Repeat function display: ‘1’ = single track repeat, ‘F’ = folder repeat (MP3), ‘A’ = disc repeat. 3 Pitch display for raised or lowered playback speed. 4 Playing time indicator. CDMP 1...
  • Page 22 Connections and operating elements 5 Track number indicator. 6 Indicator for playback ( ) or pause ( ). CD/MP3 player...
  • Page 23 [PITCH] button is not lit, the feature therefore is deactivated. If you press [PITCH+], the playback speed is set to the value that has been adjusted with the [PITCH] control plus 1%. Each subsequent press increases the playback speed by CDMP 1...
  • Page 24 Connections and operating elements 5 SGL/CTN Press this button to toggle between play modes ‘SINGLE’ and ‘CONTINUOUS’. In SINGLE mode, the unit stops after playing a track and the [SGL] button lights up. In CONTINUOUS mode, the unit will stop only after all tracks have been played, the button then remains unlit.
  • Page 25 Press and hold this button to activate a reverse search. 14 TIME Press this button to select the display mode for the playing time: elapsed track time, remaining track time or remaining total time (not in MP3 mode). CDMP 1...
  • Page 26 Connections and operating elements 15 CUE If you press this button during playback, the playback will return to the beginning of the current track. The [CUE] button on the unit then lights red. Press it again to resume playback. 16 PITCH If you press this button the setting of the [PITCH] control is activated or deactivated for the current playback.
  • Page 27 Press this button to activate the repeat function: repeat one track (display shows ‘1’), repeat all songs in an MP3 folder (display shows ‘F’) or all tracks on the disc (the display shows ‘A’). Press this button to eject the inserted disc. CDMP 1...

  • Page 28: Operation

    Operation Operation Turning the device on and off Press the [POWER] button to turn the device on. The status LED to the left of the switch and the display backlight will light up. If you want to turn the device off press the [POWER] button again.
  • Page 29 To increase the volume of the headphone output PHONES, turn the [CUE LEVEL] control clockwise. To decrease the volume, turn it counter clockwise. The output level on the outputs ‘REC’ and ‘XLR BALANCED’ is not adjust‐ able. CDMP 1...
  • Page 30 Operation Play modes Single or total playback Press the [SGL] button to toggle between play modes ‘SINGLE’ and ‘CONTINUOUS’. In SINGLE mode, the unit stops after playing a track and the SGL-button lights. In CONTINUOUS mode, the unit will stop only after all tracks have been played, the button remains unlit. Repeat function Press the [REPEAT] button once, then the currently playing track is repeated after reaching its end.
  • Page 31 You can use the [TIME] button to select the playing time indication in the display: elapsed track time, remaining track time or remaining total time. In MP3 playback, only the display of ‘elapsed’ and ‘remaining track time’ are avail‐ able. CDMP 1...
  • Page 32 Operation Ejecting the disc Press the [EJECT] button to remove the disc. This is only possible when playback is paused to avoid an unintended removal of the disc. The [EJECT] button lights up while the unit ejects the disc. CD/MP3 player...

  • Page 33: Technical Specifications

    Control range for playback speed ± 24 % Operating voltage supply AC 230 V , 50/60 Hz Dimensions (W × H) 485 mm × 44.5 mm (1 RU) Installation depth: 255 mm Overall depth: 275 mm Weight 4 kg CDMP 1...

  • Page 34: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery.
  • Page 35 Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. CDMP 1...
  • Page 36 Notes CD/MP3 player...
  • Page 37 Notes CDMP 1...
  • Page 38 Notes CD/MP3 player...
  • Page 40 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
