20 | DANGEROUS MUSIC
APPENDIX

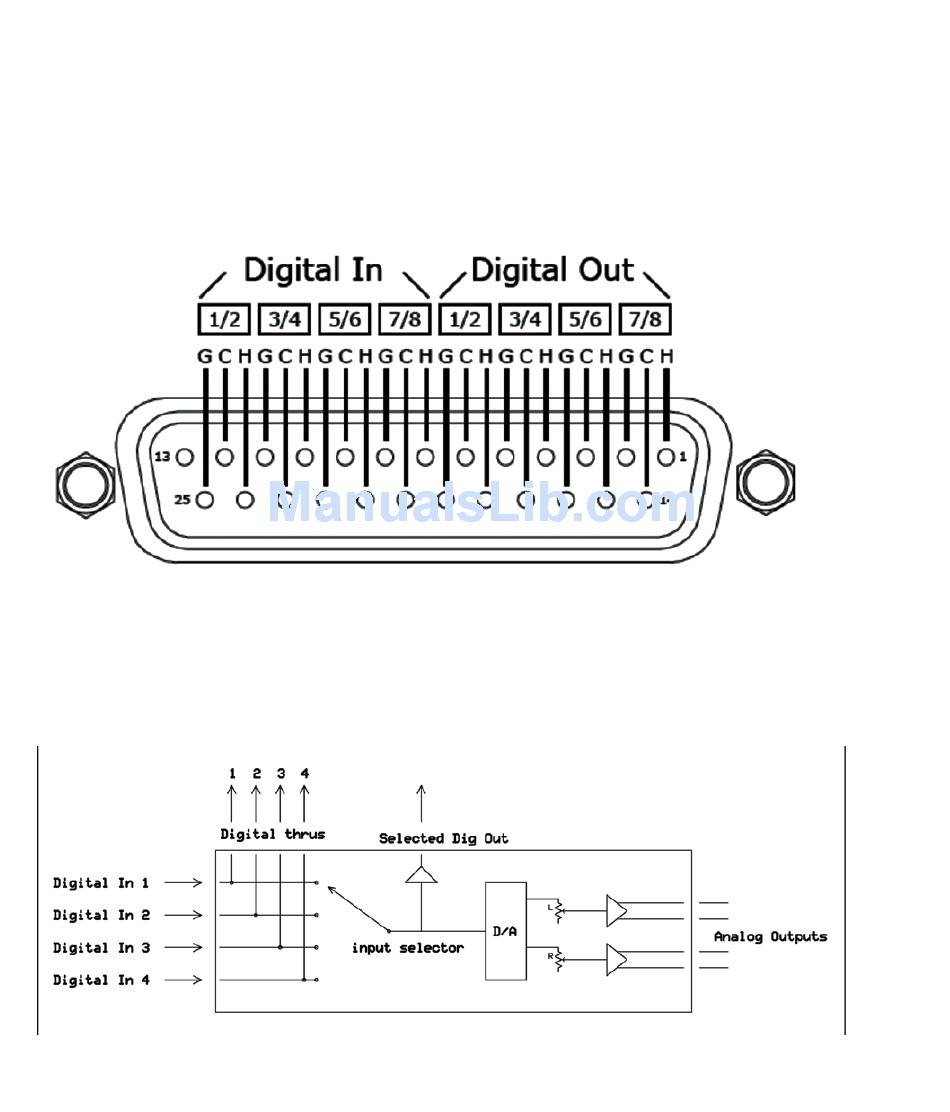

AES/EBU DB25
8 CHANNEL BIDIRECTIONAL IN & OUT
Note: the four AES inputs and four pass-throughs are on a single 25 pin D-subminiature connector. For reference,
and for those intrepid solder jockeys who wish to build their own cables, the pin out diagram of the Digital in/thru
connector is shown above.
BLOCK DIAGRAM OVERVIEW OF THE DAC-ST SIGNAL FLOW
