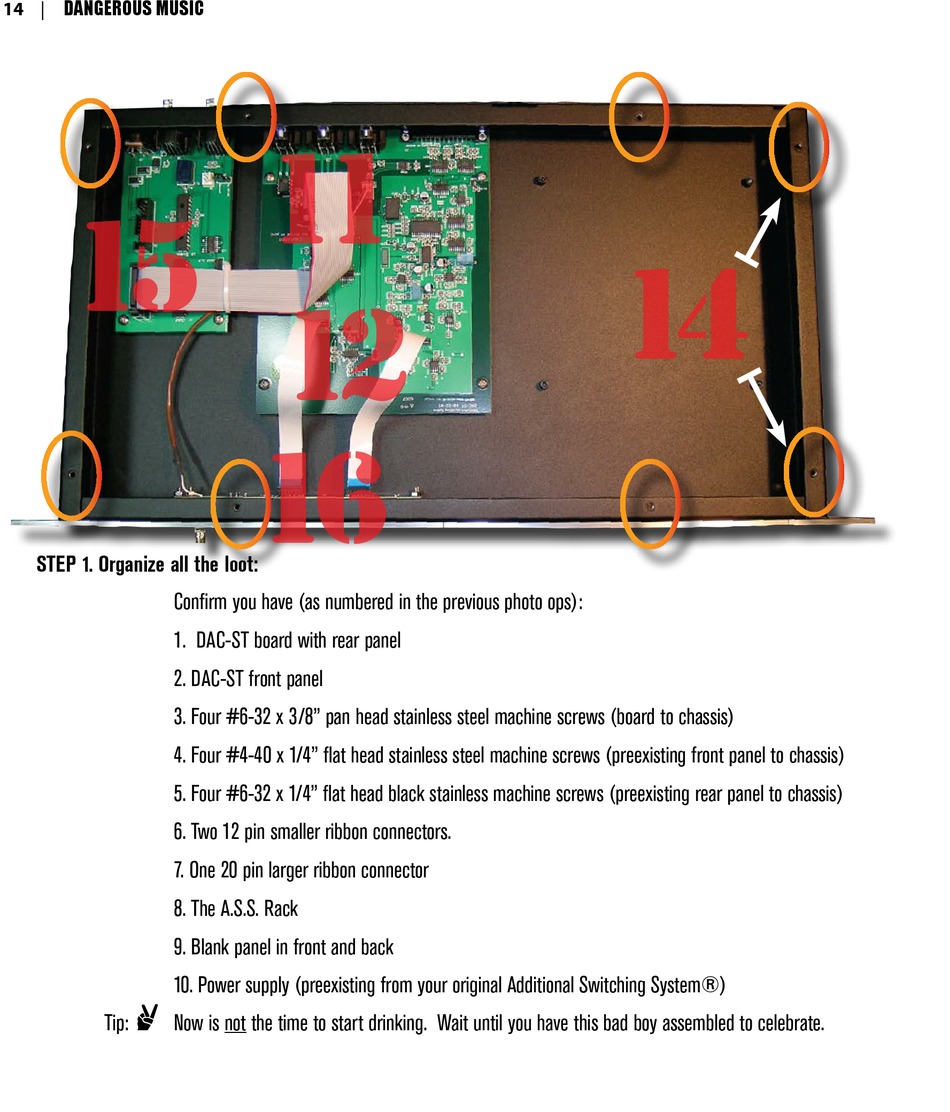

STEP 1. Organize all the loot:
Confirm you have (as numbered in the previous photo ops):
1. DAC-ST board with rear panel
2. DAC-ST front panel
3. Four #6-32 x 3/8" pan head stainless steel machine screws (board to chassis)
4. Four #4-40 x 1/4" flat head stainless steel machine screws (preexisting front panel to chassis)
5. Four #6-32 x 1/4" flat head black stainless machine screws (preexisting rear panel to chassis)
6. Two 12 pin smaller ribbon connectors.
7. One 20 pin larger ribbon connector
8. The A.S.S. Rack
9. Blank panel in front and back
10. Power supply (preexisting from your original Additional Switching System®)
,
Tip:
Now is not the time to start drinking. Wait until you have this bad boy assembled to celebrate.
