    User Manual BroadR-Reach – Standard Ethernet MediaGateway Version 1.0 17. September 2014 You can download the latest firmware and documentation for the MediaGateway here: http://www.technica-engineering.de/MediaGateway Technica Engineering GmbH Fax: +49-89-34290265 Olschewskibogen 18 Email: Info@technica-engineering.de 80935 München www.technica-engineering.de Germany...
  • Page 2: Table Of Contents

    5.4.5 Gigabit Port .....................16 5.4.6 SFP Port ......................17 5.4.7 BroadR-Reach Test Modes ................18 Contact Tab ......................19 Example MediaGateway Configuration “FullBlown” ............20 Hardware Variants ......................22 BroadR-Reach Analog Filter: ..................22 SFP ........................22 Debug connector ....................22 Startup Time ......................23 Bootloader Update ......................24 Application Firmware Update ..................27 Frequently Asked Questions –...
  • Page 3: Feature List

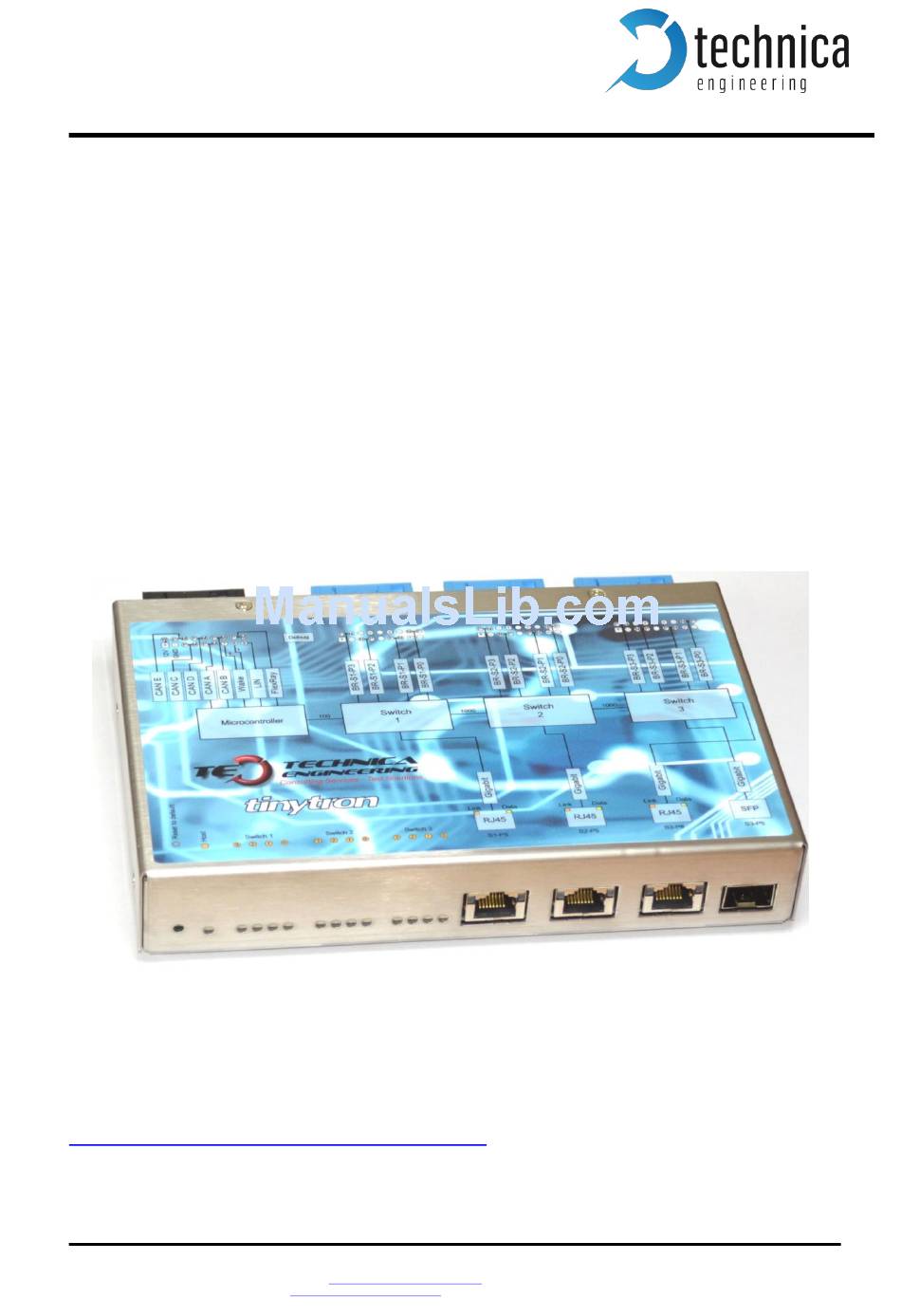

    1 Feature List The Technica Engineering MediaGateway has the following basic features: 12 Ports Broadcom BroadR-Reach 100 MBit/s Fullduplex on a single unshielded twisted pair 3 Ports Gigabit Ethernet 10/100/1000 BaseTX Fullduplex 1 Port Gigabit Ethernet SFP module socket  Broadcom BroadR-Reach Technology ...
  • Page 4: Warranty And Safety Information

    Before operating the device, read this manual thoroughly and retain it for your reference. You can download the latest firmware and documentation for the MediaGateway here: http://www.technica-engineering.de/MediaGateway Use the device only as described in this manual. Use only in dry conditions.
  • Page 5: Pinning

    Power supply for the device is supplied by Pin 1 (12Volt) and Pin 2 (Ground). Requirements for the MediaGateway itself: 12 Volt DC up to 1 Ampere (typical 600mA) If the 12 Volt camera power output is used, this current is also sourced of Pin 1 and 2.
  • Page 6 CAN Bus interface (CAN A) on pins 5 (BP) and 6 (BM). This interface may be used for CAN based wakeup and data transfer. In the default software there is no data transmission speci- fied. This interface may only be used in customer specific (Gateway) software. CAN B to CAN E do not support wakeup functionality.
  • Page 7: Switch Connectors

    3.2 Switch connectors Connector color: blue The pins marked with (P) or (N) are used for the BroadR-Reach ports. Four ports are availa- ble per switch. You have to connect the (P) pin to the (P) pin of the periphery device. You have to connect the (N) pin to the (N) pin of the periphery device.
  • Page 8: Status Leds And Pushbutton

    4 Status LEDs and Pushbutton The MediaGateway has several status LEDs at the front side of the case. The “Host” LED is toggles slowly (approx. 0.5 sec) during normal operation to show that the microcontroller is running in normal mode. It is toggling fast (approx. 0.1 sec) when the mi- crocontroller is in bootloader mode.
  • Page 9: Configuration Website

    5 Configuration Website You can access the configuration website with a standard web browser (Firefox is recom- mended, Chrome is not recommended). Connect your PC to a RJ45 connector. The default IP address of the device is 192.168.0.49 and subnet mask 255.255.255.0 If someone has changed the IP address you can reset it to default as described in chapter 3 of this manual.
  • Page 10: Website Home

    5.1 Website Home Warning: If there is a lot of broadcast traffic on the switch, the host microcontroller may be jammed. You can not access the website in this case. Please use VLAN configuration to forward only relevant messages to the host. With the first access to the website you will get the home screen.
  • Page 11: Control Panel Tab

    “Prevent sleep” checkbox (default). This will keep the device running without entering the sleep mode. If you enable the “Watchover” the MediaGateway will send periodically status information about its state. For example transitted and dropped frame counters. For details about the Format of these frames see the Fibex File (and .pdf description) in the firmware release files.
  • Page 12 If you click the „Switch Status“ tab, general configuration settings can be done. Page 12 of 30...
  • Page 13 Page 13 of 30...
  • Page 14: Port Name

    On the left side of the page you can see an overview of all available ports. A blue bar at the side of a port label indicates an active link (On the Cascade SFP port there is no link indication). To configure a port, click on its name to select it.
  • Page 15: Tx/Rx Octets

    5.4.2 Tx/Rx octets The Tx/Rx octets are status counters for the incoming and outgoing bytes of this port. 5.4.3 VLAN Configuration When the “IEEE 802.1q (VLAN) mode” is enabled, you can set various VLAN (Virtual Local Area Network) configurations for routing the traffic through the switch. This is a global option applying to all of the three switches.
  • Page 16: Broadr-Reach Port

    With double tagging enabled, only the outer tag (the one with TPID 0x9100) is relevant for frame forwarding, i.e. the “VLAN membership” refers to the outer tag. TPID = Tag Protocol Identifier, EtherType A value of 0x8100 indicates that the frame has VLAN 802.1q information. A value of 0x9100 indicates that the frame has QinQ (Double Tagging).
  • Page 17: Sfp Port

    5.4.6 SFP Port You have the choice of different modules. The SFP Port can be set to “Fiber” if you care using a SFP MiniGBIC Fiber module. Use “RJ45” for copper modules. Use HSD for old MediaSwitches which have an HSD connector instead of an SFP slot. Page 17 of 30...
  • Page 18: Broadr-Reach Test Modes

    5.4.7 BroadR-Reach Test Modes Each BroadR-Reach Port you can set to a BroadR-Reach Physical Layer Test Mode. There are five test modes defined in the BoradR-Reach Spec to check the complience of a port. When a test mode has been selected there is no communication possible. For compliance testing an oscilloscope with special test software is necessary.
  • Page 19: Contact Tab

    5.5 Contact Tab In the „Contact Tab“ information is displayed how to contact us if you need service. Page 19 of 30...
  • Page 20: Example Mediagateway Configuration "Fullblown

    6 Example MediaGateway Configuration “FullBlown” In this chapter we describe one possible UseCase of the MediaGateway. It shows how VLAN Tagging can be used to analyze a Network of BroadR-Reach ECUs. ICAM PC Communicates with the Microcontroller, the Cam- eras and the ECU.
  • Page 21 3. To avoid that the data of one camera is sent to the other cameras and vice versa Note: For this configuration to work, the ICAM ECU needs to be connected to the MediaGateway as described in the above table! Page 21 of 30...
  • Page 22: Hardware Variants

    7 Hardware Variants Different versions of the MediaGateway have been built. Here some information about hard- ware variants. The HW version is stated on the label on the bottom of the case. 7.1 BroadR-Reach Analog Filter: All filter versions are compatible with each other.
  • Page 23: Startup Time

    7.4 Startup Time The startup time on the device has been greatly reduced in firmware version 3.7. It is dependent of the used hardware version. MediaSwitch (all Versions), MediaGateway Version up to 2.1: PowerUp and Processor Boot time: 65ms Configuration time depending on complexity:...
  • Page 24: Bootloader Update

    3. Connect a Windows PC with a RJ45 cable directly to the left RJ45 Port of the MediaGateway and make sure there is a link. Do not connect a switch in between. 4. Disconnect all other Ethernet, CAN, FlexRay, LIN and BroadR-Reach links from the MediaGateway.
  • Page 25 -t 192.168.0.49 -e Option –t specifies the IP Address of the MediaGateway. Option –e restarts the MediaGateway and starts it in bootloader mode. Note: The Host LED is blinking fast when in bootloader mode. 10. In the DOS-Box execute the following command to flash bootloader-updater: redtool.exe -t 192.168.0.49 -f redboot-updater.srec -r...
  • Page 26 Page 26 of 30...
  • Page 27: Application Firmware Update

    3. Connect a Windows PC with a RJ45 cable directly to the left RJ45 Port of the MediaGateway and make sure there is a link. Do not connect a switch in between. 4. Disconnect all other Ethernet, CAN, FlexRay, LIN and BroadR-Reach links from the MediaGateway.
  • Page 28 -t 192.168.0.49 -e Option –t specifies the IP Address of the MediaGateway. Option –e restarts the MediaGateway and starts it in bootloader mode. Note: The Host LED is blinking fast when in bootloader mode. 10. In the DOS-Box execute the following command: redtool.exe -t 192.168.0.49 -f EthernetSwitch.crc.srec -r...
  • Page 29: Frequently Asked Questions - Faq

    Technica Engineering GmbH to get information about advanced software fea- tures. Q: When I use the MediaGateway in my test setup, I cannot access the configuration website anymore. A: The host microcontroller is jammed by mislead packets. Please use a valid VLAN configuration and avoid too much broadcast packets.
  • Page 30: Contact

    11 Contact If you have any questions regarding this product please feel free to contact us: Technica Engineering GmbH Olschewskibogen 18 80935 München Germany Fax: +49-89-34290265 Info@technica-engineering.de www.technica-engineering.de Page 30 of 30...
