Summary of Contents for UBISLATE 7CZ
-

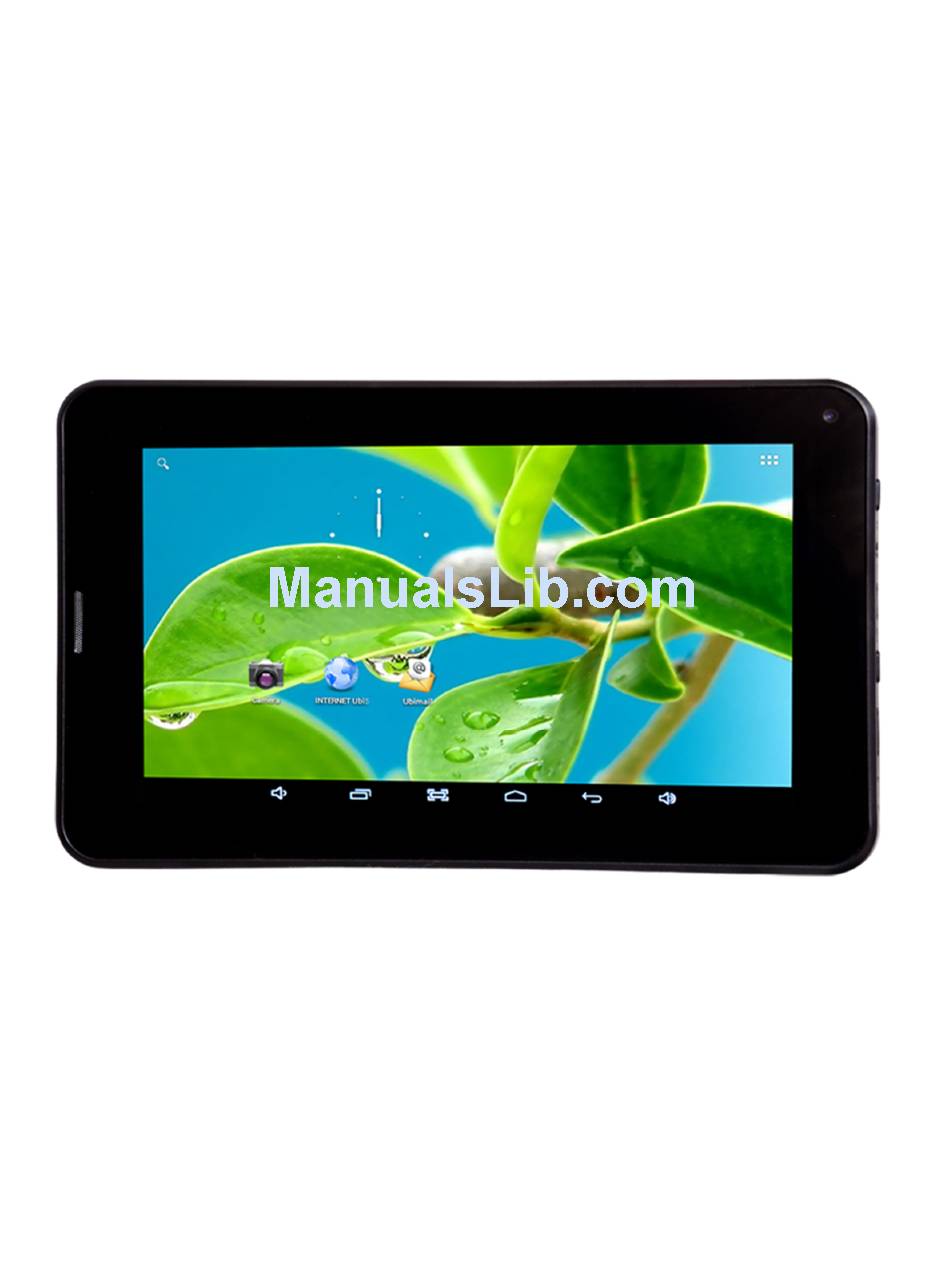

Page 1: User Manual
UBISLATE 7CZ USER MANUAL... -
Page 2: Table Of Contents
Contents Getting ready to use the device ●What’s inside the box? ●Product Appearance Technical Specifications Quick Start Guide ●Charging the Battery ●Power on ●Power save mode and Lock Screen ●Power off ●Using the UbiSlate7CZ as a phone ●Inserting a SIM Card ●Bluetooth Pairing ●Orientation Sensor Setting ●Using the Touch Screen... -
Page 3: Getting Ready To Use The Device
Getting ready to use the device What’s inside the box? A: Mobile Internet Device B: AC Adaptor C: Quick Start Guide D: Warranty Card The use of non-approved hardware accessory items or unapproved software may cause damage to the product or malfunctions not covered by the manufacturer’s warranty. Product Appearance... -
Page 4: Technical Specifications
Technical Specifications LCD Display 7” TFT Capacitive Multi-touch LCD – 800*480 pixels Android 4.2.2 Processor Cortex A7; Dual Core 1.2 GHz Processor Memory 1GB RAM Storage 4GB on board, expandable to 32GB via MicroSD PC Interface MicroUSB Power 3.7V Li-Polymer rechargeable battery Audio External speakers, 3.5mm headset jack Video... -
Page 5: Power Off
Power off Press and hold “ ” button for 3 seconds. A menu will appear confirming that you would like to power off. Choose your desired option by tapping the corresponding item on the screen or Tap Cancel to exit to previous operation. Note: When the device’s battery is low, it will send continuous alerts and will shut down automatically when the battery is empty. -
Page 6: Bluetooth Pairing
Bluetooth Pairing Pairing your UbiSlate7CZ to your Bluetooth headset may differ for every headset; however the premise of searching for Bluetooth devices by the UbiSlate7CZ is fairly universal. A pairing system will then usually require passwords entered on both devices to finalize the pairing. Usually this pairing will only have to be performed once. -
Page 7: Using Microsd Cards
your fingertip/stylus across the screen without lifting your fingertip/stylus. Do not pause on the screen with your fingertip/stylus at the initial point of contact or you may accidentally drag an item instead. ●Tap and hold: Some on-screen items have an alternate action if you touch and hold it (e.g., opening an alternate menu, or to activate the drag function). -
Page 8: Shortcut Menu
The status bar is located on the bottom of the desktop. Home Page - Tap to return to the desktop Back - Tap to return to the last screen Recent Apps - Tap here for a list of recently opened applications Volume - - Tap here to decrease the volume of audio output Volume +... -
Page 9: The Ubisurfer Browser
The UbiSurfer Browser The UbiSurfer Browser is the main browser on this device. Using this browser will speed up your surfing experience and can be used anywhere there is a Wi-Fi connection. To view the differences between the UbiSurfer browser and the Android browser, view the chart below. UbiSurfer Dual Browser Comparison Chart Features UbiSurfer Browser Android Browser... -
Page 10: Apk Installation
To connect to the Internet via the UbiSurfer browser, click on the Internet UbiSurfer icon on the Home Screen or via the menu system. To enter URL’s, simply click on the address bar and type it in and click on enter. For example, if you wanted to visit a site like the Google UK web page, simply type www.google.co.uk and click GO. -
Page 11: Camera
Tap on the application that you want to uninstall and follow the instruction to uninstall the applications. E-mail (Ubimail) This device has an application called UbiMail which can be used to send and receive e-mails from almost any POP or IMAP e-mail address. Following the instructions when you open the application will allow you set up and use this program easily. -
Page 12: Multimedia Players
Multimedia Players There are some preinstalled multimedia applications on the device as follows: MUSIC – Go to application menu, tap on “MUSIC” to enter the music playback interface. Only music files that are stored inside the device will be shown in the file list. You can classify the music file list by: RECENT, ALBUMS, ARTISTS, SONGS, PLAYLISTS or GENRES by selecting the appropriate option. -
Page 13: Super Hd Player
Tap the song for 1 second, the option menu will pop up. You can select Play, Add to playlist, Shop for Artist, Delete or Search. Tap “Play” to enter the playback interface and start music playback or you may also tap the song name directly. -
Page 14: Set Language
Tap on video, it will show the list of the video files in a small icon. Tap the file that you want to view to start playback. You can adjust the volume, play/pause, backward, forward, go back or go to submenu for more setting options by tapping the appropriate icon on the function bar. Function bar Tap on camera, it will show the list of the recorded videos and image files in a small icon. -
Page 15: Set Date And Time
Set Date and Time From application menu, tap on “Settings” and select “Date & time” from the list. Tick on “Automatic” and the date and time will be set automatically by using network-provided values or untick “Automatic” to set the date and time manually. You can also adjust the time zone, set it to 24-hour time format and/or adjust the date format by tapping the appropriate options provided. -
Page 16: Important Safety Information
For troubles that are not be resolved by reading this manual, please do not hesitate to contact our customer service team. Important Safety Information ●Please remember follow regula ons governing your Ubislate7CZ. Always turn off your device whenever its use is forbidden or when it may cause interference or danger (i.e.) hospitals/ aircraft/ petrol stations, etc. -
Page 17: Safely Disposing Of The Device
●Only qualified maintenance personnel are allowed to install or repair the device. ●Please use the original accessories and battery. Do not use incompatible accessories on the device. ●For the sake of data safety, please back up any important information on the device or keep a handwritten record.
