Description

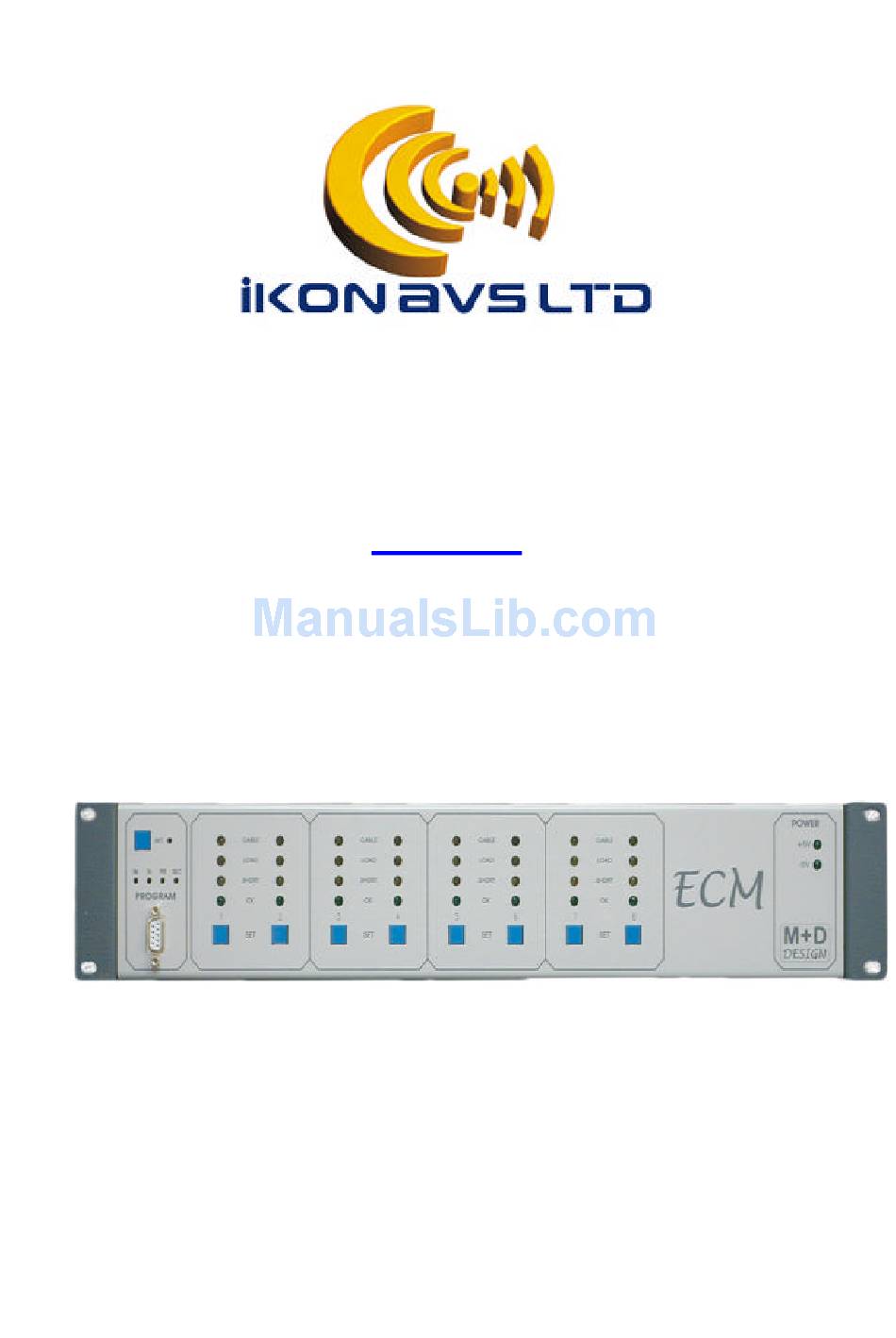

An integral part of the IKON AVS fault monitoring network, the ECM, is designed
to monitor up to eight separate loudspeaker lines using a combination of
methods to cater for virtually all possible contingencies.
The ECM is inserted between the amplifier and loudspeaker circuit. Using a
combination of voltage comparison and current monitoring techniques the system
can be configured for use with low impedance and 100V line systems.
1
Advertisement
Table of Contents
Summary of Contents for iKonavs ECM
-
Page 1: Description
(Eight Channel Monitor) Description An integral part of the IKON AVS fault monitoring network, the ECM, is designed to monitor up to eight separate loudspeaker lines using a combination of methods to cater for virtually all possible contingencies. The ECM is inserted between the amplifier and loudspeaker circuit. Using a combination of voltage comparison and current monitoring techniques the system can be configured for use with low impedance and 100V line systems. -
Page 2: Table Of Contents
