COP-USA CD28IR-IP User Manual

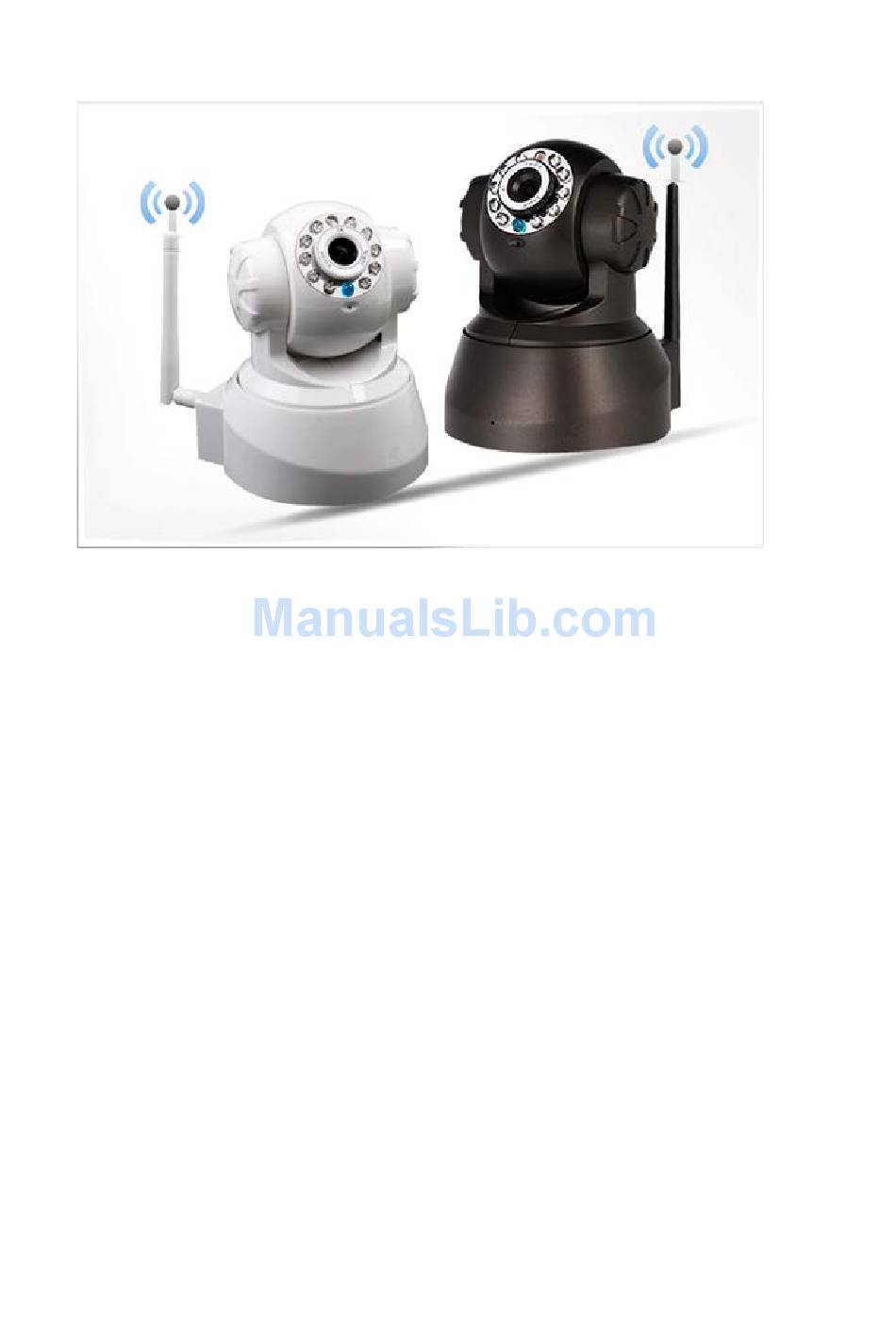

Wireless p2p cellphone camera
Hide thumbs Also See for CD28IR-IP:

Advertisement

Quick Links

Download this manual See also: User Manual
●P2P (peer to peer) technology, without annoying IP settings simply fill out the
ID number can be obtained surveillance video.
●Cellphone view allow you remote viewing from anywhere anytime
●Support iPhone、Android
●Wi-Fi compliant with wireless standards IEEE 802.11b/g;
●Suport Pan/Tilt control up and down,rotation, auto-cruise from different
angles (Pan:355°& Tilt:120°);
●Auto IR-LED illumination for night vision (up to 10 metres);
●Nice blue indicator light ;
●Two-way audio, New voice technology, support cellphone intercom（distance：
20-30m）;
●Two-dimensional code scanning functions.
2.1
1) First: connect the camera with hub, switch or router by Cat.5 straight-through
cable or cross-over cable with standard RJ-45 interface.
2) Second: connect the camera with power supply by the adaptor supplied (DC5V,
2A).
Caution: Please ensure that the adaptor matches with the electricity (Input: AC 110V
Wireless P2P Cellphone Camera

Chapter 1 Features

Chapter 2 Installation

Advertisement

loading
Need help?

Need help?

Do you have a question about the CD28IR-IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for COP-USA CD28IR-IP

Summary of Contents for COP-USA CD28IR-IP

  • Page 1: Chapter 1 Features

    Wireless P2P Cellphone Camera Chapter 1 Features ●P2P (peer to peer) technology, without annoying IP settings simply fill out the ID number can be obtained surveillance video. ●Cellphone view allow you remote viewing from anywhere anytime ●Support iPhone、Android ●Wi-Fi compliant with wireless standards IEEE 802.11b/g; ●Suport Pan/Tilt control up and down,rotation, auto-cruise from different angles (Pan:355°&...
  • Page 2 or 220V, Output: 5V DC/2A). 2.2 Interface Chapter 3 Access from Smartphone 3.1 Smartphone must have a data service（WIFI/GPRS/3G）...
  • Page 3 3.2 Install software on your Smartphone Android：Acquire software from CD. Iphone：Acquire “P2Pipcamera” from App Store. 3.3 Add Camera: “Add Camera” click “+” Enable users to edit camera ID, user's name and password setting and the change of equipment alias . “Scan”Two-dimensional code scanning acquire camera ID.
  • Page 4 3.4 Device list. 3.5 Function：...

  • Page 5: Chapter 4 Pc Software Instruction

    snapshot speaker/mic （can not be open at the same time） birghtness/contrast restore the default resolution : VGA（640×480）QVGA（320×240） ratio cruise Flip /Mirror close touch screen to control PTZ Chapter 4 PC Software Instruction 4.1 Find “DeviceClient.msi” in the CD and run it like below pic.
  • Page 6 Click "Browser" to select setup path(default path "C:\Program Files\object\Device Client "),then click "Next" like below pic. 4.3 Click "Next",then go the below pic.
  • Page 7 4.4 Click "Finish" to end the setup,at the time it will come up this icon in the desktop “ ”. 4.5 Click“System—Device list”...
  • Page 8 4.6 Add a lan camera : Open search tools,click “search” IP acquisition：...
  • Page 9 ① Confirmed that the device is turned on and connected to the network normal. ② LAN or PC support DHCP（Dynamic IP allocation），because the camera's factory settings dynamically IP, LAN or PC does not open DHCP, occurs not search the camera IP. Double click IP address，,then go the below pic，“OK”.
  • Page 10 Device：The names of equipment, which can help you identify different devices, for examples, you can type the names based on the location of the equipment. User：Usually the default is "admin"; Pwd：he default of password is usually as " ", Video：According to the machine model selection（model 5030:mjpeg） P2P：...
  • Page 11 Note：Select the correct video stream ，For example :MJPEG Speaker（For audio ip camera only） Mic（For audio ip camera only） record snapshot...
  • Page 12 4.10 “System—System configuration”. 4.11 Screen：1/4/9/16/25/36/49/64/Full Screen...
  • Page 13 4.12 Function keys Control the PT（For PT ip camera only） cruise（For PT ip camera only） cruise（For PT ip camera only） OSD：Display the camera name and time Flip /Mirror IO closed（For IO ip camera only） IO Open（For IO ip camera only）...
  • Page 14 Chapter 5 camera parameter setting Double-click （Device name）parameter setting 5.1 Base Info Click“Get”Base Info Allas：Device name Device Firmware Device ID Device Alam Status UPNP Status DDNS Status MAC Adress WIFI MAC Adress Click“Get” Display device information 5.2 Time and date...
  • Page 15 Obtain the time from a PC or from the server to get the time, if there is no access to the Internet only get from the PC. click“Submit” Save the settings，click“Get” The new setting is displayed. 5.3 Network Set the subnet mask, gateway, and DNS server; following figure check DHCP, the device can automatically obtain an IP address.
  • Page 16 click“Submit” Save the settings，click“Get” The new setting is displayed. 5.4 User and Password Administrator，Visitor and Operator Administrator：All permissions Visitor：only view the video and switch the screen. Operator：In addition to not enter the interface of the device parameters, have other privileges. click“Submit”...
  • Page 17 If the camera is connected to the Internet, set this function. Sender: input a valid email address to send pictures when alarm triggered; SMTP Server： the website your mail （sender） ;； For example QQmail： smtp.qq.com SMTP Port：the website Port your mail（sender） SMTP User and Password: the user and password of the sender (email account and password).
  • Page 18 Ftp service is used to send the captured pictures when alarm triggered to ftp server and save them. If the camera is not connected to the Internet, there is no need to set this function. FTP Server: the website you want to upload the picture to; FTP Port: 21 FTP User: user name to login ftp server;...
  • Page 19 Rotating speed click“Submit” Save the settings，click“Get” The new setting is displayed. 5.9 Alarm Motion Detect Armed: Moving objects trigger alarm; Motion Detect Sensibility can be selected as 1~10 with sensitivity increasing; Alam preset linkage IO Linkage on Alarm: when alarm triggered, it will link the external device connected with IO port;（For IO ip camera only）...
  • Page 20 set. For details, please refer to “Ftp Service Settings”; click“Submit” Save the settings，click“Get” The new setting is displayed. 5.10 WI-FI setting Please select Wireless Lan Settings and click“Scan”. Then the camera scans the WLAN nearby and lists the results. you can fill in the Keys according to the wireless network settings of your wireless router.
  • Page 21 Chapter 6 Web Use of computers and cameras within a LAN 1) Open the CD 2) copy to desktop double-click the above icon and a dialogue box appears: the IP address of the camera will appear after several seconds later. IP acquisition：...
  • Page 22 6.2 Login Input the URL (for example, http://192.168.2.108：81) or enter the home page by ip camera tool mentioned above. Input the user name and password (default user: admin; no password). Click “OK” and enter the monitoring page (Max. 4 users viewing simultaneously). Language optional: Traditional and Simplified Chinese, English, Russian, Deutsch.
  • Page 23 If it’s the first time a camera being viewed in a PC, .an OCX file needs installing in the PC. Please download OCX file and install it. Next, please refresh the page and login again. 6.4 Function keys...
  • Page 24 Control the PT（For PT ip camera only） cruise（For PT ip camera only） cruise（For PT ip camera only） OSD：Display the camera name and time Flip /Mirror IO closed（For IO ip camera only） IO Open（For IO ip camera only） Mode： 50HZ/60HZ Resolution： VGA（640×480）and QVGA（320×240） Frame rate：1-30 PTZ Speed Brightness...
  • Page 25 ：Record ：Snapshot ：parameter setting...
