Interface

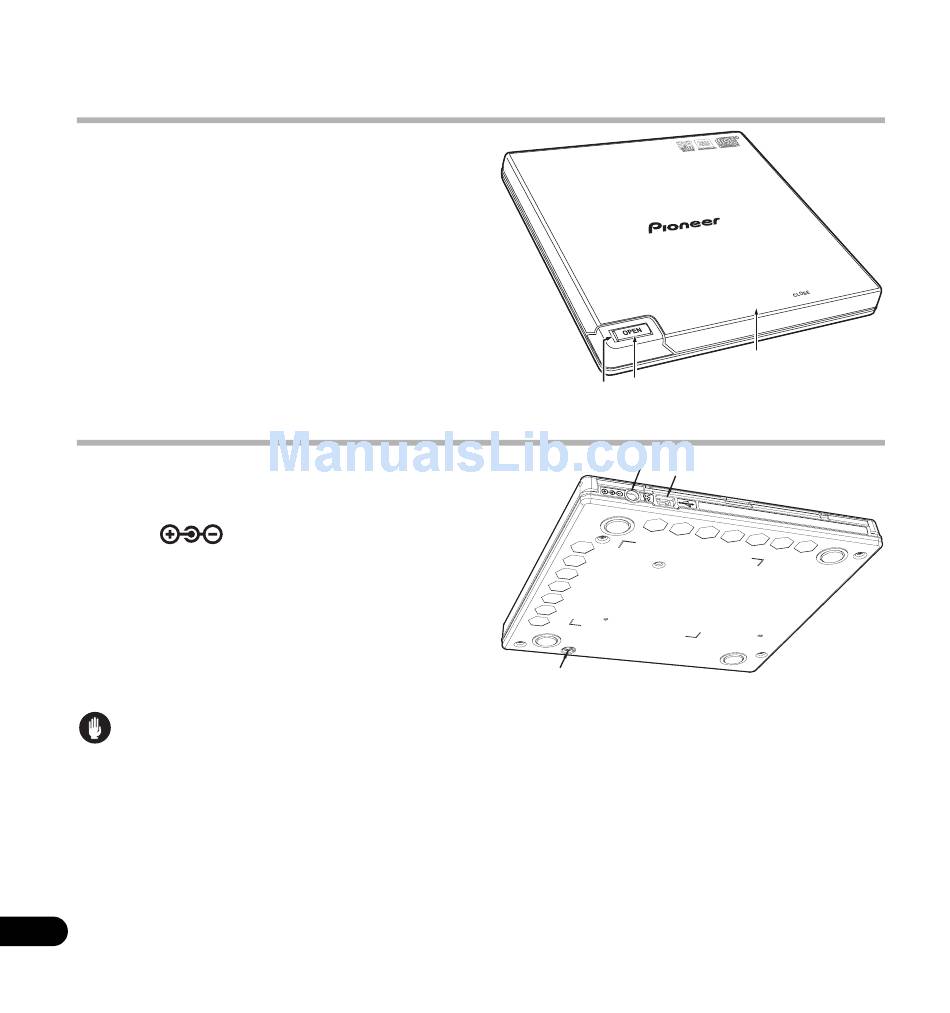

Front/Top view

1
Power/Busy Indicator
Operation status is indicated as follows:
During Power ON: Lights dimly
During reading/writing: Lights
During disc cover open: Lights
2
OPEN Button
Press to open the disc cover.
3
Disc Cover
Press the OPEN button to open the disc cover
then place a CD or DVD disc onto the tray with
the label facing up. Close the disc cover gently.
Do not manually force open the disc cover.
Use the Forced Open Lever to open the disc cover during POWER OFF.
Rear/Bottom view
4
USB 2.0
USB 2.0 Mini-B Connector
5
DC IN
AC Adapter Connector
6
Forced Open Lever
Use to open the disc cover when the drive is not
powered. If the disc cover fails to open when the
OPEN button is pressed, turn the power to the
drive OFF and wait approximately one minute until
the disc stops spinning before trying to open the
disc cover. During normal operation, the OPEN button should be used to open the disc cover.
Caution
About Region codes
• The region code can only be changed five (5) times, including the initial setting. Please be aware
that the fifth change becomes PERMANENT. Therefore, avoid changing the region code unless
absolutely necessary.
• Region codes are part of the DVD Standard. However, region codes on DVD discs are optional. DVD
discs with no specified region code can be played on all compliant players.
8
En
