Summary of Contents for Security Tronix ST-VGA/RCA

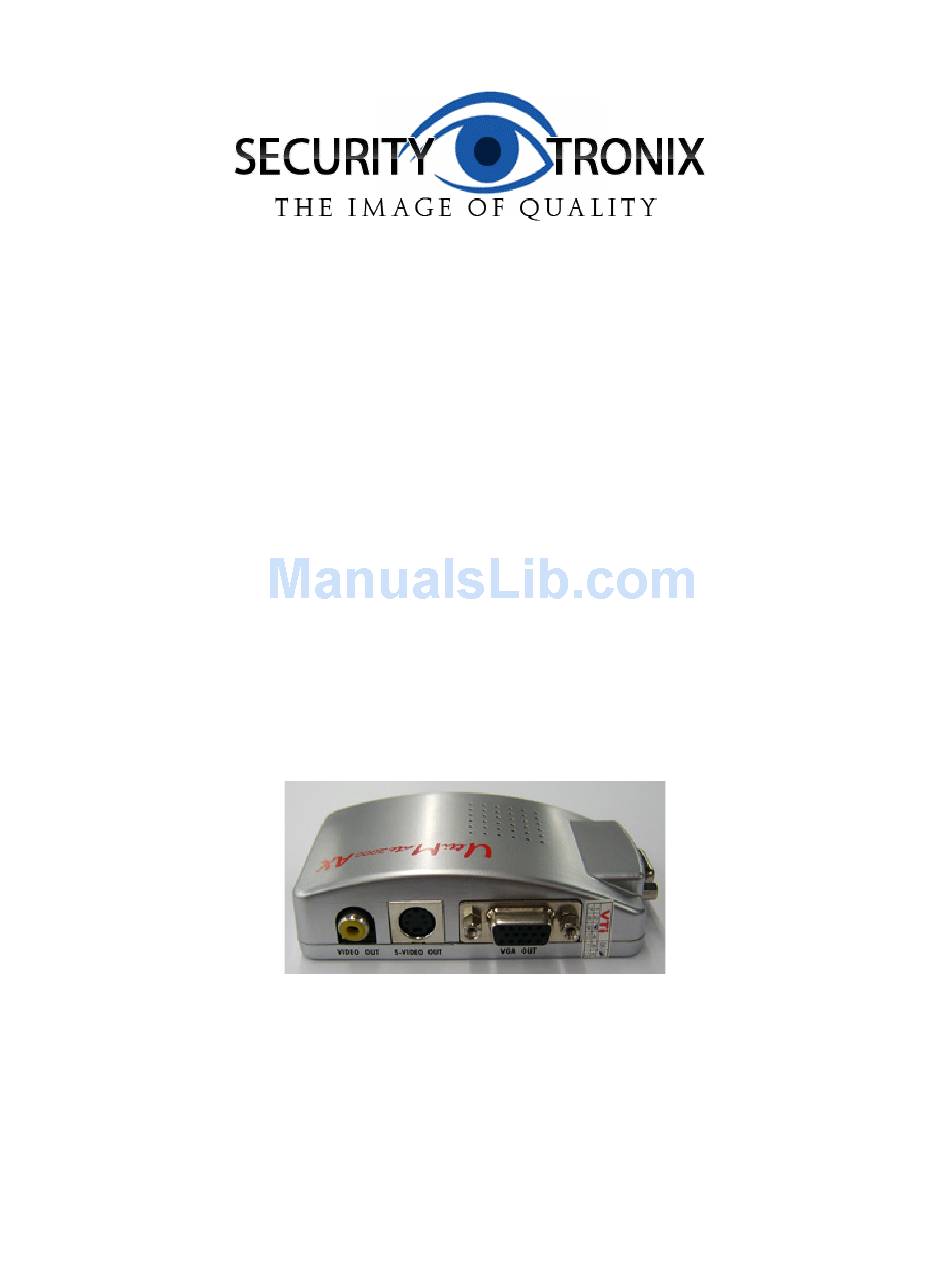

- Page 1 INSTALLATION MANUAL ST-VGA/RCA VGA to Baseband Video Converter...
-
Page 2: Package Contents
Internet TV applications. The unit has 1 RCA, 1 S-Video and 1 VGA output connections and 1 VGA input. As the ST-VGA/RCA is powered by the PC’s USB port no separate power supply or connection is needed. The unit’s 2D flicker filter provides perfect static image quality with a display resolution up to 1024x768. -
Page 3: Installation And Operation
SecurityTronix at 1-610-429-1511 for assistance. 3. WIRING CONNECTIONS a. VGA IN – Using a standard VGA cable connect the ST-VGA/RCA to the PC or laptop’s VGA port. b. Video Output can be achieved in three ways: ... - Page 4 PC VGA Input RCA or S-Video VGA Video Output Output Troubleshooting assistance can be found on-line at www.securitytronix.com in addition to support from SecurityTronix sales engineers at 1-610-429-1511.
