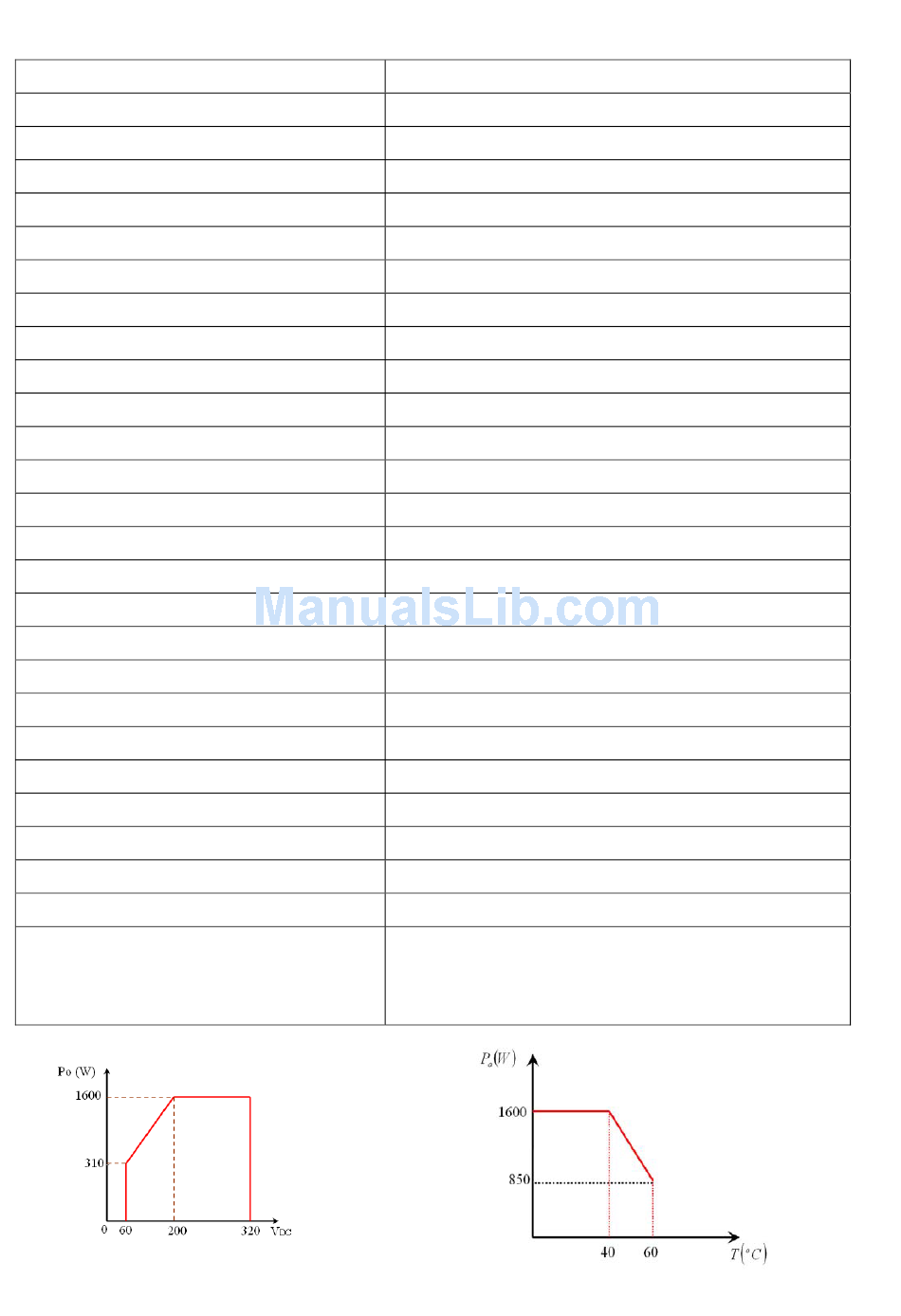

3. Solar power conditioner specifications

Model
Maximum system voltage
Rating input voltage (DC)
Range of operating DC voltage(DC)
Maximum array short circuit current(DC) 10A
Maximum operating current(DC)
Nominal output voltage(AC)
Operating voltage range(AC)
Nominal output frequency(AC)
Operating frequency range(AC)
Maximum continuous output current(AC) 7.6 A
Output over-current protection(AC)
Maximum continuous output power(AC) 1600 W(DC input 200 – 320 VDC)
Power Factor
Total Current Harmonic Distortion
Operating temperature range
Dimensions - without wall mount
Dimensions - with wall mount
inverter weight
Shipping weight
Main Circuit System
Solar power conditioner system
Switching system
Insulation
Electric system
Protection
Grid-connected protection
Fig4. Input voltage for output power curve.
350 V
240 V
60~320 V
8.5A
230 V
210 – 255 V
50 Hz
47 – 53 Hz
10 A
>0.95 ( more than rated output power1/8 )
< 5%
-20 ~ 60 (derating at 40 ~ 60 )
440*348*141 mm
440*348*153 mm
13 kg
18 kg
Voltage stiff current control system
PWM(pulse width modulation)system
Built-in high frequency insulation
1-phase 2-wire system
Input/Output fuses
AC over/under voltage/frequency, AC over current
Anti-islanding
Fig5. Temperature de-rating curve
9
JH-1600E
