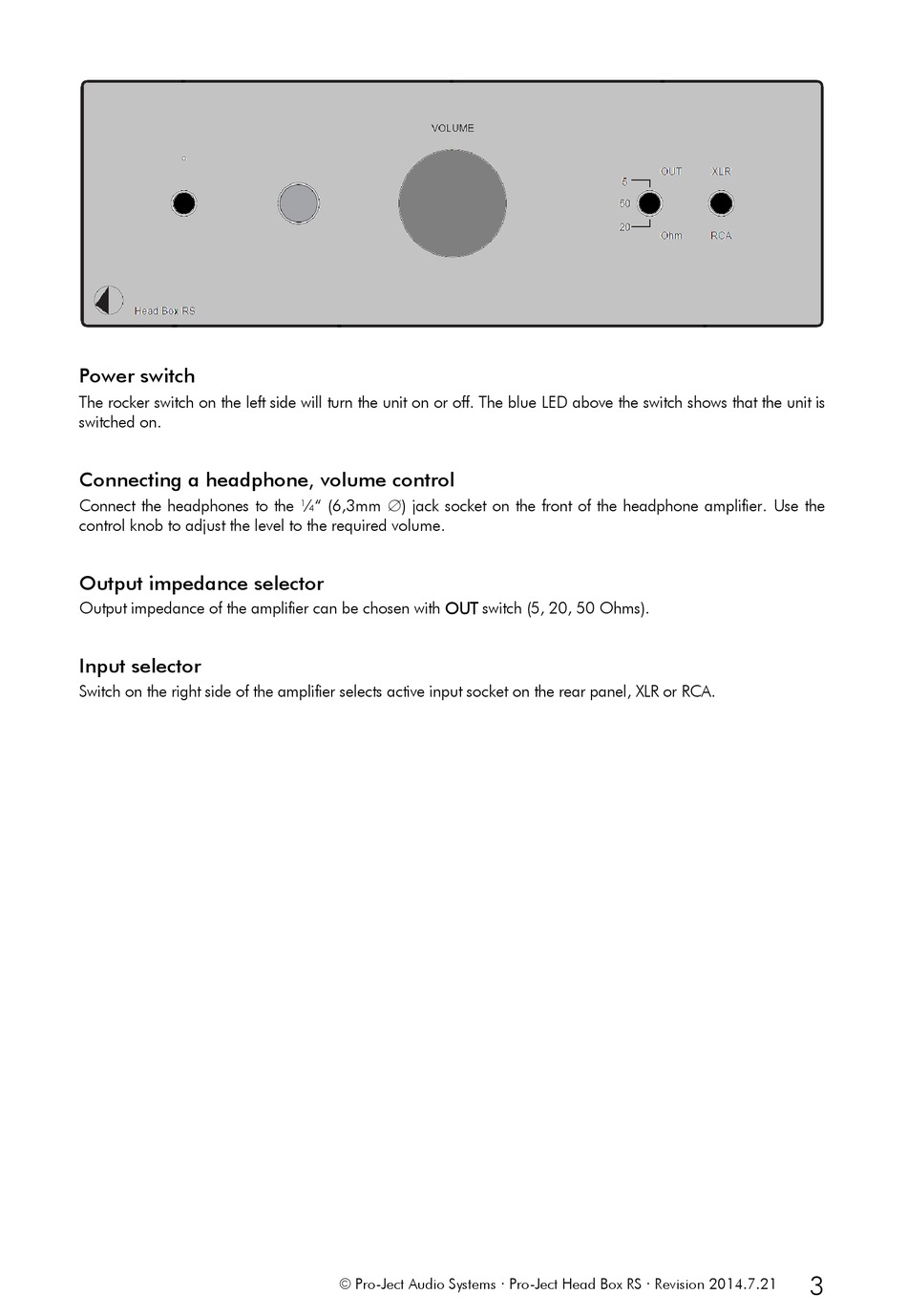

Power switch
The rocker switch on the left side will turn the unit on or off. The blue LED above the switch shows that the unit is
switched on.
Connecting a headphone, volume control
Connect the headphones to the ¼" (6,3mm ) jack socket on the front of the headphone amplifier. Use the
control knob to adjust the level to the required volume.
Output impedance selector
Output impedance of the amplifier can be chosen with OUT switch (5, 20, 50 Ohms).
Input selector
Switch on the right side of the amplifier selects active input socket on the rear panel, XLR or RCA.
3
© Pro-Ject Audio Systems · Pro-Ject Head Box RS · Revision 2014.7.21
