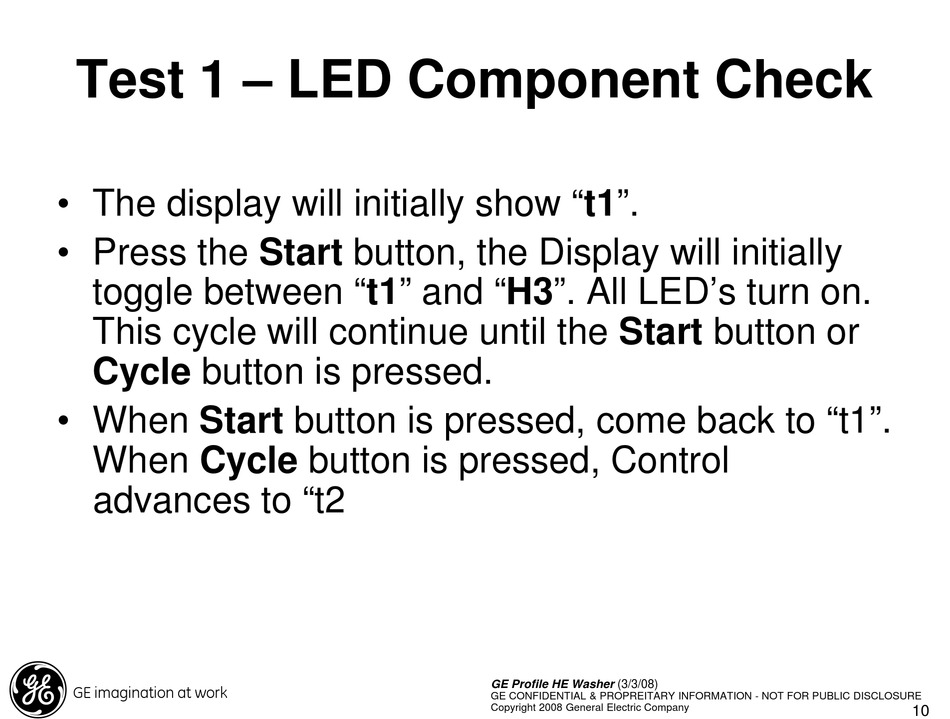

Test 1 – LED Component Check
• The display will initially show "t1".
• Press the Start button, the Display will initially
toggle between "t1" and "H3". All LED's turn on.
This cycle will continue until the Start button or
Cycle button is pressed.
• When Start button is pressed, come back to "t1".
When Cycle button is pressed, Control
advances to "t2
