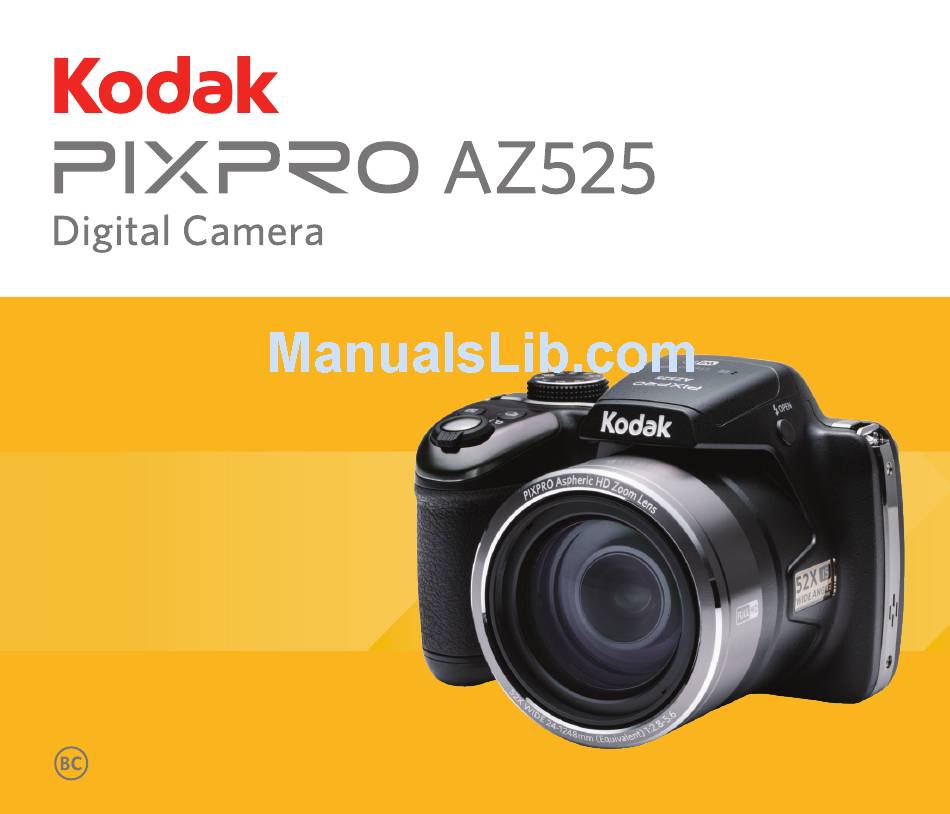

  • Page 1 User Manual...

  • Page 2: Before You Start

    Before You Start Declaration of Conformity Responsible Party: JK Imaging Ltd. Address: 1411 W. 190th Street, Suite 550, Gardena, CA 90248, USA JK Imaging Europe, 71 Clarendon road, Watford, WD17 1DS, UK Company Website: www.kodakpixpro.com INDUSTRY CANADA This device complies with Canadian RSS-210. This device complies with Industry Canada license-exempt RSS standard (s).Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 3 For Customers in Europe This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate collection of electrical waste and electronic equipment in the European countries. Please do not throw the equipment into domestic refuse. Please use the return and collection systems available in your country for proper, safe disposal of this product.
  • Page 4 Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) - EN 300 328 V1.8.1 : 2012 Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems;...
  • Page 5 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 6: About This Manual

    About this Manual Thank you for purchasing the KODAK PIXPRO Digital Camera. Please carefully read this manual and keep it well for future reference. JK Imaging Ltd. reserves all rights of this document. No part of this published manual may be...

  • Page 7: Safety Notes

    Safety Notes Safety notes for this camera Do not drop the camera or allow it to hit When you take the camera from a cold place to a warmer environment, solid objects. condensation may occur. Please wait for a Do not attempt to disassemble or repair the reasonable period of time before you turn it camera.
  • Page 8 Safety notes for battery Please use a battery that is the same type Do not expose the battery to water. Always as the one included. keep the battery contacts dry. Please use the attached charger to charge Do not heat the battery or throw it into a the battery.
  • Page 9 Safety notes for memory card We suggest buying only well-known, When the camera is stored for a long period name brand memory cards to ensure peak of time, be sure to download your photos performance. and remove the memory card. Store it in a dry environment.
  • Page 10 Other Safety Notes Do not disconnect the power or turn the camera off during the update process. Doing so may cause incorrect data to be written and the camera may not power on later. Do not hang the neck strap of the camera around the neck of a child. When using your camera on an airplane, observe the relevant rules specified by the airline.

  • Page 11: Table Of Contents

    Contents Before You Start ......1 Set your Language, Date/Time after the first power-on ...... 24 Safety Notes ........6 Resetting your Language ....25 Resetting Date/Time ......26 Contents .........10 Mode Overview ......27 Getting Ready .......15 Display Setting ..........27 Accessories Included ........15 LCD Display ..........
  • Page 12 Select an appropriate capture mode ..31 Focus Setting ..........54 Auto Mode ..........32 Macro Mode ..........55 Program AE ........... 34 Self-timer Setting ........56 Shutter priority ........34 Flash Mode ........... 57 Aperture priority ........34 White Balance Setting ........ 58 Manual Mode ........
  • Page 13 Playback Mode ......64 OIS (Optical Image Stabilization) ..73 Cont. AF ..........73 Viewing Photos and Videos ....... 64 HDR ............74 Thumbnail View ........... 65 Beautifier ..........74 Using Zoom Playback (for still pictures only) ..........66 Scene ............75 Photos and Video Deletion ......
  • Page 14 Expo Metering ........80 Playback Settings Menu ......89 Movie Size ..........81 Protect ............ 90 OIS (Optical Image Stabilization) ..82 Delete ............. 91 Movie Setting Menu ........83 DPOF (Digital Print Order Format) .. 92 Digital Zoom ......... 84 Trim ............
  • Page 15 Format ............ 97 Using the PictBridge Menu ..... 105 Copy to Card ......... 97 Video System ..........109 File Numbering ........98 Set Eye-Fi SD Card Connection Mode .. 110 Reset ............98 Supported HDMI Connections ....111 FW Version ........... 99 Connecting HDMI-Ready TV ..

  • Page 16: Getting Ready

    Getting Ready Accessories Included Your camera box should contain the camera model you purchased along with the following accessories. If anything is missing or appears to be damaged, please contact your retailer. (The battery charger may be different in shape than what is pictured below. This is due to different power requirements across countries or regions) Rechargeable AC adapter...

  • Page 17: Install Lens Cap And Neck Strap

    Install Lens Cap and Neck Strap...

  • Page 18: Part Names

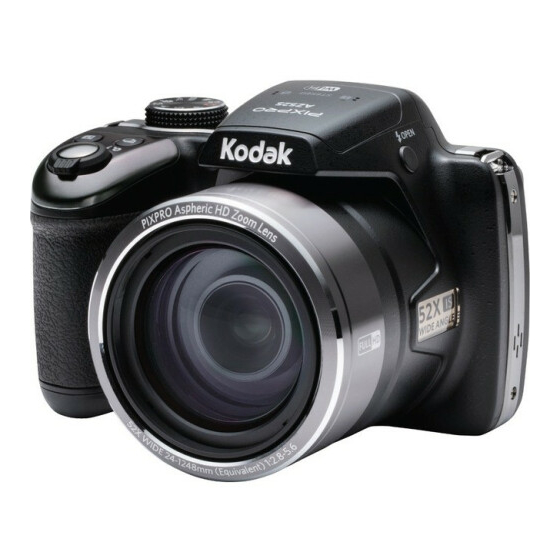

    Part Names 1. Micro HDMI port 2. Micro USB port 3. Zoom lever 4. Shutter button 5. Strap eyelet Exposure compensation button Continuous shot button 8. Power button 9. AF assist beam/Self-timer lamp 10. Flash lamp Lens...
  • Page 19 12. Flash button 13. Microphone 14. Indicator lamp 15. Mode dial Fast video recording button Menu button AF button/Up button Macro button/Left button Flash button/Right button Delete button/Self-timer button/Down button Display button Playback button SET button i button 26. LCD 27.

  • Page 20: Installing Battery And Memory Card

    Installing Battery and Memory Card 1. Open the battery cover according to the 2. Insert the battery into the battery direction of arrow. compartment according to the negative and positive directions as illustrated in the picture. Push the battery down until it locks in place.
  • Page 21 3. Insert the memory card into the memory 4. Close the battery cover. card slot as shown in the diagram. Write protection buckle The memory card (SD/SDHC) is optional and not included in all camera packaging. If you have to purchase a memory card, select one with storage capacity between 4GB and 32GB to ensure correct data storage.

  • Page 22: Charging Battery

    Charging Battery Please insert the battery and charge it under shutdown mode. 1. Connect the camera and the power charger using the supplied Micro USB cable. 2. Insert the plug of the power charger into the power outlet to charge the battery. After the battery is stored for a long period of time, use the supplied power charger to charge the battery prior to use.
  • Page 23 3. When the camera is turned off, you can also connect the camera to your PC using a USB cable to charge the battery. Please charge the battery indoors between 0°C and 40°C.

  • Page 24: Turning Camera On And Off

    Turning Camera On and Off Press the Power button to turn the camera on. To turn the camera off, press the Power button again. Power Button Press and hold the button to power on and enter Playback mode.

  • Page 25: Set Your Language, Date/Time

    Set your Language, Date/Time Set your Language, Date/Time after the first power-on 1. When you turn the camera on for the first time, Language the language selection screen appears. Español 2. Press the Português buttons to select your desired language. Italiano 3.

  • Page 26: Resetting Your Language

    Resetting your Language After you set your language for the first time, follow the instructions below to reset your language. 1. Press the button, press the button to select , and press the button to Sound Settings enter the menu. Power Saver Auto 2.

  • Page 27: Resetting Date/Time

    Resetting Date/Time After you set your Date/Time for the first time, follow the instructions below to reset date and time. 1. Press the button, press the button to select , and press the button to Sound Settings enter the menu. Power Saver Auto 2.

  • Page 28: Mode Overview

    Mode Overview Display Setting Press the button to display the settings: Classic, Full, Off. Classic: Displays the camera parameters on Off: Does not display any additional icons on screen screen 1234 00:56:00 F2.8 1/50 -0.3 Full: Camera parameters with Grid and Histogram 1234 00:56:00...

  • Page 29: Lcd Display

    LCD Display Overview of the screen icons in photo shooting mode 8 White Balance 9 Color Effect Number of remaining shots x3.6 x3.6 Image Size Video Quality ISO Value 1234 Remaining Recording Time 00:56:00 Exposure Compensation F3.6 F3.6 1/50 -0.3 Shutter Speed Histogram Aperture Value...

  • Page 30: Overview Of The Screen Icons In Movie Mode

    Overview of the screen icons in movie mode Color Effect 8 Video Quality 9 Remaining Recording Time x3.6 Exposure Compensation OIS (Optical Image Stabilization) Focus Frame 00:56:00 00:56:00 -0.3 EV Eye-Fi ON (with signal) Expo Metering Movie Mode AF Mode Macro Mode For optimal video shooting, it is Self-timer...

  • Page 31: Overview Of The Screen Icons In Playback Mode

    Overview of the screen icons in playback mode 4 SD Memory Card/Built-in Memory Battery Status 6 Zoom Magnification Area Image Zoom Ratios 8 Image Zone 9 Shooting Date Continuous Capture Group Playback Eye-Fi ON (with signal) Touch-up DPOF File File Protection Date Folder Memory Space (indicating the current number of photos and total number of...

  • Page 32: Using The Mode Dial

    Using the Mode Dial This camera provides a convenient mode dial that allows you to manually switch among different modes with ease. Select an appropriate capture mode 1. Press the Power button to turn the camera on. Aim the camera at the object and then frame with the LCD.

  • Page 33: Auto Mode

    Auto Mode The camera will automatically detect the most suitable scene to capture the best pictures. 00:56:00 Auto Mode The camera will automatically adjust the exposure and focus to ensure the best possible pictures. Landscape Mode For landscapes, will automatically adjust the exposure and reproduce vivid green and blue colors.
  • Page 34 Portrait Mode Most suitable for capturing people with focus on their faces. Night Portrait When you take portraits at night, or in low light conditions, will automatically adjust the exposure for people and night scenes. Backlit Portrait When the sun or any other light source is behind you, will automatically adjust the foreground exposure to produce the best pictures possible.

  • Page 35: Program Ae

    Program AE The user can switch the ISO and EV value according to personal preference, the camera can automatically set the shutter speed and aperture value. Shutter priority The user can adjust the shutter speed, EV and ISO values. It is mostly used to shoot the moving object.
  • Page 36 Mode: Follow the steps below to adjust the parameters: 1. Rotate the mode dial to select a mode you want, press the button to configure settings. F2.8 F2.8 1/50 1/50 0.3 EV 0.3 EV 400 ISO 400 ISO 2. Press the button to select an adjustment item.

  • Page 37: Face Beautifier

    Face Beautifier The camera is set to automatically adjust camera exposure for realistic portrayal of skin tones. 1. Rotate the mode dial to select 2. Press the button and press the button to select 3. Press the button to select an option and press the button to confirm and return to photo shooting mode.

  • Page 38: Wi-Fi Mode

    Wi-Fi Mode Make image transmission and remote control by connecting smart device with Wi-Fi. Matters needing attention before use Please confirm that your smart device is a smart phone with Android 2.3 or 4.x system, a tablet computer with Android 4.x or is an iOS 6/7 system. If not, please upgrade your smart device before using the APP.
  • Page 39 Route of downloading the APP package: Please download APP installation package (APP name: PIXPRO Remote Viewer) to your smart device from the path below and install this application procedure. Android system: iOS system: For Android devices, search and download the For Apple devices, search and download the App “PIXPRO Remote Viewer”...
  • Page 40 1. Rotate the mode dial to select and then enter the Wi-Fi selection interface. Wi-Fi Mode Settings Station AP mode In AP mode, the camera will act as an access point enabling another Wi-Fi device to connect to it. 2. Press the button to select and set options.
  • Page 41 AP mode Settings of Smart Device: This camera may connect with your smart device through Wi-Fi. 2. Enable the Wi-Fi of smart device and then search surrounding wireless devices. Settings of Camera: 3. Select the name of camera SSID to be 1.
  • Page 42 Station Enable image transmission and remote control 3. Press the button to select the by connecting the camera with a Wi-Fi access name of smart device to be connected and then point created by your smart device. press the button to confirm. Then, the camera enters the password input interface.
  • Page 43 Display of Wi-Fi Connection Status The Wi-Fi has successfully connected but APP 4. Press the is not enabled: buttons to select and then press the button to confirm your selection. Enter the Wi-Fi Mode completion of WPA2 PSK after password storage.
  • Page 44 For interrupting the connection: The Wi-Fi of smart device interrupts: Wi-Fi Mode Wi-Fi Mode Disconnect from device? AP mode Disconnected, please check Wi-Fi device and try again. Back • No: Keep Wi-Fi connected and back to • Back: Back to Wi-Fi mode SSID screen. previous page.
  • Page 45 2. Press the button to select the option to be adjusted and then press the DSC Device button to enter the menu. PIXPRO AZ525 DSC Device PIXPRO AZ525 MAC Address 38 67 93 XX XX XX Name between 1-18 Letters...

  • Page 46: Scene Mode

    Scene Mode The user can select an appropriate mode from the 13 scene modes according to the type of environment you are shooting. The camera then configures the most appropriate settings automatically. 1. Rotate the mode dial to select 2. Press the buttons to select a scene, and press the button to confirm.
  • Page 47 Handheld Night Reduce blur when shooting low light/ illuminated scenes. Quickly take 4 photos below 8M (including 8M) and then overlap as a clear night image. Pet Mode Rapidly identify pet (dog/cat), capture the dynamic moment of pet. When a cat /dog face is detected, a white focus frame appears. The camera will take a picture and save it regardless of whether the focus is successful (if successful, there appears a green focus frame;...
  • Page 48 Multi Exposure Suitable for shooting moving objects (as many as 7) in the same background. Keep camera steady before shooting. Press and hold the Shutter button to take 7 photos continuously when it will stop automatically. To stop shooting, release the Shutter button in the midway.
  • Page 49 Portrait For shooting portraits Snow For subjects in the snow. Reduce underexposure. Children For kids and pets. Flash is disabled for eye protection. Party For subjects at night without using a tripod. Capture sharp shots without blur. Panorama Mode This feature allows you to capture a panoramic view that will have significantly more content than a single photograph.
  • Page 50 3. Compose your shot on the LCD and half press the Shutter button to focus on the subject. After focusing, fully press the Shutter button down to take picture. At this time, the process dialog of panorama mode stitching appears on the screen. 4.

  • Page 51: Movie Mode

    Movie Mode Switch to this mode to record videos. Follow the steps below: 1. Rotate the mode dial to select , and it will enter the movie screen. 2. Press the button or the Shutter button to start recording. x3.6 00:00:06 3.

  • Page 52: Custom Settings

    Custom Settings The user can store frequently used shooting modes or scene modes with parameters and switch to this mode for quick adjustment. Settings under mode (unset state or state 3. As shown in the picture, press the after reset): button to confirm setting or to exit without setting by turning the mode dial.
  • Page 53 3. Press the button and then the Custom Settings button to select , and press the button to enter the menu. Reset camera settings to custom settings mode. 4. Press the button to select , and press the button to enter the menu.

  • Page 54: Basic Operation

    Basic Operation Using the Zoom Function Your camera is equipped with two types of zoom functions: Optical Zoom and Digital Zoom. Rotate the Zoom Lever of the camera to zoom in or out of the subject while taking pictures. Zoom Lever When the Optical Zoom reaches the threshold as Digital Zoom, release and turn the Zoom Lever to T to switch between the Optical zoom and Digital zoom.

  • Page 55: Focus Setting

    Focus Setting This function can be adjusted in mode, please follow the steps below to configure the settings: 1. Press the button to enter the Focus menu. Single-AF 2. Press the button to select the following 3 modes: • Single-AF The focus frame appears on the center of the LCD to focus on the subject.

  • Page 56: Macro Mode

    Macro Mode The Macro Setting is ideal for shooting small objects or close-up photos. This mode allows you to focus on subjects very close to the camera. It can be adjusted in mode, please follow the steps below to configure the settings: 1.

  • Page 57: Self-Timer Setting

    Self-timer Setting Using this function can take photos at regular time. The camera can be set to shoot after 2 seconds, 10 seconds since pressing the Shutter button or shoot after smile. It can be adjusted in mode, please follow the steps below to configure the settings: 1.

  • Page 58: Flash Mode

    Flash Mode The Flash is used to illuminate a subject in low light or for fill-in lighting to achieve better illumination of a subject with pronounced shadows. It can be adjusted in mode, please follow the steps below to configure the settings: 1.

  • Page 59: White Balance Setting

    White Balance Setting The white balance function allows adjustment of the color temperature for different light sources. It can be adjusted in mode, please follow the steps below to configure the settings: 1. Press button to enter the White Balance •...

  • Page 60: Continuous Shot

    Continuous Shot This function can be adjusted in mode, please follow the steps below to configure the settings: 1. Press the button to enter the Continuous • Cont.Shot-High Speed (VGA) Shot menu. For continuous shot with VGA pixel. • Cont.Shot-Fast (4M) For continuous shot with 4M pixels.

  • Page 61: Ev Settings

    EV Settings The EV function menu of the camera includes Exposure Compensation functions, such as EV adjustment, ISO Set up to adjust the picture brightness. In adjustment, Shutter adjustment, Aperture the case of a very high contrast between the adjustment, etc. Using the appropriate function photographed object and the background, the settings can improve your pictures.

  • Page 62: Iso

    Shutter Adjustment ISO allows you to set the sensitivity of the For shutter speed, the camera may camera sensor. Please use a higher ISO value automatically set the aperture value in darker places and a lower value in brighter corresponding to the manually set shutter conditions.

  • Page 63: Aperture Adjustment

    Using Quick Recording Aperture Adjustment You can adjust the aperture size value. In shooting mode, press the button to begin Selecting a large aperture opening will recording video. emphasize the point of focus and show a blurry background and foreground. A small aperture opening will keep both the background and main object in clear focus.

  • Page 64: Button Function Menu

    i Button Function Menu The Image Color Setting allows you to select different color effects. It can be adjusted in mode, please follow the steps below to configure the settings: 1. Press the button to select the Image Color Setting Menu. 2.

  • Page 65: Playback Mode

    Playback Mode Viewing Photos and Videos To view photos and videos on the LCD: 1. After pressing the button, the last photo or video clip taken will be displayed on the LCD. 2. Use the button to scroll through the photos or video clips stored in the internal memory or on the memory card.

  • Page 66: Thumbnail View

    Thumbnail View When in Playback Mode, rotate the Zoom Lever counter clockwise to the position to display thumbnail images of the photos and videos on the screen. W Zoom Out T Zoom Out 1. Slide the Zoom Lever to switch between 3x3 and 4x4 thumbnails. 2.

  • Page 67: Using Zoom Playback (For Still Pictures Only)

    Using Zoom Playback (for still pictures only) When playing back photos, you can also use the Zoom Lever to zoom in on the photos 2 to 8 times. 1. Press the button to switch to Playback mode. 2. Press the button to select a picture to be zoomed in.

  • Page 68: Photos And Video Deletion

    Photos and Video Deletion In Playback mode, press the button to delete your photos and videos. To delete photos or videos: 1. Press the button to switch to Playback mode. 2. Press the button to select the photos and videos to be deleted. 3.

  • Page 69: Slideshow

    Slideshow This setting allows you to view all the stored images as a slideshow. 1. Press the button to enter playback screen. 2. Press the button to enter slide option. 3. Press the button to select slideshow playing or「Cancel」to return to the playback screen.

  • Page 70: Continuous Capture Group Playback

    Continuous Capture Group Playback Cont.Shot-High Speed (VGA) and Cont.Shot-Fast (4M) can make continuous capture for group image playback. 1. Press button to enter playback screen. 2. Press the button to select Cont. Group. 3. Press to start playback. 1/45 06-20 06-20 00:00 00:00...

  • Page 71: Animation Panorama Play

    Animation panorama play Panoramic animation playing is to play full size image in accordance with the shooting direction. After playing, it will automatically return to the static screen of panoramic image. 1. Press the button to enter playback screen. 2. Press the button to select animated panoramic photos.

  • Page 72: Using The Menus

    Using the Menus Photo Setup Menu Expo Metering Mode: Use this setting to select the “target” size of the 1. In Photo Shooting Mode, press the camera’s field of view to be metered. button to enter the Photo Setup menu. 2.

  • Page 73: Image Size

    Image Size The size setting refers to the image resolution • Size: Poster printing in pixels. A higher image resolution allows you to print that image in larger sizes without • Size: A3 printing degrading the image quality. • Size: A4 printing •...

  • Page 74: Ois (Optical Image Stabilization)

    OIS (Optical Image Stabilization) Cont. AF This mode can help reduce photo blur caused Enable the continuous AF to be able to by hand shake and low light. continuously focus automatically when taking pictures. • OIS: Off • Cont.AF: Off •...

  • Page 75: Hdr

    Beautifier Use this setting to control wide dynamic Set the effect of the face beautifier mode. image range when taking static pictures. Photos with extreme contrast of bright and dark areas will still maintain distinguishable detail and depth. (Suggest using tripod) •...

  • Page 76: Scene

    Scene Shooting menu in the Photo shooting mode ( O: Optional X: Not optional) Select the scene mode under the SCN mode. Photo Shooting Modes Options Press SET To Select Scene Night Portrait...

  • Page 77: Photo Shooting Settings Menu

    Photo Shooting Settings Menu Mode: 1. Press the button in Photo Shooting mode and press the button to select 2. Press the button to enter the menu. 3. Press the button to select , and press the button to enter the menu.

  • Page 78: Quality

    Quality AF-Assist Beam The Quality Setting can be used to adjust the In a darker environment, AF Assist Beam can image compression ratio. be turned on for better focus. Quality Best AF Assist Beam Fine Normal There are three options for picture quality: Digital Zoom •...

  • Page 79: Date Imprint

    Date Imprint Quick Review Include a Date/Time stamp on the photo This option allows quick review of the photos image. immediately after they are taken. Each photo is displayed on the LCD based on the selected time. Date Date/Time 1 sec Date Imprint 2 sec 3 sec...

  • Page 80: Custom Settings

    Custom Settings Custom Settings stores the current photo mode, select「Custom Settings」 shooting mode or scene mode and its the camera will enter the setting parameters. The stored mode and parameters interface as shown below: are directly invoked in mode. Select one capture mode to define CS . Custom Settings Reset camera settings to custom settings mode.

  • Page 81: Movie Menu

    Movie Menu Expo Metering Mode: 1. Rotate the mode dial to select and press Use this setting to select the “target” size of button to enter the Movie menu. the camera’s field of view to be metered. Expo Metering: AiAE Expo Metering: AiAE 2.

  • Page 82: Movie Size

    Movie Size Set the image resolution used during video recording. • Size: 1080p 30fps • Size: 720p 60fps • Size: 720p 30fps Size: 1080p 30fps • Size: 640x480 30fps • Size: High Speed Movie The speed requirements for reading and writing high image pixel images to SD card are as follows: Image Pixel Frame Recommendation...

  • Page 83: Ois (Optical Image Stabilization)

    OIS (Optical Image Stabilization) This mode can help reduce photo blur caused * The longest recording time is 29 by hand shake and low light. minutes at one time. When recording in higher pixel resolutions for extended periods of time, this can cause the camera to generate heat.

  • Page 84: Movie Setting Menu

    Movie Setting Menu Mode: 1. Rotate the Mode Dial and select to enter the video recording screen. 2. Press the button, press the button to select , and press the button to enter the Movie Setting menu. Press SET To Enter Menu 3.

  • Page 85: Digital Zoom

    Digital Zoom Custom Settings Turn on or off the digital zoom. Custom Settings stores the current movie mode and its parameters. The stored mode and parameters can be invoked directly in mode. Digital Zoom Custom Settings Reset camera settings to custom settings mode.

  • Page 86: Playback Menu

    Playback Menu Playback Mode Mode: Select , and press the button to enter the 1. Press the button to display the settings screen: playback screen and press the button to enter the menu. 2. Press the button to select the item to be set and press the button to enter.

  • Page 87: Hdr

    Touch-up With the HDR function, pictures that are The playback beauty feature allows for overexposed may be corrected to optimize beautification using three individual effects. the highlights and lowlights captured to more Select , and press the button to enter accurately represent the actual scene.

  • Page 88: Rotate

    Rotate Resize You can use this setting to change the This setting allows you to resize a picture to orientation of the picture. a particular resolution and saves it as a new picture. Select , and press the button to enter the settings screen: Select , and press the...

  • Page 89: Color

    Color This setting allows you to change the picture color effect. The file is saved as a new photo and stored in memory together with the original photo. Press the button to enter the settings screen: Cancel There are 19 options available: Cancel Sepia Vignetting...

  • Page 90: Playback Settings Menu

    Playback Settings Menu Mode: 1. Press the button to show the playback screen, press the button, press the button to select , and press the button to enter the menu. 2. Press the button to select , and press the button to enter the menu.

  • Page 91: Protect

    Protect To prevent any pictures or videos from being accidentally erased, use this setting to lock one or all of the files. Protect Date Folder Cont. Group Reset Reset There are 5 options available: • One: Lock the selected photo or video if they are unprotected; unlock the selected photo or video if they are protected.

  • Page 92: Delete

    Delete You can delete one or all photo/video files. Date Folder Delete Cont. Group There are 4 options available: • One: Delete one photo or video. • Date Folder: Delete all photos in the Date Folder. • Cont. Group: Delete all photos in the Cont. Photo Folder. •...

  • Page 93: Dpof (Digital Print Order Format)

    DPOF (Digital Print Order Format) Trim The DPOF feature allows you to compile and The Trim Setting allows you to crop photos select a group of pictures that you would like to and save them as new pictures. print and will save your selection on the memory 1.

  • Page 94: General Settings Menu

    General Settings Menu Mode: 1. Press the button in any mode, press the button to select , and press the button to enter the menu. 2. Press the button to select , and press the button to enter the menu. Sound Settings Power Saver Auto...

  • Page 95: Sound Settings

    Sound Settings Power Saver With this setting you may adjust the sound This setting allows you to save power and get volume. the maximum possible running time for your camera’s batteries. Turn the LCD and camera Press the button to adjust the off automatically after a consecutive period of volume and press the button to confirm our...

  • Page 96: Language

    Language Date/Time Refer to the “Reset your language” section on Refer to the “Reset Date/Time” section on page 25. page 26. Zone LCD Brightness The Zone setting is a useful function for your Use this setting to adjust the brightness of your overseas trips.

  • Page 97: File Settings

    File Settings Mode: 1. Press the button, press the button to select and press the button to enter the menu. 2. Press the button to select and press the button to enter the menu. 3. Press the button to select the item to be set and press the button to enter the menu.

  • Page 98: Format

    Format Copy to Card Please note: formatting enables you to delete Use this setting to copy the files stored in the all contents in the memory card and built-in built-in memory to a memory card. memory, including protected photo and movie files.

  • Page 99: File Numbering

    File Numbering Reset After you take a picture or video clip, the Use this setting to restore the camera to its camera will save it with a sequential number. original default settings. You can use this to reset the file numbering to 1. Reset File Numbering Reset camera settings to factory defaults.

  • Page 100: Fw Version

    FW Version When there is a new firmware version in the Use this setting to view the current camera memory card, select「Yes」to update. firmware version. FW Version FW Version Current Ver:1.XX Current Ver:1.XX New Ver.:2.XX Update Firmware? Cancel Back...

  • Page 101: Connection Settings

    Connection Settings Mode: 1. Press the button, press the button to select and press the button to enter the menu. 2. Press the button to select and press the button to enter the menu. 3. Press the button to select the item to be set and press the button to enter the menu.

  • Page 102: Connecting To A Computer

    Connecting to a Computer You can use the Micro USB cable to connect the camera and copy (transmit) photos to a computer, printer or other device. Setting the USB Mode The camera’s Micro USB port can be set to connect with either a computer or a printer. The following steps will allow you to ensure that the camera is correctly configured to connect with a PC.

  • Page 103: Transferring Files To Your Computer

    Transferring files to your computer The computer will automatically detect the camera as a removable drive. Double-click the My Computer icon on the desktop to locate the removable drive and to copy folders and files in the drive to a directory on your PC as you would copy any typical folder or file. Follow the steps below to connect the camera to a computer.

  • Page 104: Connecting To A Pictbridge Compatible Printer

    Connecting to a PictBridge Compatible Printer PictBridge technology allows printing of the photos saved in the memory card by the printer. To find out if a printer is 2. Press the button to PictBridge compatible, select「Printer」and press the button simply look for the PictBridge to confirm.

  • Page 105: Connecting To Your Printer

    Connecting to your Printer 1. Make sure the printer is turned on. If the camera is not connected to a PictBridge compatible printer, the following error message 2. Connect one end of the supplied Micro USB will appear on the LCD. cable to the Micro USB port on your camera.

  • Page 106: Using The Pictbridge Menu

    Using the PictBridge Menu After setting the USB mode to Printer, the Print (with Date) PictBridge menu will appear. If you have set the date and time on your camera, the date and time will be recorded and PictBridge saved with each photo you take. Print (with Date) 1.
  • Page 107 Print (without Date) 3. Press the button to select Use this setting to print the photos without the number of copies for the currently dates on them. displayed photo. 1. In the PictBridge menu, select「Print (without Date)」and the screen as shown 4.
  • Page 108 Print Index 4. Press the button and the following screen will appear. You can print all photos in the camera via this function. 1. In the PictBridge menu, select「Print Index」and the screen as shown below Print (Without Date) appears. Print Index Cancel 5.
  • Page 109 Print DPOF Images Exit To use DPOF printing, you must select your Select「Exit」to exit the PictBridge menu. At photos for printing using the DPOF settings this time, the message「Remove USB Cable!」 beforehand. See “DPOF” section on page 92. appears on the screen. 1.

  • Page 110: Video System

    Video System You can use the AV cable (which should be purchased separately) to connect the camera and the television for realizing the video output. Connect one end of the AV cable to USB/AV port of the camera; connect the other end to AV-OUT port of the television. Adjust the format of the video output system according to your requirements, and the steps are as follows: 1.

  • Page 111: Set Eye-Fi Sd Card Connection Mode

    Set Eye-Fi SD Card Connection Mode This camera supports the wireless connection for Eye-Fi memory card, Enable Eye-Fi connection by following below steps. 1. Press the button to select「Eye-Fi」and press the button to enter the menu. 2. Press the button to select「On」or「Off」and press the button to confirm.

  • Page 112: Supported Hdmi Connections

    Supported HDMI Connections HDMI (High Definition Multimedia Interface) is a fully digital audio/video transmission interface, through which uncompressed audio and video signals are transmitted. Direct transmission of digital video signals to your TV reduces conversion loss and improves image quality. Connecting HDMI-Ready TV 1.

  • Page 113: Appendices

    Appendices Product Specifications Design and specifications are subject to change without notice. Type 1/2.3”BSI CMOS Image Sensor Effective Pixels 16.35 Megapixels Total Pixels 16.76 Megapixels Focal Length 4.3mm (Wide) — 223.6mm (Tele) 35mm film equivalent 24mm (Wide) — 1248mm (Tele) F number F2.8 (Wide) ~ F5.6 (Tele) Lens...
  • Page 114 (4:3) (3:2) (16:9) 16MP: 4608 X 3456 14MP: 4608 X 3072 12MP: 4608 X 2592 10MP: 3648 X 2736 2MP: 1920 X 1080 Still Image Number of 5MP: 2592 X 1944 Recording 3MP: 2048 X 1536 Pixels 0.3MP: 640 X 480 1920 X 1080 (30fps), 1280 X 720 (60fps/30fps), 640 X 480 (30fps), Movie High-Speed Movie: 640 X 480 (120fps)
  • Page 115 Scan Panorama Up to 360° 3.0 inch (460k Pixels) Image Auto Rotation ISO Sensitivity Auto, ISO100/200/400/800/1600/3200 Single AF, Multi-AF (TTL 25-point), Object Tracking , AF Method Face-Detection Exposure Metering Artificial Intelligence AE (AiAE), Center-Weighted Average, Spot Method (Fixed to Center of Frame), Face AE Exposure Control Method Program AE (AE-Lock Available), Shutter Prior AE, Aperture Prior AE ±3 EV in 1/3 Step Increments Exposure Compensation...
  • Page 116 Internal Memory: Approx. 8MB Recording Media SD/SDHC Card (Up to 32GB Support) [MMC Card Not Supported] PictBridge, ExifPrint Support Multi-Language Support 27 Languages Jacks AV-OUT/USB 2.0 (Micro 5 pin USB), HDMI (Type D) Eye-Fi Support Wi-Fi Yes (802.11b/g/n) Remote Viewfinder Yes (via smart device) Rechargeable Li-ion Battery LB-060, 3.7V 1100mAh, Power...

  • Page 117: Prompts And Warning Messages

    Prompts and Warning Messages Message Description Action Warning! Battery Warning before power off when the Displaying that it will power exhausted. camera battery is exhausted. off after 2 seconds. The lens is jammed or some foreign Lens obstruction, Turn off the camera and object is preventing the lens from Re-start Camera.
  • Page 118 Message Description Action The message disappears after Indicates that you can disconnect the Remove USB Cable! you disconnect the Micro Micro USB cable. USB cable. Failure to connect to your PC, printer, Remove the cable and retry Connection Failed! TV (with HDMI). connection.
  • Page 119 Message Description Action The memory card can’t be identified Card Error ! Normal display. after being formatted. Disappear after 2 seconds When an error occurs in the SD card, the Card is not formatted. and enter the formatting message “Not Formatted” appears. process.
  • Page 120 Message Description Action When you boot, press the shutter button or Exceeded The message will edit the files under playback mode, and the maximum folder end after the camera SD card exceeded the maximum number of number. processing is complete. folders (999), the message appear.

  • Page 121: Troubleshooting

    Troubleshooting Problem Possible Causes Solution The battery has been depleted. Recharge the battery. Camera does not The battery is not inserted turn on Correctly reinstall the battery. correctly. Camera turns off The batteries have been suddenly during Recharge the battery. depleted.
  • Page 122 Problem Possible Causes Solution Using a memory card below Class Use an SD card with write Saving data to memory 4 may result in slower recording Class higher than 4 to card is slow times. improve performance. The SD memory card has been Release the write lock of the locked.
  • Page 123 Licensed Product The Kodak trademark and trade dress are used under license from Kodak. © 2014 by JK Imaging Ltd. All rights reserved. JK Imaging Ltd. 1411 W. 190th Street, Suite 550, Gardena, CA 90248, USA JK Imaging Europe, 71 Clarendon road, Watford, WD17 1DS, UK www.kodakpixpro.com...

Table of Contents

Save PDF
