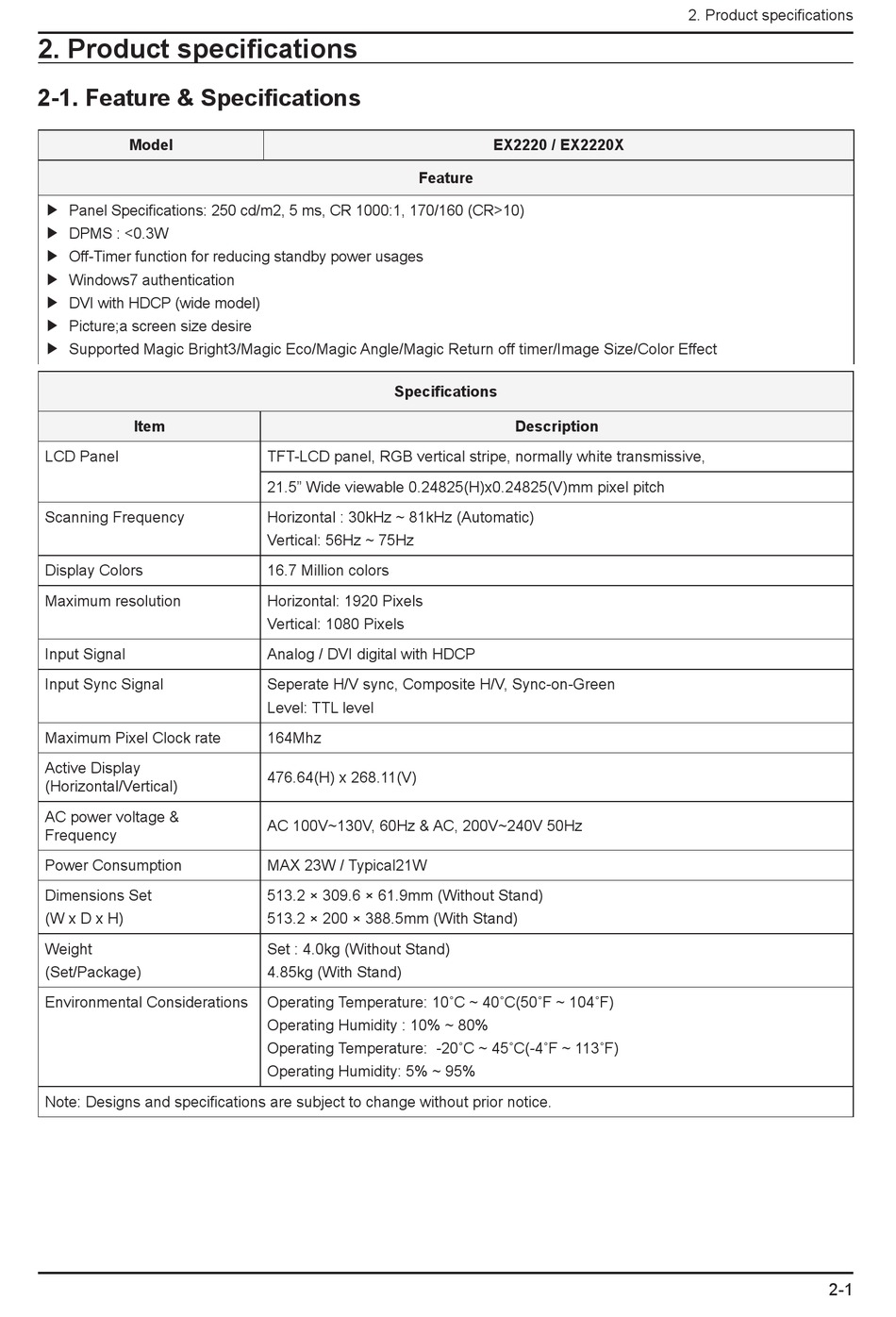

2. Product specifications

2-1. Feature & Specifications
Model
Panel Specifications: 250 cd/m2, 5 ms, CR 1000:1, 170/160 (CR>10)
ሪ
DPMS : <0.3W
ሪ
Off-Timer function for reducing standby power usages
ሪ
Windows7 authentication
ሪ
DVI with HDCP (wide model)
ሪ
Picture;a screen size desire
ሪ
Supported Magic Bright3/Magic Eco/Magic Angle/Magic Return off timer/Image Size/Color Effect
ሪ
Item
LCD Panel
Scanning Frequency
Display Colors
Maximum resolution
Input Signal
Input Sync Signal
Maximum Pixel Clock rate
Active Display
(Horizontal/Vertical)
AC power voltage &
Frequency
Power Consumption
Dimensions Set
(W x D x H)
Weight
(Set/Package)
Environmental Considerations
Note: Designs and specifications are subject to change without prior notice.
Feature
Specifications
TFT-LCD panel, RGB vertical stripe, normally white transmissive,
21.5" Wide viewable 0.24825(H)x0.24825(V)mm pixel pitch
Horizontal : 30kHz ~ 81kHz (Automatic)
Vertical: 56Hz ~ 75Hz
16.7 Million colors
Horizontal: 1920 Pixels
Vertical: 1080 Pixels
Analog / DVI digital with HDCP
Seperate H/V sync, Composite H/V, Sync-on-Green
Level: TTL level
164Mhz
476.64(H) x 268.11(V)
AC 100V~130V, 60Hz & AC, 200V~240V 50Hz
MAX 23W / Typical21W
513.2 × 309.6 × 61.9mm (Without Stand)
513.2 × 200 × 388.5mm (With Stand)
Set : 4.0kg (Without Stand)
4.85kg (With Stand)
Operating Temperature: 10˚C ~ 40˚C(50˚F ~ 104˚F)
Operating Humidity : 10% ~ 80%
Operating Temperature: -20˚C ~ 45˚C(-4˚F ~ 113˚F)
Operating Humidity: 5% ~ 95%
EX2220 / EX2220X
Description
2. Product specifications
2-1
