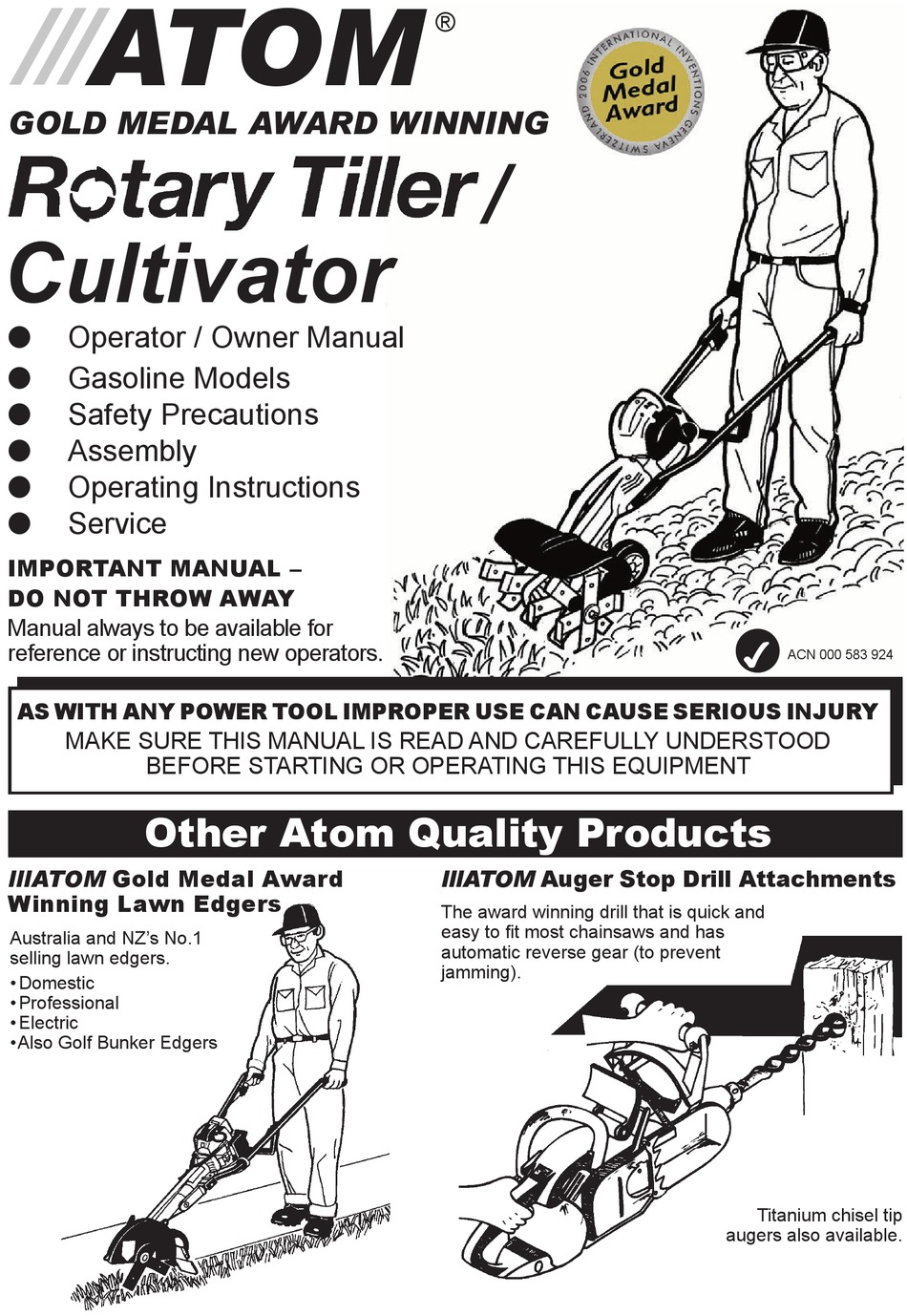

ATOM
GOLD MEDAL AWARD WINNING
Cultivator
Operator / Owner Manual
●
Gasoline Models
●
Safety Precautions
●
Assembly
●

Operating Instructions

●
Service
●
IMPORTANT MANUAL –
DO NOT THROW AWAY
Manual always to be available for
reference or instructing new operators.
AS WITH ANY POWER TOOL IMPROPER USE CAN CAUSE SERIOUS INJURY
MAKE SURE THIS MANUAL IS READ AND CAREFULLY UNDERSTOOD
BEFORE STARTING OR OPERATING THIS EQUIPMENT
Other Atom Quality Products
lllATOM Gold Medal Award
Winning Lawn Edgers
Australia and NZ's No.1
selling lawn edgers.
• Domestic
• Professional
• Electric
• Also Golf Bunker Edgers
®
/
lllATOM Auger Stop Drill Attachments
The award winning drill that is quick and
easy to fit most chainsaws and has
automatic reverse gear (to prevent
jamming).
ACN 000 583 924
Titanium chisel tip
augers also available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gasoline Powered Tiller and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atom Gasoline Powered Tiller

Summary of Contents for Atom Gasoline Powered Tiller

  • Page 1: Operating Instructions

    AS WITH ANY POWER TOOL IMPROPER USE CAN CAUSE SERIOUS INJURY MAKE SURE THIS MANUAL IS READ AND CAREFULLY UNDERSTOOD BEFORE STARTING OR OPERATING THIS EQUIPMENT Other Atom Quality Products lllATOM Gold Medal Award lllATOM Auger Stop Drill Attachments Winning Lawn Edgers The award winning drill that is quick and easy to fit most chainsaws and has...

  • Page 2: Table Of Contents

    Carburettor ..............9 understand the maintenance and safety precautions Adjusting Idle Speed ............9 before using the unit. Contact your Atom dealer or the Lubrication of Gears ............9 Atom distributor in your area if you do not understand Spark Plug ..............10 or cannot carry out any of the operating instructions Remove Engine &...

  • Page 3: Safety Precautions

    (10 feet) from the fueling spot before starting the engine. before operating the machine. Wipe off any spilled fuel before starting your Atom Tiller and check for leakeage. Always use a funel to fill the tank. Prolonged use of any hand-...
  • Page 4 When you pull the starter grip, do NOTE not wrap starter rope around your Store Atom Tiller in a dry, high or locked location and out hand. Do not allow grip to snap of reach of children. back, but guide starter rope slowly back to permit rope to rewind properly.

  • Page 5: Assembling The Tiller

    ASSEMBLING THE lllATOM TILLER FIGURE 7A Insert 175mm(6 ”) bolt #2 thru the head retainer #3 (note arrow points forward) then thru handle tube #1 FIG 7A then thru AV Rubber #12 then thru Tiller body #4, thru AV Rubber #12 and handle #1.

  • Page 6: Starting And Stopping Instructions

    Otherwise allow to stand for 30 minutes before restarting. COMBINATION CULTIVATING, TILLING, ROTARY HOEING The Atom Tiller is very easy and simple to use. It only takes a few minutes to become an efficient user. Thoroughly inspect the area where the tiller is to be...
  • Page 7 Always wear gloves to clean. The cultivator can be transported by pushing it on it’s wheel. Very hard ground, clay or rocky conditions: The Atom Clutch: The Atom Tiller rotary tiller is NOT DESIGNED for very hard ground, hard...

  • Page 8: Troubleshooting

    RH side Fig 21A as shown on top of tine cover. USE ONLY ATOM PATENTED WARNING T i n e s a r e s e l f t i g h t e n i n g , NOTE TILLER TINES.

  • Page 9: Lubrication Of Gears

    MAINTENANCE INSTRUCTIONS (CONTINUED) AIR FILTER MAINTENANCE ADJUSTING IDLE SPEED The idling screw adjustment is accessible without The air filter is one of the most important areas to maintain. removing the air filter cover. See Fig 25A. To increase If it is not maintained, you will void the warranty. Before engine idle speed, turn IDLE SCREW (2) clockwise.

  • Page 10: Spark Plug

    WORKSHOP MANUAL This information is for persons with suitable servicing experience should this unit ever require NOTE workshop repair. CHECKING THE SPARK PLUG FIG 28 If engine is low on power, difficult to start or runs poorly at idling speed, check the spark plug. •...

  • Page 11: Repair To Main Body

    WORKSHOP MANUAL (CONTINUED) DISMANTLING & RE-ASSEMBLING Remove engine (Fig 28). MAIN BODY Remove tine cover (Fig 18A/B). Undo handle nut and remove handles Fig. 7. Remove wheel arm bolt and wheel arm Fig. 29. Remove tines both sides Fig. 21/22, clean shaft and remove all scratches, smooth with emery paper.

  • Page 14: Engine Parts

    26cc KZ Engine Parts List Atom Atom Key # Part # Part # Description Key # Part # Part # Description 63085 T1800-12110 Cylinder 63132 848E4075SO Spring, Return 63086 5500-12213 Gasket, Base 63133 848E4075TO E-Ring 63087 1850-12130 Bolt, M5XL22...

  • Page 15: Furrow Plow

    FITTING FURROW PLOUGH ATTACHMENT After tilling/cultivating is completed, fit furrow plow. Line up hole in plough #17 with hole in wheel arm #14 and place bolt #15 through plough and wheel arm. Tighten with wing nut #6. Set depth of wheel arm at about No.3 or 4 setting. This height may vary according to condition.

  • Page 16: Warranty

    Atom warrants each new Atom Product Model for ONE YEAR Only genuine Atom parts are to be used. Use of non-genuine Atom for home owner use and 90 days for commercial use based parts voids all warranties due to that part not being approved by Atom to Atom’s specifications.
