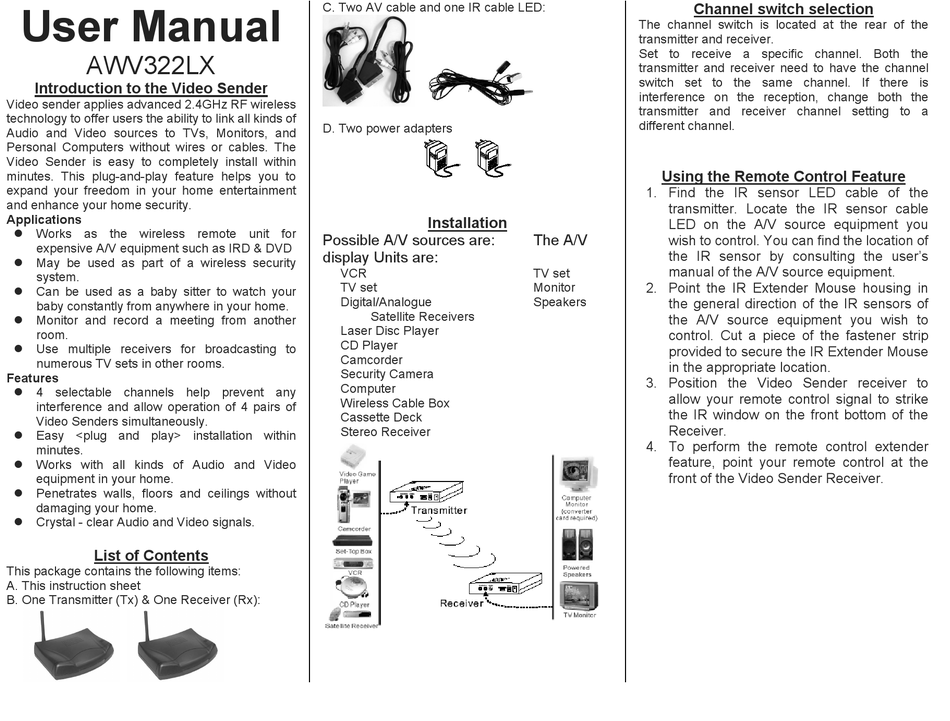

User Manual

AWV322LX

Introduction to the Video Sender

Video sender applies advanced 2.4GHz RF wireless
technology to offer users the ability to link all kinds of
Audio and Video sources to TVs, Monitors, and
Personal Computers without wires or cables. The
Video Sender is easy to completely install within
minutes. This plug-and-play feature helps you to
expand your freedom in your home entertainment
and enhance your home security.

Applications

! Works as the wireless remote unit for
expensive A/V equipment such as IRD & DVD
! May be used as part of a wireless security
system.
! Can be used as a baby sitter to watch your
baby constantly from anywhere in your home.
! Monitor and record a meeting from another
room.
! Use multiple receivers for broadcasting to
numerous TV sets in other rooms.

Features

! 4 selectable channels help prevent any
interference and allow operation of 4 pairs of
Video Senders simultaneously.
! Easy <plug and play> installation within
minutes.
! Works with all kinds of Audio and Video
equipment in your home.
! Penetrates walls, floors and ceilings without
damaging your home.
! Crystal - clear Audio and Video signals.

List of Contents

This package contains the following items:
A. This instruction sheet
B. One Transmitter (Tx) & One Receiver (Rx):
C. Two AV cable and one IR cable LED:
D. Two power adapters

Installation

Possible A/V sources are:
display Units are:
VCR
TV set
Digital/Analogue
Satellite Receivers
Laser Disc Player
CD Player
Camcorder
Security Camera
Computer
Wireless Cable Box
Cassette Deck
Stereo Receiver

Channel switch selection

The channel switch is located at the rear of the
transmitter and receiver.
Set to receive a specific channel. Both the
transmitter and receiver need to have the channel
switch set to the same channel. If there is
interference on the reception, change both the
transmitter and receiver channel setting to a
different channel.

Using the Remote Control Feature

1. Find the IR sensor LED cable of the
transmitter. Locate the IR sensor cable
LED on the A/V source equipment you
The A/V
wish to control. You can find the location of
the IR sensor by consulting the user's
manual of the A/V source equipment.
TV set
Monitor 2. Point the IR Extender Mouse housing in
Speakers
the general direction of the IR sensors of
the A/V source equipment you wish to
control. Cut a piece of the fastener strip
provided to secure the IR Extender Mouse
in the appropriate location.
3. Position the Video Sender receiver to
allow your remote control signal to strike
the IR window on the front bottom of the
Receiver.
4. To perform the remote control extender
feature, point your remote control at the
front of the Video Sender Receiver.
