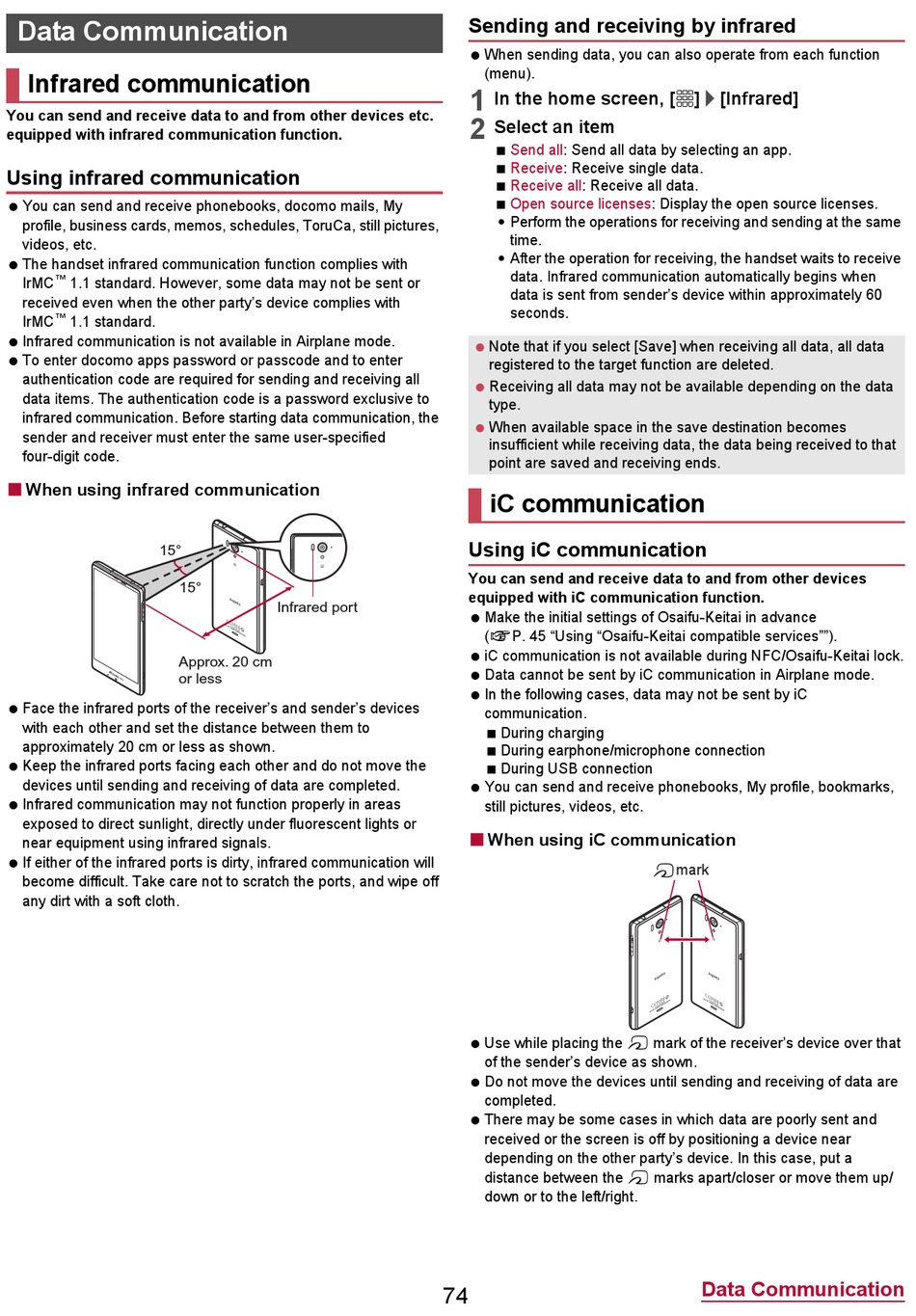

Data Communication; Infrared Communication; Ic Communication; Sending And Receiving By Infrared - Sharp Aquos Zeta SH-04F Instruction Manual

Data Communication

Infrared communication

You can send and receive data to and from other devices etc.
equipped with infrared communication function.

Using infrared communication

You can send and receive phonebooks, docomo mails, My
profile, business cards, memos, schedules, ToruCa, still pictures,
videos, etc.
The handset infrared communication function complies with
™
IrMC 1.1 standard. However, some data may not be sent or
received even when the other party's device complies with
™
IrMC 1.1 standard.
Infrared communication is not available in Airplane mode.
To enter docomo apps password or passcode and to enter
authentication code are required for sending and receiving all
data items. The authentication code is a password exclusive to
infrared communication. Before starting data communication, the
sender and receiver must enter the same user-specified
four-digit code.
When using infrared communication
■
15°
Face the infrared ports of the receiver's and sender's devices
with each other and set the distance between them to
approximately 20 cm or less as shown.
Keep the infrared ports facing each other and do not move the
devices until sending and receiving of data are completed.
Infrared communication may not function properly in areas
exposed to direct sunlight, directly under fluorescent lights or
near equipment using infrared signals.
If either of the infrared ports is dirty, infrared communication will
become difficult. Take care not to scratch the ports, and wipe off
any dirt with a soft cloth.
15°
Infrared port
Approx. 20 cm
or less

Sending and receiving by infrared

When sending data, you can also operate from each function
(menu).
1
In the home screen, [R]/[Infrared]
2
Select an item
Send all: Send all data by selecting an app.
Receive: Receive single data.
Receive all: Receive all data.
Open source licenses: Display the open source licenses.
: Perform the operations for receiving and sending at the same
time.
: After the operation for receiving, the handset waits to receive
data. Infrared communication automatically begins when
data is sent from sender's device within approximately 60
seconds.
Note that if you select [Save] when receiving all data, all data
registered to the target function are deleted.
Receiving all data may not be available depending on the data
type.
When available space in the save destination becomes
insufficient while receiving data, the data being received to that
point are saved and receiving ends.

iC communication

Using iC communication
You can send and receive data to and from other devices
equipped with iC communication function.
Make the initial settings of Osaifu-Keitai in advance
(nP. 45 "Using "Osaifu-Keitai compatible services"").
iC communication is not available during NFC/Osaifu-Keitai lock.
Data cannot be sent by iC communication in Airplane mode.
In the following cases, data may not be sent by iC
communication.
During charging
During earphone/microphone connection
During USB connection
You can send and receive phonebooks, My profile, bookmarks,
still pictures, videos, etc.
■ When using iC communication
Use while placing the a mark of the receiver's device over that
of the sender's device as shown.
Do not move the devices until sending and receiving of data are
completed.
There may be some cases in which data are poorly sent and
received or the screen is off by positioning a device near
depending on the other party's device. In this case, put a
distance between the a marks apart/closer or move them up/
down or to the left/right.
74
mark
Data Communication
