Canyon CNP-WF511N2 User Manual

Wireless n pci adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

CNP-WF511N2
Wireless N PCI Adapter
2.4GHz 11n/g/b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CNP-WF511N2 and is the answer not in the manual?

Questions and answers

Related Manuals for Canyon CNP-WF511N2

Summary of Contents for Canyon CNP-WF511N2

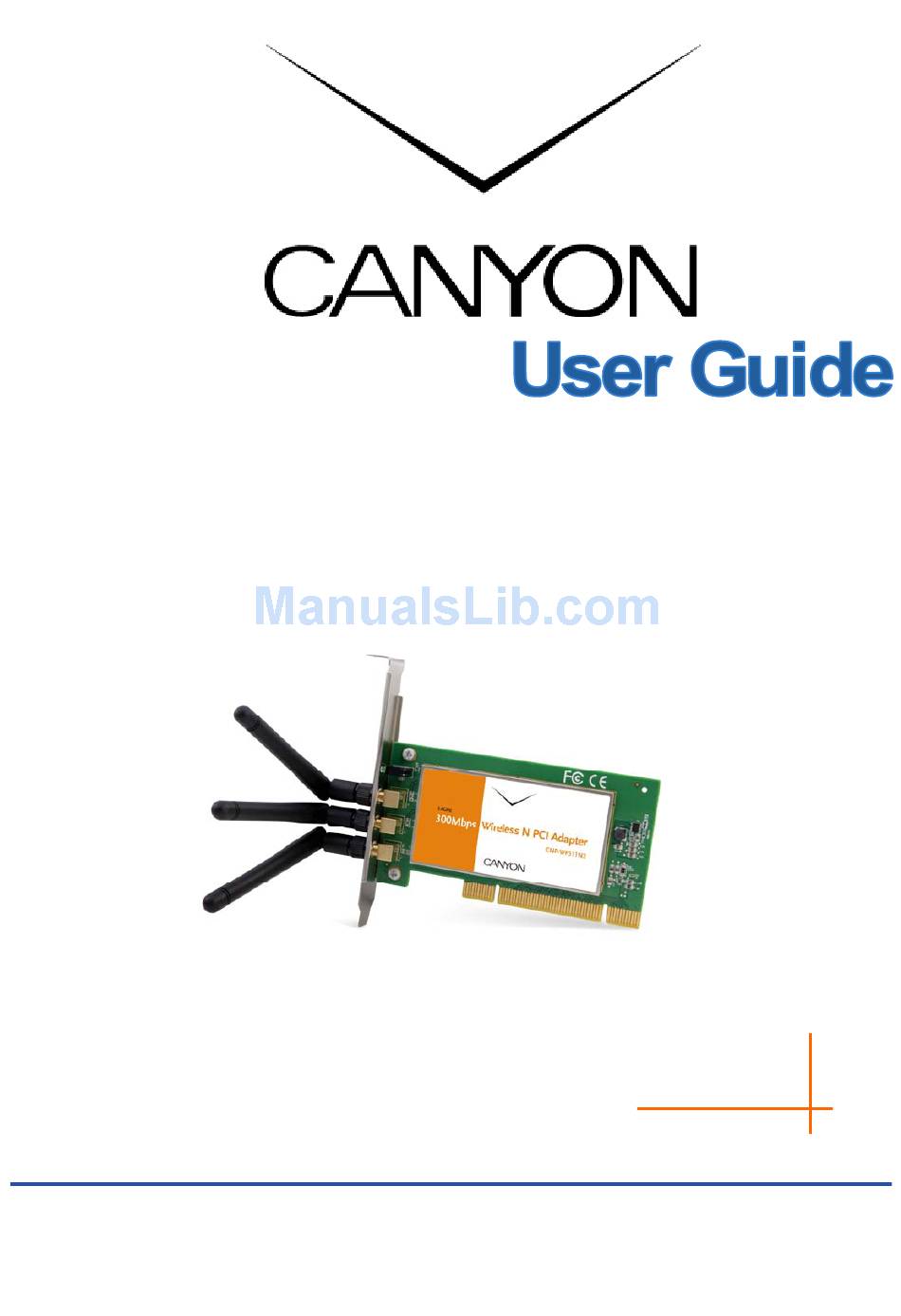

  • Page 1 CNP-WF511N2 Wireless N PCI Adapter 2.4GHz 11n/g/b...

  • Page 2: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3 National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark General authorization required for outdoor use and Bulgaria public service Outdoor use limited to 10 Military Radiolocation use. Refarming of the 2.4 GHz France mW e.i.r.p. within the band band has been ongoing in recent years to allow current 2454-2483.5 MHz relaxed regulation.

  • Page 4: Table Of Contents

    CONTENTS Package Contents ....................1 Chapter 1 Introduction ..................2 Overview of the Product ..................2 Features ......................2 LED Status ......................3 Chapter 2 Installation Guide ................4 Hardware Installation................... 4 Software Installation .................... 4 2.2.1 Overview ....................4 2.2.2 For Windows XP ..................

  • Page 5: Package Contents

    Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. Conventions: The ‘Adapter’ mentioned in this user guide stands for CNP-WF511N2 Wireless N PCI Adapter without any explanations.

  • Page 6: Chapter 1 Introduction

    The adapter is easy to install and manage. The Quick Setup Wizard guides you step-by-step through the installation process; the CANYON Wireless N Client Utility helps you create a wireless connection immediately. With unmatched wireless performance, reception, and security protection, the CNP-WF511N2 is the best choice for easily adding or upgrading wireless connectivity to your notebook computer.

  • Page 7: Led Status

    CNP-WF511N2 Wireless N PCI Adapter 1.3 LED Status LED Indications Status Working Status Status Green The adapter is trying to scan a networking Flashing Alternately connection. Activity Green Status Green The adapter is already connected but is not Intermittently transmitting or receiving data.

  • Page 8: Chapter 2 Installation Guide

    2.2.1 Overview The Adapter’s Setup Wizard will guide you through the Installation procedure for Windows 7, 2000, XP and Vista. The Setup Wizard will install the CNP-WF511N2 Wireless N Client Utility (WF511N2) and drivers. When you install the hardware prior to before installing the software, the system will prompt “Found New Hardware Wizard”, click Cancel, and run the Setup Wizard program on the...
  • Page 9 CNP-WF511N2 Wireless N PCI Adapter Figure 2-1 Soon, Figure 2-2 will display after a moment. Click Next to continue. Figure 2-2 After that, you should choose a Setup type. It is recommended that you select Install Client Utilities and Driver. Select Install Driver Only to install driver only, and select Make Driver Installation Diskette(s) to make the diskette(s) as the installation driver (shown in Figure 2-3).
  • Page 10 CNP-WF511N2 Wireless N PCI Adapter Figure 2-3 Click OK to continue the Installation on the screen below. Figure 2-4 Click Browse to change the destination location for the software, then click Next in the screen below (shown in Figure 2-5).
  • Page 11 CNP-WF511N2 Wireless N PCI Adapter Figure 2-5 After that, select the program folder, you should create a new folder name or select one from the Existing Folders list. It is recommended that you keep the default setting. Click Next to continue the installation.
  • Page 12 CNP-WF511N2 Wireless N PCI Adapter Figure 2-7 Wait a while for the setup as shown in Figure 2-8. Figure 2-8...
  • Page 13 CNP-WF511N2 Wireless N PCI Adapter Note: For Windows XP, the Setup Wizard will notify you of how to proceed with the installation during these steps (shown in Figure 2-9). Our drivers have been tested thoroughly, and are able to work with the operating system. Click Continue Anyway to continue the Installation.

  • Page 14: For Windows Vista

    CNP-WF511N2 Wireless N PCI Adapter Figure 2-11 2.2.3 For Windows Vista Insert the Resource CD into your CD-ROM drive, and open the folder with the same name as your product. Then double-click Setup.exe in the proper folder according to your operating system to start the installation.
  • Page 15 CNP-WF511N2 Wireless N PCI Adapter Soon, Figure 2-13 will display after a moment. Click Next to continue. Figure 2-13 Click Yes to continue. Figure 2-14 The following page will display and please wait a moment.
  • Page 16 CNP-WF511N2 Wireless N PCI Adapter Figure 2-15 Note: For Windows Vista, the Setup Wizard will notify you of how to proceed with the installation during these steps (shown in Figure 2-16). Our drivers have been tested thoroughly, and are able to work with the operating system. Click Install this driver software anyway to continue the Installation.

  • Page 17: For Windows 7

    CNP-WF511N2 Wireless N PCI Adapter Figure 2-17 2.2.4 For Windows 7 Insert the Resource CD into your CD-ROM drive, and open the folder with the same name as your product. Then double-click Setup.exe in the proper folder according to your operating system to start the installation.
  • Page 18 CNP-WF511N2 Wireless N PCI Adapter Figure 2-18 Soon, Figure 2-19 will display after a moment. Click Next to continue. Figure 2-19 Click Yes to continue. Figure 2-20 Wait a while for the setup as shown in Figure 2-21.
  • Page 19 CNP-WF511N2 Wireless N PCI Adapter Figure 2-21 Note: For Windows 7, the Setup Wizard will notify you about the Windows Security with the installation during these steps (shown in Figure 2-22). Our drivers have been tested thoroughly, and are able to work with the operating system.
  • Page 20 CNP-WF511N2 Wireless N PCI Adapter Figure 2-23...

  • Page 21: Chapter 3 Configuration

    Chapter 3 Configuration 3.1 For Windows XP CANYON CNP-WF511N2 can be configured by CANYON Wireless N Client Utility (WF511N2). This chapter describes how to configure your Adapter for wireless connectivity on your Wireless Local Area Network (WLAN) and use the data security encryption features.

  • Page 22: Profile Management

    CNP-WF511N2 Wireless N PCI Adapter Figure 3-1 The following table describes the items found on the Current Status screen. Profile Name - This shows the name of current selected configuration profile. The configuration of Profile name will be described on the General tab of Profile Management.
  • Page 23 CNP-WF511N2 Wireless N PCI Adapter Figure 3-2). The Profile Management screen provides tools to: Add a new profile Modify a profile Remove a profile Activate a Profile Import a Profile Export a Profile Scan Available Networks Order profiles Figure 3-2 3.1.2.1.
  • Page 24 CNP-WF511N2 Wireless N PCI Adapter Figure 3-3 Edit the Security tab Select the Security tab in the screen above, and then you can edit the fields to configure the profile. To define the security mode, select the radio button of the desired security mode as follows.
  • Page 25 CNP-WF511N2 Wireless N PCI Adapter WPA/WPA2: Wi-Fi Protected Access WPA/WPA2 Passphrase: Wi-Fi Protected Access Passphrase 802.1x: Enables 802.1x security. Pre-Shared Key (Static WEP): Enables the use of shared keys that are defined on both the access point and the station. To define shared encryption keys, choose the Shared Key radio button and click Configure to fill in the Define Shared Keys window (shown in Figure 3-5).
  • Page 26 • Ad-Hoc - Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each computer, such as two or more CNP-WF511N2 wireless adapters. Note: An Infrastructure network contains an Access Point or wireless router. All the wireless devices or clients will connect to the wireless router or access point.
  • Page 27 CNP-WF511N2 Wireless N PCI Adapter Adapter uses. The channels available depend on the regulatory domain. If the adapter finds no other ad hoc adapters, the channel that the adapter starts the ad hoc network with will be selected automatically. The Adapter must match the wireless mode and channel of the clients it associates.
  • Page 28 CNP-WF511N2 Wireless N PCI Adapter 3.1.2.4. Export a Profile From the Profile Management screen (shown in Figure 3-2), highlight the profile to export. Click Export…, the Export Profile window will then appear below. Browse the directory to export the profile to.
  • Page 29 CNP-WF511N2 Wireless N PCI Adapter 3.1.2.6. Scan Available Networks Click Scan on the Profile Management screen (shown in Figure 3-2), the Available Infrastructure and Ad Hoc Networks window will appear below. Click Refresh to refresh the list at any time.

  • Page 30: Diagnostics

    If the connection fails, the client adapter will try the next highest priority profile that matches the SSID until an available network is found. 3.1.3 Diagnostics The Diagnostics tab of the CANYON Wireless N Client Utility (WF511N2) provides buttons used to retrieve receiving and transmitting statistics. The Diagnostics tab does not require any configuration.
  • Page 31 CNP-WF511N2 Wireless N PCI Adapter Unicast frames transmitted and received Total bytes transmitted and received Figure 3-12 3.1.3.1. Check Driver Information Click the Adapter Information button in the screen above, you will see the adapter information, including general information about the wireless network adapter and the Network Driver Interface Specification (NDIS) driver.

  • Page 32: For Windows Vista

    CNP-WF511N2 Wireless N PCI Adapter Figure 3-13 3.2 For Windows Vista After the Adapter's driver has been installed, Windows Vista will display a wireless Network Connection message like this one. Figure 3-14 Icon means the connection has been established. Icon means there is no connection.
  • Page 33 CNP-WF511N2 Wireless N PCI Adapter Figure 3-15 The following screen will show you available wireless networks. Highlight the one you want to join, and then click Connect. Figure 3-16 To continue, click Connect Anyway. Click the Cancel button to end the connection.

  • Page 34: For Windows 7

    CNP-WF511N2 Wireless N PCI Adapter Figure 3-17 If the connection is successful established, the following screen will appear, click close to finish the connection. Figure 3-18 3.3 For Windows 7 After the Adapter's driver has been installed, we have to use Windows WLAN Autoconfig to establish a connection.
  • Page 35 CNP-WF511N2 Wireless N PCI Adapter Figure 3-19 If your wireless network is secured, you will be required to enter the security key as shown in Figure 3-20. Enter the passphrase, take 1234567890 for example. And then click OK. Figure 3-20...
  • Page 36 CNP-WF511N2 Wireless N PCI Adapter If the key entered is correct, you will successfully connect to the network as shown in Figure 3-21. Figure 3-21 Connecting...

  • Page 37: Chapter 4 Wps Configuration

    CNP-WF511N2 Wireless N PCI Adapter Chapter 4 WPS Configuration WPS (Wi-Fi Protected Setup) function allows you to add a new wireless device to an existing network quickly. If the wireless card supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless card and router using either Push Button Configuration (PBC) method or PIN method.
  • Page 38 CNP-WF511N2 Wireless N PCI Adapter button on my access point in the next screen shown in Figure 4-4 and click Next. Figure 4-3 Figure 4-4 Then wait a minute until Figure 4-5 appears. Click Finish to complete the WPS configuration.

  • Page 39: Pin Method

    CNP-WF511N2 Wireless N PCI Adapter Figure 4-5 4.2 PIN method There are two ways to configure the WPS by PIN method: Enter a PIN into your AP device. Enter the PIN from your AP device. Following are the detailed configuration procedure of each way.

  • Page 40: Enter The Pin From Your Ap Device

    CNP-WF511N2 Wireless N PCI Adapter Figure 4-6 Open the Router’s Web-based Utility and click WPS link on the left of the main menu. Then Figure 4-7 will appear. Figure 4-7 Click Add device, then you can see Figure 4-8. Select Enter the new device’s PIN and enter the PIN value of the adapter shown in Figure 4-8, click Connect.
  • Page 41 CNP-WF511N2 Wireless N PCI Adapter will appear. Select the third option and enter the PIN value which is labeled on the bottom of the Router. Click Next. Figure 4-9 When Figure 4-5 appears, the WPS configuration is complete. Note: If you generate a new PIN code for your Router, please enter the new one instead.

  • Page 42: Appendix A: Specifications

    CNP-WF511N2 Wireless N PCI Adapter Appendix A: Specifications Normal Interface 32 bit PCI Interface Standards IEEE802.11n; IEEE802.11g; IEEE802.11b; Operating System Windows 7, 2000, XP, Vista Throughput 300Mbps (Maximal) 27/54/81/108/162/216/243/270Mbps 13.5/27/40.5/54/81/108/121.5/135Mbps Radio Data Rate 13/26/39/52/78/104/117/130Mbps 6.5/13/19.5/26/39/52/58.5/65Mbps 1/2/5.5/11Mbps (Auto Rate Sensing) 11b:CCK,QPSK,BPSK;...

  • Page 43: Appendix B: Glossary

    CNP-WF511N2 Wireless N PCI Adapter Appendix B: Glossary 802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks.
  • Page 44 CNP-WF511N2 Wireless N PCI Adapter developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast.
