DiscreteHeat ThermaSkirt Installation Instructions Manual

A N E C O
These instructions are intended as a guide only. Your installation & design may vary - if in doubt ask for help.
If you have any tips or suggestions e-mail them to: toptips@discreteheat.co.uk
Your ThermaSkirt system must be cleansed and protected by a corrosion inhibitor suitable for alluminium
radiators, as required by BS 7593:2006 'Code of Practice for treatment of water in domestic hot central heating
systems'. DiscreteHeat recommends our own TS3 Cleanser and TS5 Inhibitor or Scalemaster CM5 or CM10.
FAILURE TO PROTECT YOUR SYSTEM WILL INVALIDATE YOUR WARRANTY
TOOLS YOU WILL NEED:
A suitable metal cutting saw, preferably a chop saw (only if cutting lengths on site) / A DiscreteHeat rotary de-burring tool / An accurate
quality tape measure (Black & Decker, DeWalt etc.) / String line and chalk or laser level / A Stanley/sharp knife and/or plasterboard saw /
Power drill with hammer action / Power driver / Size 10 screws (50-100mm) / Plastic or timber faced mallet / Rawlplugs and\or plaster-
board fixings / Pipe cutting tool (15mm/16mm) / Various push fit connectors / Your plan and cutting list (if purchased as a room kit).
THE SAME DIMENSIONS AND SPACINGS APPLY TO ANTI-CLOCKWISE INSTALLATIONS.
DO'S AND DON'TS:
DO Carefully check you have all the parts required by your design systems before you start cutting.
DO Check all skirting measurements twice before cutting: see diagram on page 2 (unless provided pre-cut).
DO Ensure that you use the templates (pages 9 - 12) to get your pipes correctly positioned.
DON'T Forget to check the orientation and quantity of retaining clips for each connection and fitting before you insert into skirting - it varies!
DON'T Forget that the FEED and RETURN pipes need to be tight to the wall to ensure your covers fit correctly.
DON'T Forget that aluminium expands (by about 1mm per metre), so make sure the ends of the skirting are not hard up against
any fixed features.

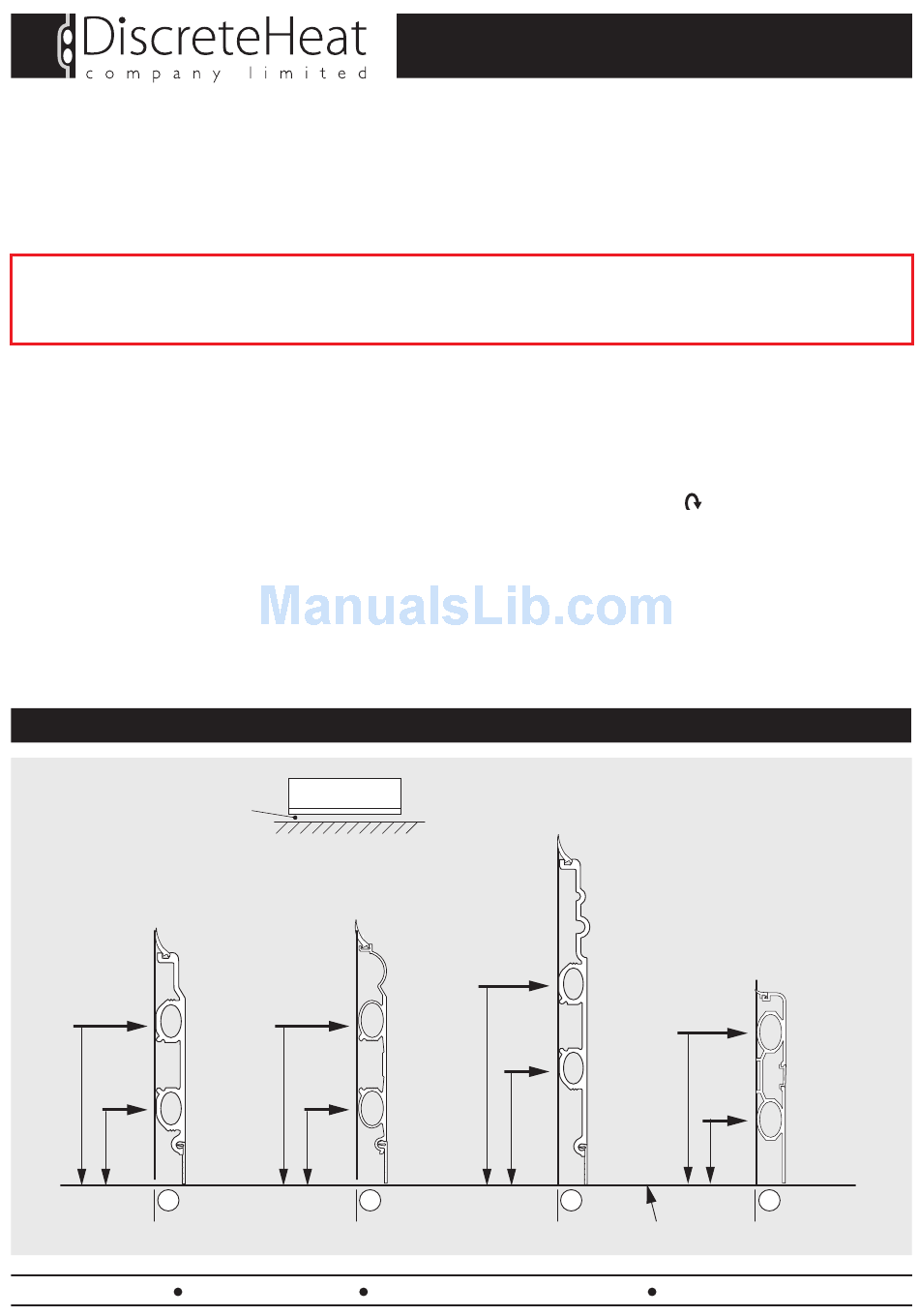

1 . P O S I T I O N F E E D P I P E S
Remember to allow
for carpet or tiles if
NOT Finished Floor Level
URBAN LT
(6in / 150mm)
100mm
45mm
Tel: 0845 1238367
TM
ThermaSkirt
R E V O L U T I O N
DiscreteHeat Co. Ltd. accept no liability for any errors or omissions.
ALL EXAMPLES SHOWN ARE CLOCKWISE/RH INSTALLATIONS.
CLASSIC TS
(6in / 150mm)
FLOW
15/16mm
100mm
RETURN
15/16mm
45mm
Fax: 01942 665104 e-mail: info@discreteheat.co.uk web: www.discreteheat.co.uk
I N S T A L L AT I O N
ISSUE 22 / January 2014 (Download further/latest copies at www.discreteheat.co.uk/technical.html)
I N R O O M
REGENCY OG
(8in / 200mm)
FLOW
15/16mm 130mm
RETURN
15/16mm
75mm
®
H E A T I N G
DECO PR/BM
(4.5in / 115mm)
FLOW
15/16mm
RETURN
90mm
15/16mm
35mm
FINISHED FLOOR LEVEL
Page 1
FLOW
15/16mm
RETURN
15/16mm
