Quick Reference Guide (rev 5.00)
DC-390U2B/W SCSI Adapter
INTRODUCTION
The DC-390U2B/W is an Ultra2 SCSI (Small Computer System Interface) bus to PCI bus
host adapter, which complies to the PCI 2.1 specification with Plug-&-Play (PnP) readiness.
Installing this adapter in your PCI system allows connection of up to 15 SCSI devices.
Your DC-390U2B/W is a 16-bit, Low Voltage Differential (LVD) / Single Ended (SE)
SCSI solution for your computer. It can support both legacy Fast SCSI and Ultra SCSI
devices, as well as the newest LVD Ultra2 SCSI devices.
The DC-390U2B/W supports ASPI (Advanced SCSI Programming Interface) managers for
most of the operating systems available today to assure operation with popular third party
applications.
Device drivers are also supported for the major operating systems for compatibility with a
full range of SCSI peripherals including CD-ROMs, Photo CDs, tape backups, scanners,
removable media and SCSI hard drives.
HARDWARE INSTALLATION

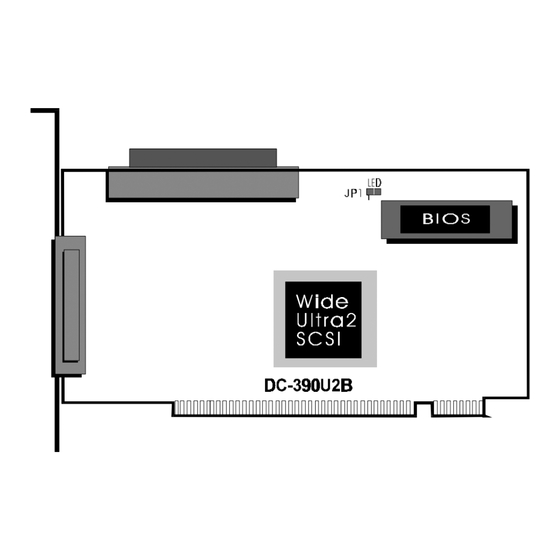

Board Layout
DC-390U2B
Wide Ultra2 SCSI adapter
1
Tekram Technology Co., Ltd
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tekram Technology DC-390U2B/W
Summary of Contents for Tekram Technology DC-390U2B/W
-
Page 1: Hardware Installation
DC-390U2B/W SCSI Adapter INTRODUCTION The DC-390U2B/W is an Ultra2 SCSI (Small Computer System Interface) bus to PCI bus host adapter, which complies to the PCI 2.1 specification with Plug-&-Play (PnP) readiness. Installing this adapter in your PCI system allows connection of up to 15 SCSI devices. -
Page 2: Installing The Adapter
DC-390U2B/W SCSI Adapter Quick Reference Guide (rev 5.00) DC-390U2W Wide Ultra2 SCSI adapter Installing the Adapter Important: Handle circuit boards by the edges or bracket. Touch the bare metal of your computer case before handling any circuit boards to prevent static discharge damage. -
Page 3: Connecting The Scsi Peripherals
SCAM support. SCSI Device Activity LED Indicator (JP1) JP1 is used to indicate activity of the SCSI devices controlled by the DC-390U2B/W, and should be connected to the cable leading to the Hard Drive LED on the front panel of your computer case. -
Page 4: Driver Installation
In order to stabilize the SCSI bus, only two sets of terminators can be installed - one at each end of the SCSI bus. The DC-390U2B/W itself is equipped with Active Terminators that automatically switch from Enabled to Disabled or vice versa by scanning the devices connected on the SCSI bus.
