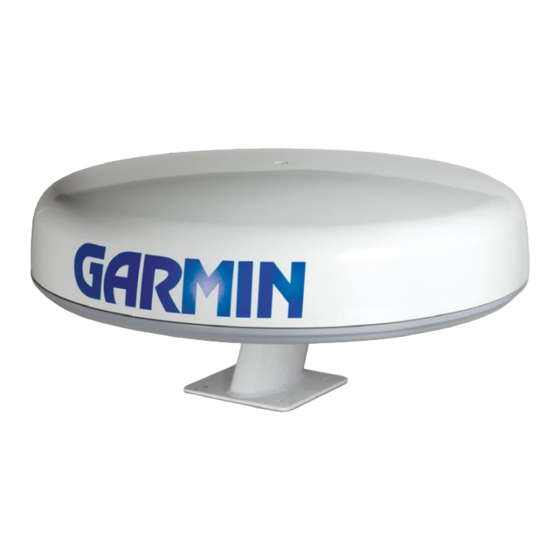

Garmin GMR 20 Installation Manual
Hide thumbs Also See for GMR 20:

Advertisement

GMR 20/40
marine radar
installation guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMR 20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Garmin GMR 20

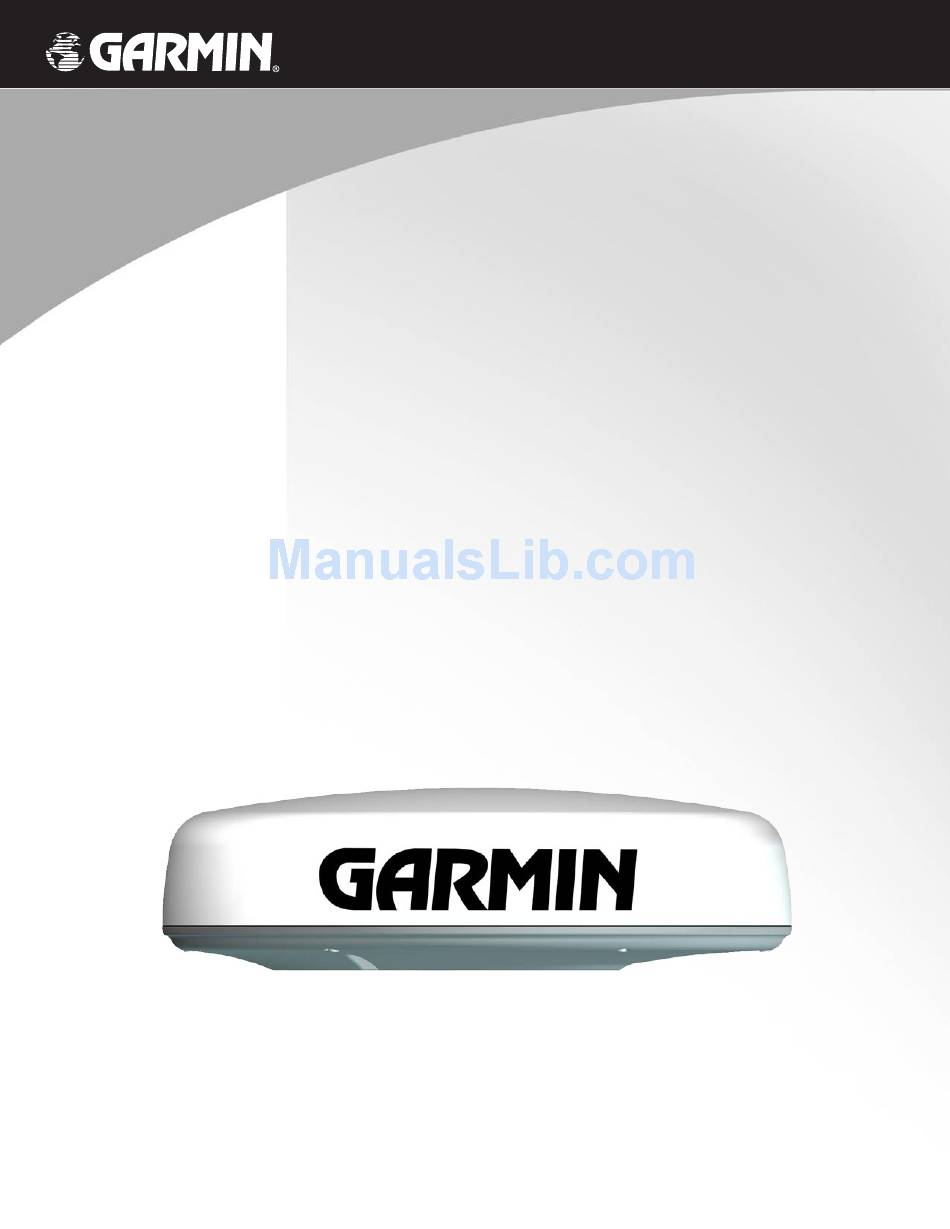

  • Page 1 GMR 20/40 marine radar installation guide...
  • Page 2 Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements.
  • Page 3: Contact Garmin

    Product Support Registration Help us better support you by completing our on-line registration today! Have the serial number of your GMR 20/40 handy and connect to our Web site (www.garmin.com). Look for the Product Registration link on the Home page. Also, be sure to record your serial number in the area provided on this page.
  • Page 4: Scanner Installation

    Scanner Installation The following section covers the installation and setup of the GMR 20 (2 kW) and GMR 40 (4 kW) Marine Radars. The GMR 20 and 40 only operate with components of the Garmin Marine Network with compatible MFD (Mulit-Function Displays). See your Garmin dealer or the Garmin web site for more details.
  • Page 5: Mounting The Scanner

    1. Once a suitable mounting location has been determined, verify that the mounting hole locations are aligned fore and aft, then drill four 9.5 mm (0.37”) mounting holes referencing Figure 1 below. (This step is not necessary if you are using a pre-drilled Garmin compatible or Raymarine mount.)
  • Page 6: Final Wiring Connections

    GA 31 GARMIN GDL 30/30A MARINE WEATHER/AUDIO SATELLITE RECEIVER GARMIN GMS 10 MARINE NETWORK PORT EXPANDER GMR 20/40 MARINE RADAR GPS 17 GARMIN GARMIN GPSMAP MFD GPSMAP MFD GSD 20 TOTRANSDUCER SOUNDER MODULE Expanded Network GMR 20/40 Radar Installation Manual...
  • Page 7: Powering On The System

    5. Once an offset has been determined, press ENTER to save and press QUIT to return back to the Radar Page. Your new Garmin Marine radar is now ready to use! Refer to the GMR 20/40 Owner’s manual (190-00457-00) for details on operating the scanner.
  • Page 8: Specifications

    -25°C to 70°C, and a relative humidity up to 95% at 35°C Beamwidth: Horizontal beamwidth of 3.6° nominal / Vertical beamwidth of 25° nominal Range: GMR 20: 24 nm / GMR 40: 36 nm Wind Velocity: Wind speed up to 100 Kts Antenna RPMs:...
  • Page 9 8” (205.4 mm) 28” (710.0 mm) Towards Stern Towards Bow 9.17” (233.0 mm) 5.57” 8.40” 13.97” (141.5 mm) (213.5 mm) (355.0 mm) GMR 20/40 Radar Installation Manual...
  • Page 10: Warning And Cautions

    FCC Compliance The GMR 20/40 complies with Part 80 of the FCC rules. It has received a grant of equipment authorization, issued under the authority of the FCC. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 11: Software License Agreement

    Garmin retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
  • Page 12: Declaration Of Conformity

    SO51 9DL, U.K. Type of Equipment: Marine Radar Model Number(s): GMR20/40 The undersigned does hereby declare that the equipment complies to the above Directives Paul Morrow Quality Manager GARMIN (Europe) Ltd Date: 19 April 2004 GMR 20/40 Radar Installation Manual...
  • Page 13 © Copyright 2004 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 E 151st Street, Olathe, Kansas 66062 U.S.A. Tel. 913/397.8200 Fax. 913/397.8282 Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9AQ U.K. Tel. 44/0870.8501241 Fax.
