A vital surveillance link in your onboard
Garmin Marine Network™, these
Steering clear of trouble just got easier.
X-band digital color radars combine
power, range and high-definition
targeting with the ultimate in plug-and-
play connectivity. Unlike competitive
designs, which require a dedicated
display/processor unit, all Garmin radar
processing is contained in the remote
antenna/scanner. The result: greater
efficiency and redundancy, since any
chartplotter on the network can display
and control the radar. The GMR 20 is a
2 kW radar with 24 nm range. The GMR
40 offers 4 kW output and a 36 nm range.
Both units feature sleek, 28-inch low-
profile radomes with a beamwidth of
3.6° for the clearest target definition at
all ranges and in all weather conditions.

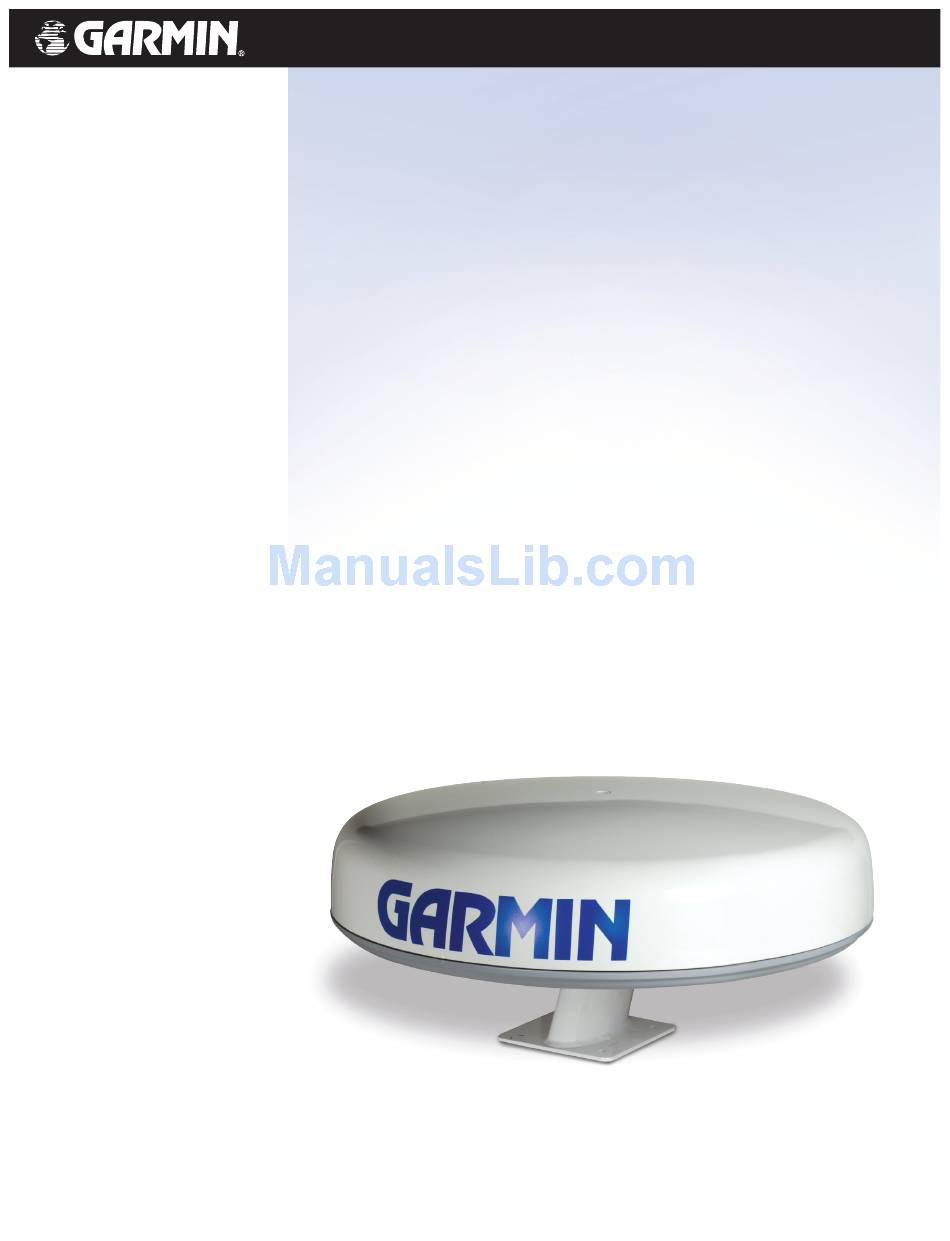

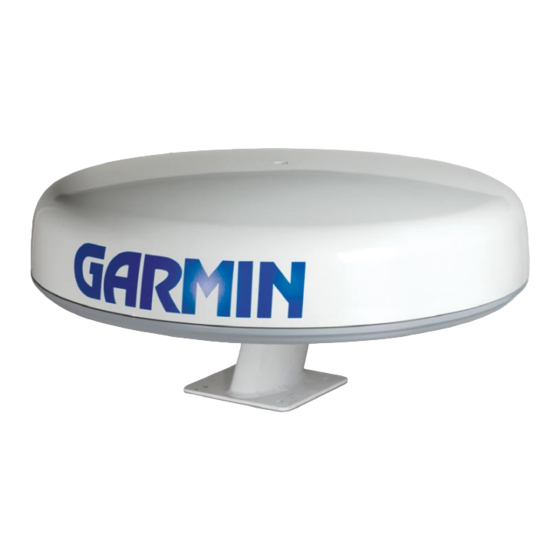

GMR 20/40 Marine Radar
Shown with optional aftermarket mount

Advertisement

loading
Need help?

Need help?

Do you have a question about the GMR 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Garmin GMR 20

  • Page 1 The result: greater efficiency and redundancy, since any chartplotter on the network can display and control the radar. The GMR 20 is a 2 kW radar with 24 nm range. The GMR 40 offers 4 kW output and a 36 nm range.
  • Page 2 GMR 20/40 Marine Radar With a narrower beamwidth (3.6°) than other radars in its class, As an aid in locational awareness, the GMR 20/40 radar image the Garmin GMR 20/40 series offers more precise definition of can be overlaid on the moving map cartography display.
