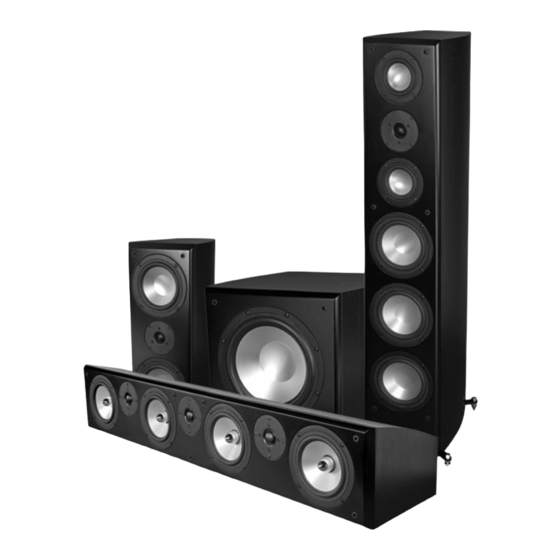

  • Page 1 SIGNATURE SX SERIES SPEAKERS AND SUBWOOFERS O w n e r ’ s M a n u a l...

  • Page 3: Break-In Period

    Introduction Congratulations on your purchase of Signature SX Series freestanding speakers and/or subwoofer! Your speakers are the result of many years of research and development dedicated to producing high quality products for home audio and audio/video systems. This manual contains features, setup recommendations and specifications for the Signature SX Series freestanding speakers.
  • Page 4 Features (continued) performance of reference-grade components. The tweeter has a larger motor structure, increased power handling and improved resolution. The aluminum cone woofers that give the Signature SX Series its great bass to upper-midrange performance are replaced with an even more advanced aluminum cone woofer featuring a fixed-position phase plug.
  • Page 5 Room Setup Suggestions In order to obtain the best possible sound from your speaker system, it is important to determine where the speakers will sound best in your listening room. Room reflections from the floor, ceiling and side walls influence the balance, imaging and overall sonic quality at the listening position.
  • Page 6 Room Setup Suggestions (continued) IMPORTANT NOTICE REGARDING BASS MANAGEMENT: It is important the signal being sent to the subwoofer be a non-boosted or “flat” signal. To be sure of this, check the settings on your receiver or processor to make sure any “bass boost”, “super bass”...
  • Page 7 Subwoofer Amplifier Controls and Setup This section describes the functions and/or use for each of the amplifier controls located on the back of the SX-10, SX-10/R, SX-12 SX-12/R, SX-88, SX-1010N, SX-1010N/R, SX-1010P and SX1010P/R subwoofers. See the diagram of the back of the subwoofer on the next page.
  • Page 8 Subwoofer Amplifier Controls and Setup (continued) 2. Volume/Gain Control: The volume/level control should be at the minimum setting (all the way counter-clockwise) before plugging the subwoofer into an AC wall socket. Once plugged in, turn the level control up one quarter of a turn (9 o’clock position) for an initial setting.
  • Page 9 Subwoofer Amplifier Controls and Setup (continued) 11. Fuse Access: This is the power fuse access. WARNING! In the event the fuse must be replaced, the replacement fuse must match exactly the original fuse value. If the replacement fuse is not of the same value, damage to the Subwoofer Amplifier may result.
  • Page 10 Subwoofer Amplifier Controls and Setup (continued) This section describes the functions and/or use for each of the amplifier controls located on the back of the SX-1212P/R subwoofer. See the diagram of the back of the subwoofer on the next page. 1.
  • Page 11 Subwoofer Amplifier Controls and Setup (continued) Signature SX Series Subwoofer Diagram for the SX-1212P/R. Signature SX Series Owner’s Manual...
  • Page 12 Tower Speaker Outrigger Installation These attractive tower speaker outriggers produce a wider support base for the Signature SX Series tower speakers creating stability and are ideal when placing speakers on a thickly carpeted floor. Package contents include: Top Cap Nut 4 each outrigger plates Outrigger Plate 4 metal spike feet...

  • Page 13: Specifications

    Specifications Model: SX-10 SX-10/R SX-1010N System Type: Powered Subwoofer Powered Subwoofer Passive Subwoofer Frequency Response: 29Hz-150Hz (±3dB) 26Hz-100Hz (±3dB) 24Hz-180Hz ±3dB Sensitivity: 90dB ( 2.83V @ 1 Meter) Recommended/ 300 Watt 350 Watt 200-400 Watts Rated Power: Amplifier Included Amplifier Included Woofer(s): (1) 10”...
  • Page 14 Specifications (continued) Model: SX-1010N/R SX-1010P SX-1010P/R System Type: Passive Subwoofer Powered Subwoofer Powered Subwoofer Frequency Response: 22Hz-100Hz ±3dB 22Hz-150Hz ±3dB 20Hz-100Hz ±3dB Sensitivity: 90dB Recommended/ 200-500 Watts 350 Watt Amplifier 500 Watt Amplifier Rated Power: Included Included Woofer(s): (2) 10” (254mm) (2) 10”...
  • Page 15 Specifications (continued) Model: SX-12 SX-12/R SX-1212N System Type: Powered Subwoofer Powered Subwoofer Passive Subwoofer Frequency Response: 27Hz-150Hz ±3dB 24Hz-100Hz ±3dB 25Hz-200Hz ±3dB Sensitivity: 93dB (2.83V @ 1 Meter) Recommended/ 350 Watt 500 Watt 200-500 Watts Rated Power: Amplifier Included Amplifier Included Woofer(s): (1) 12”...
  • Page 16 Specifications (continued) Model: SX-1212P SX-1212P/R SX-1212N/R System Type: Powered Subwoofer Powered Subwoofer Passive Subwoofer Frequency Response: 20Hz-200Hz ±3dB 17Hz-180Hz ±3dB 22Hz-180Hz ±3dB Sensitivity: 92dB (2.83V @ 1 Meter) Recommended/ 500 Watt Amplifier 2400 Watt Amplifier 500-2400 Watts Rated Power: Included Included Woofer(s): (2) 12”...
  • Page 17 Specifications (continued) Model: SX-44 SX-44/R SX-441C System Type: On-wall Surround On-wall Surround Center Channel Speaker Speaker Speaker Frequency Response: 60Hz-20kHz ±3dB 70Hz-20kHz ±3dB 70Hz-20kHz ±3dB Sensitivity: 88dB 88dB 89dB Recommended/ 75-150 Watts 75-200 Watts 75-150 Watts Rated Power: Woofer(s): (2) 4” (102mm) (2) 4”...
  • Page 18 Specifications (continued) Model: SX-441C/R SX-61 SX-61/R System Type: Center Channel Speaker Bookshelf Speaker Bookshelf Speaker Frequency Response: 65Hz-20kHz ±3dB 55Hz-20kHz ±3dB 55Hz-20kHz ±3dB Sensitivity: 89dB 87dB 87dB Recommended/ 75-200 Watts 75-150 Watts 75-200 Watts Rated Power: Woofer(s): (2) 4” (102mm) (1) 6½”...
  • Page 19 Specifications (continued) Model: SX-661 SX-661/R SX-661C System Type: L/R Speaker (Left / L/R Speaker (Left / Dedicated Center Right Main Speaker) Right Main Speaker) Channel Speaker Frequency Response: 55Hz-20kHz ±3dB 55Hz-20kHz ±3dB 55Hz-20kHz ±3dB Sensitivity: 90dB 90dB 90dB Recommended/ 75-200 Watts 75-250 Watts 75-200 Watts Rated Power:...
  • Page 20 Specifications (continued) Model: SX-661C/R SX-6100C SX-6100C/R System Type: Dedicated Center Dedicated Center Dedicated Center Channel Speaker Channel Speaker Channel Speaker Frequency Response: 55Hz-20kHz ±3dB 50Hz-20kHz ±3dB 50Hz-20kHz ±3dB Sensitivity: 90dB 92dB 92dB Recommended/ 75-250 Watts 75-450 Watts 75-500 Watts Rated Power: Woofer(s): (2) 6½”...
  • Page 21 Specifications (continued) Model: SX-6300 SX-6300/R SX-8300 System Type: Tower Speaker Tower Speaker 3-way Tower Front Main or Rear Speakers Frequency Response: 35Hz-20kHz ±3dB 35Hz-20kHz ±3dB 25Hz-20kHz ±3dB Sensitivity: 88dB 88dB 91dB Recommended/ 100-300 Watts 100-350 Watts 100-400 Watts Rated Power: Woofer(s): (3) 6½”...
  • Page 22 Specifications (continued) Model: SX-8300/R SX-88 SX-T1 System Type: 3-way Tower Front Main Powered Subwoofer L/R Front Main Speaker or Rear Speakers Frequency Response: 25Hz-20kHz ±3dB 35Hz-180Hz ±3dB 50Hz-20kHz ±3dB Sensitivity: 91dB 92dB Recommended/ 100-500 Watts 300 Watt Amplifier 100-400 Watts Rated Power: Included Woofer(s):...
  • Page 23 Specifications (continued) Model: SX-T1/R SX-T2 SX-T2/R System Type: L/R Front Main Speaker L/R Front Main Speaker L/R Front Main Speaker Frequency Response: 50Hz-20kHz ±3dB 22Hz-20kHz ±3dB 20Hz-20kHz ±3dB Sensitivity: 92dB 92dB 92dB Recommended/ 100-500 Watts 100-400 Watts 100-500 Watts Rated Power: Woofer(s): (4) 6½”...
  • Page 24 Specifications (continued) Model: SX-T3 SX-T3/R System Type: L/R Front Main Speaker L/R Front Main Speaker Frequency Response: 22Hz-20kHz ±3dB 20Hz-20kHz ±3dB Sensitivity: 92dB 92dB Recommended/ 100-400 Watts 100-500 Watts Rated Power: Woofer(s): (4) 10” (254mm) (4) 10” (254mm) Aluminum Subwoofers Aluminum Subwoofers (4) 6½”...
  • Page 25 Amplifier fuse might be blown. Replace fuse (if fuse is not readily accessible, consult your authorized RBH Sound dealer). Performance Crossover frequency is not Adjust the crossover frequency by is less than adjusted correctly.

  • Page 26: Warranty

    This warranty becomes void if the product has been damaged by alteration, misuse or neglect. RBH Sound assumes no liability for property damage or any other incidental or consequential damage whatsoever which may result from the failure of this product.
  • Page 28 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.rbhsound.com It is RBH Sound policy to continuously incorporate improvements into products; all specifications are subject to change without notice. Copyright © 2012 RBH Sound. All Rights Reserved. 11272012...
