Summary of Contents for AOC LM720

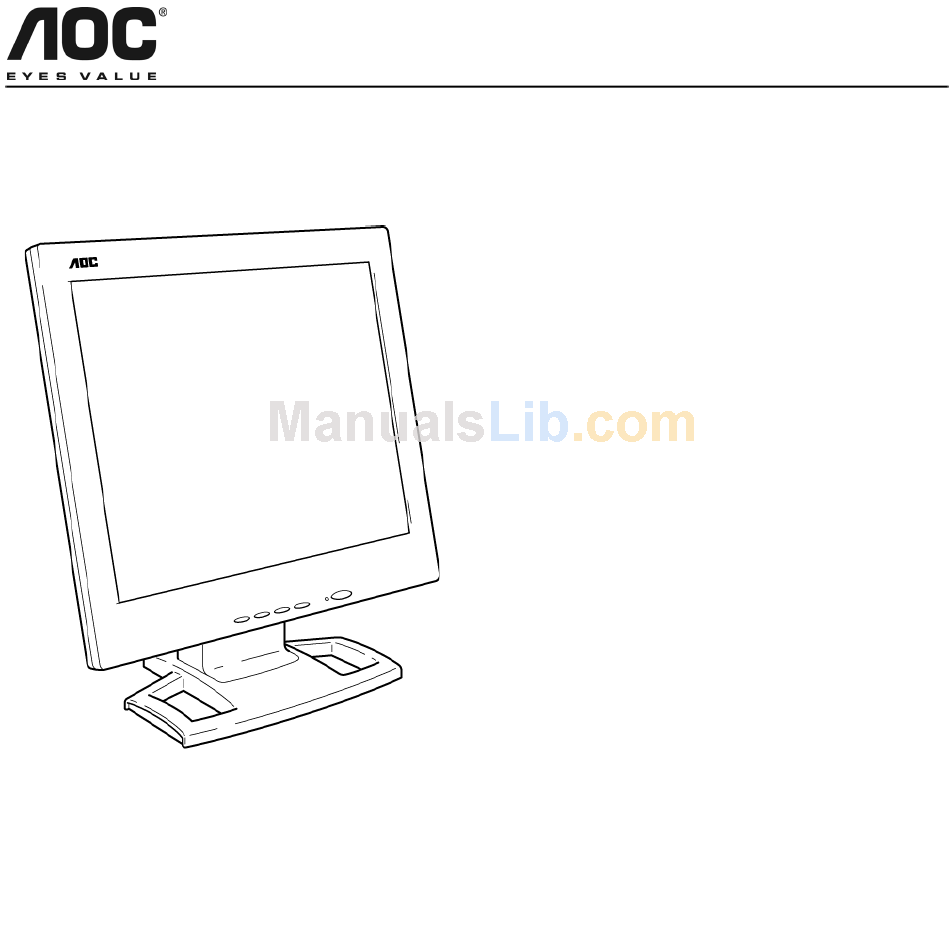

- Page 1 AOC LM720 AOC LM720 17 inch TFT LCD Monitor User’s Manual by Envision Peripherals, Inc. www.aocmonitor.com Before operating your monitor, please read this manual thoroughly. AOC LM720 v2_123102...
-
Page 2: Fcc Statement
4. Consult the dealer or an experienced radio/TV technician for help. AOC LM720 For Your Safety Notice 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 3 Overloading can result in fire or electric shock. • For use only with power adapter (Output 12Vdc) which has UL, CSA listed license. AOC LM720 Precautions • The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin.
-
Page 4: Special Notes On Lcd Monitors
EPI service center for replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. AOC LM720 For Your Safety General Notes • Do not install the monitor near heat sources such as radiators or air ducts. -
Page 5: Before You Operate The Monitor
• Space Saving, Compact Case Design AOC LM720 Package Contents The box that your monitor was shipped in should have included the following items: 1. LM720 LCD Monitor 2. Power Adapter 3. Power Cord 4. Windows 95/98/2000/ME/XP INF Driver Disk 5. Quick Start Guide 6. - Page 6 4. Connect the power adapter into the DC IN socket on the back of the monitor. AOC LM720 Caution: Make sure the power cord is the correct type that is required in your area. This LCD monitor has a universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage areas (no user adjustment is required).
- Page 7 Before You Operate the Monitor AOC LM720 Preparing to Install An Optional Wall Mounting Arm (Not supplied) This monitor can be attached to a wall mounting See next page for further installation instructions. arm you purchase separately. Disconnect power before this procedure. Follow these steps: 1.
-
Page 8: Install An Optional Wall Mounting Arm (Not Supplied)
3. Insert the power cable into the slot on the back of the monitor. AOC LM720 AOC's Model LM720 is compatible with the Ergotron line of mounting and arm solutions. Contact Ergotron at 800-888-8458 or visit their web site at www.ergotron.com for more information on the many ways on which you can mount your AOC LCD monitor. -
Page 9: Adjusting The Viewing Angle
It may cause damage or breakage. • Be careful to avoid pinching your hand in the swivel base. AOC LM720 How to Install INF & ICM File 1. Insert the Windows 95/98/2000/ME/XP INF Driver Disk into your floppy drive. -
Page 10: Front Panel Buttons
MENU: Press this button to open the OSD window or exit from the OSD window. AOC LM720 Operating Instructions AOC LM720 Power Indicator: A green light indicates that the monitor is on. -
Page 11: Adjusting The Osd Settings
3. Press MENU to open the function’s window. 4. Press the < or > buttons to change the settings of the function. AOC LM720 Operating Instructions 5. To save and exit, highlight the EXIT icon and press MENU or leave the monitor alone for 10 seconds. -
Page 12: How To Optimize The Dos-Mode
2 seconds. The screen will be automatically adjusted. If the screen is distorted (for example: the picture can't go to full screen, the background of white AOC LM720 Operating Instructions pattern has vertical stripe noise, or the characters are twisted): 1. -
Page 13: Technical Support (Faq)
• Confirm that your video card is Plug & Play compatible. • Inspect the video cable and make sure that none of the pins are bent. • Make sure the AOC monitor drivers are installed. (AOC monitor drivers are available at: www.aocmonitor.com) Picture is fuzzy •... - Page 14 • Make sure the video cable is properly connected to the computer. If the connector is loose, tighten the connector's two screws. • Inspect the video cable and make sure that none of the pins are bent. AOC LM720 Technical Support (FAQ) Possible Solution...
-
Page 15: Resolution Chart
640 x 400 640 x 350 720 x 400 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 AOC LM720 Technical Support (FAQ) Possible Solution Vertical Frequency 60 Hz 70 Hz 70 Hz 70 Hz 72.8 Hz... -
Page 16: Specifications
Response time Video Separate Sync. H-Frequency V-Frequency Display Colors Dot Clock Maximum Resolution AOC LM720 Appendix Plug & Play TFT Color LCD Input Connector 17" (43.2 cm) Diagonal Input Video Signal 0.264 mm (H) x 0.264 mm (V) Maximum Screen Size 150°... - Page 17 H-Position V-Position Auto-Center Language Dos-mode Resolution Selected 6500° K 7800° K RGB Color temp. Recall Exit EPA ENERGY STAR® Power Consumption 45 Watts (Maximum) Regulatory UL, CSA, FCC, TÜV/ Compliance GS, CE, XP Logo AOC LM720 Appendix AOC LM720 v2_123102...
-
Page 18: Factory Preset Timing Table
800 × 600 832 × 624 1024 × 768 1024 × 768 1024 × 768 1024 × 768 SXGA 1280 x 1024 1280 x 1024 AOC LM720 Appendix Resolution Horizontal (in pixels) Frequency 31.47 kHz 31.47 kHz 31.47 kHz 35.00 kHz 37.50 kHz... -
Page 19: Connector Pin Assignment
Connector Pin Assignment Pin Number AOC LM720 Appendix Description Pin Number Green Blue Ground Ground R-Ground G-Ground B-Ground AOC LM720 Description Detect Cable DDC-Serial Data H-Sync V-Sync DDC-Serial Clock v2_123102...
