PIHSIANG MACHINERY Sunrunner User Manual

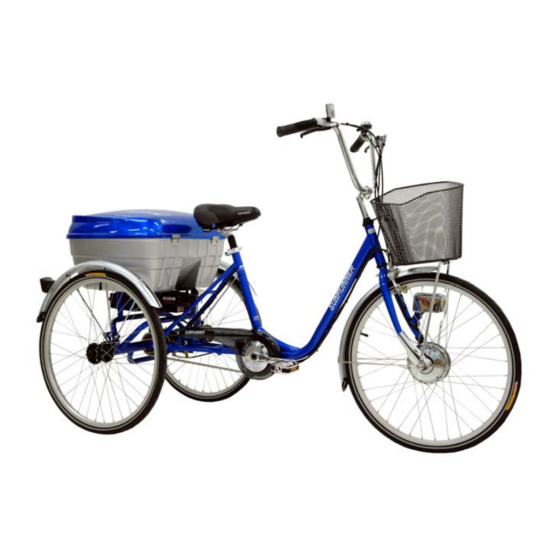

Sunrunner apt power assist electric tricycle
Hide thumbs Also See for Sunrunner:

Advertisement

Quick Links

See also: User Manual
®
APT
Power Assist Electric Tricycle
USER MANUAL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sunrunner and is the answer not in the manual?

Questions and answers

Related Manuals for PIHSIANG MACHINERY Sunrunner

Summary of Contents for PIHSIANG MACHINERY Sunrunner

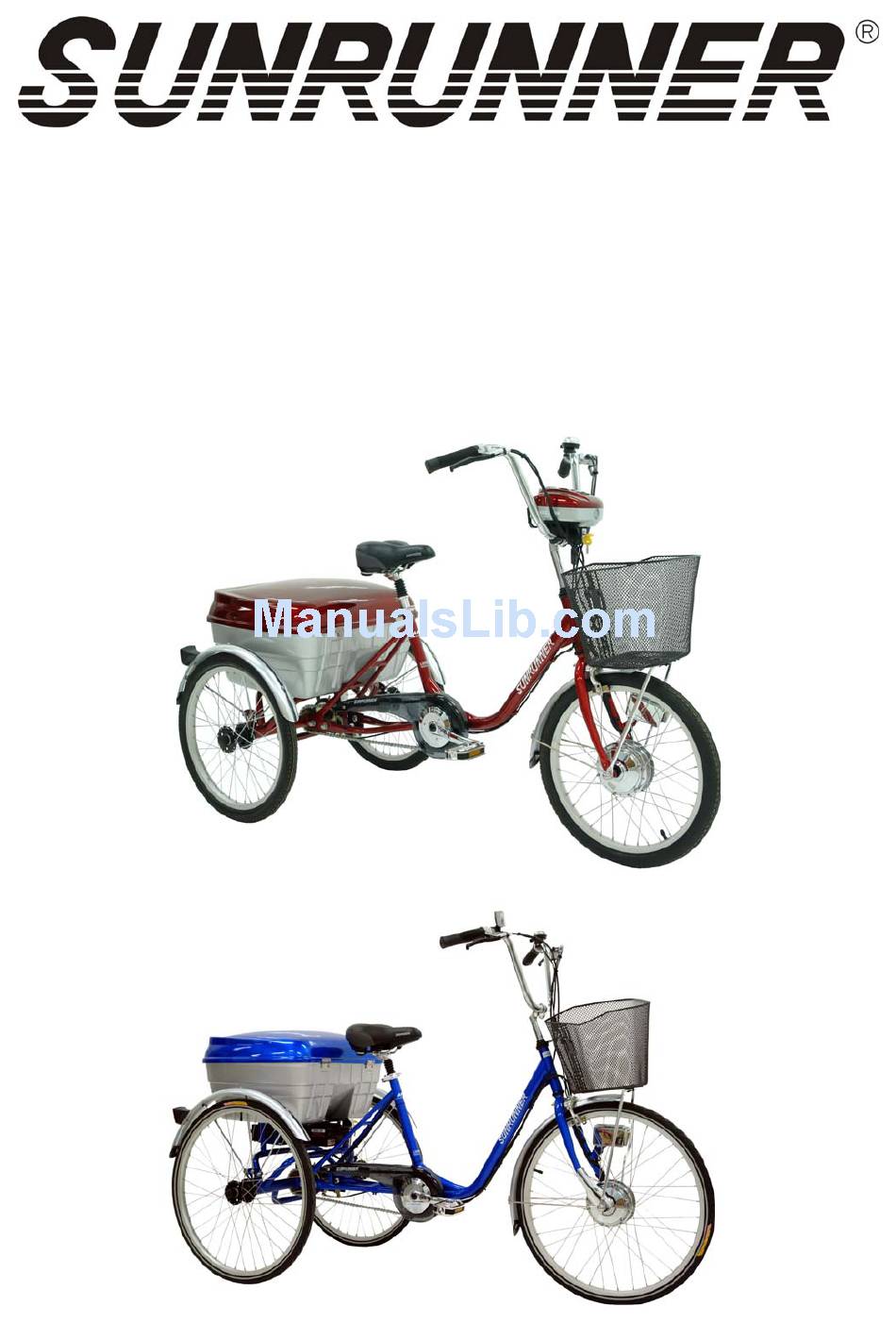

  • Page 1 ® Power Assist Electric Tricycle USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Introduction ..................3 Features ………………………………………………………………3 Safety Warnings ................5 User Guidance ................6 Battery and Charging..............10 Maintenance ................17 Trouble Shooting …………………………………………………….18 Notes…………………………………………………………………..19 Disclaimer …………………………………………………………… 20...

  • Page 3: Introduction

    Introduction ® ® Thank you for purchasing the SUNRUNNER Power Assist Electric Tricycle (hereinafter referred to as “E-Trike”) designed and manufactured by PIHSIANG MACHINERY MFG. CO., LTD. (hereinafter referred to as “PMMC”). The user’s manual contains important information concerning the operation and the safe use of your E-Trike.
  • Page 4 Features 1. Saddle 6. Actuator & Sensor Kit 11. Basket 2. Lockable Box 7. Pedal 12. 5Ah / 6Ah C-LiFePO Battery Pack＊ 3. Reflector 8. Spoke 13. 10Ah / 13.5Ah C-LiFePO Battery Pack＊ 4. Pneumatic Tire 9. Hub Motor Assembly 14.

  • Page 5: Safety Warnings

    Safety Warnings 1. Do not operate your E-Trike before reading this user manual thoroughly. 2. Do not disassemble the battery pack and modify the unit or your warranty will be void and you will be responsible for the modification. 3. The maximum load for the carry basket is 2 Kgs. 4.

  • Page 6: User Guidance

    User Guidance Restore the handle bar before using Use the allen key supplied to adjust the handlebars back to the normal user position. Take care to ensure bolt is fully tightened before using the bike. 10 Stages Power Assist Output Adjustment 1.
  • Page 7 Adjustment of the Saddle 2. Adjust the seat post to the 1. Loosen the clamp lever. desired height position. INSERT MIN |||||||| 4. Ensure the saddle is aligned 3. Be aware of the maximum on your E-Trike and then height markings (MIN. tighten the clamp lever when INSERTION as shown) on your saddle has completely...
  • Page 8 Operating Instructions of Derailleur (SunRace Inter-3 Shift Gear) Your E-Trike is equipped with the Sunrace Inter-3 (3-speed shift gear) at the rear wheel axle. It is easy to change the gear ratio by shifting the gear-change handle while riding. Handle position Riding Gradient Speed / Gear Ratio Level road...

  • Page 9: Riding Safety

    Regular Check for Safety before Riding 1. Check Tire Pressure before riding: The tire pressure on front and rear tires is to be maintained at 50PSI (or 3.5Bar). Check if the tire tread is worn excessively. If so the tire needs to be replaced. 2.

  • Page 10: Battery And Charging

    Battery & Charging Dismounting the Battery Pack (5Ah / 6Ah) Unlock the battery pack by using your battery key turned flat. Note: Make sure the battery pack handle is latched as shown before sliding out the battery. Hold the battery pack Depress the key to release the handle and remove it.
  • Page 11 Dismounting the Battery Pack (10Ah / 13.5Ah) Switch the battery pack off. Unlock the battery pack by using your battery key switched to be level. Depress the key to release the lock and use the other hand to push the battery pack sliding out from the battery slide.
  • Page 12 Steps to Charge the Battery Pack (5Ah / 6Ah/ 10Ah / 13.5Ah) 1. Turn off the main switch of battery pack. 2. Dismount the battery pack (shown as Page 10, 11) and then place it at a ventilated place to be charging. 3.

  • Page 13: Trouble Shooting

    Trouble Shooting 1. If the LED light is “OFF” all the time while charging: Check if the power connections are in good condition. If the LED light is still off all the time while charging, the battery charger may have malfunction. Please consult your authorized dealer for further assistance.
  • Page 14 Battery Pack Feature ˙Main Switch Function： How to operate LED Lights Function 5Ah / 6Ah 10Ah / 13.5Ah Controller Controller & Battery Pack Activate Power Assist Controller & Battery Pack None Power off Stop ○ ˙The LED Light on controller and battery pack utilizes the 1W Warm White LED Light, which is a green energy and provides moderate light in the dark.
  • Page 15 Battery Capacity LED Light Indicator Percent Left of LEDs Illuminated Battery Remaining Charge Battery Capacity Battery pack has adequate power. All LEDs on 100%~90% About three-fifth capacity is remaining. 3 LEDs on, 1 LED off 65%~55% About two-fifth capacity is remaining. 2 LEDs on, 2 LEDs off 45%~ 40% About one-fifth capacity is remaining.
  • Page 16 Riding Range per Different Capacity of a Fully Charged Battery Pack ，5 Ah / 6Ah / 10Ah / 13.5Ah ® Type-Environfriendly C-LiFePO Battery Capacity Configuration or Option 5Ah (1.8kg) 6Ah (1.9kg) 10Ah (3.4kg) 13.5Ah(3.9kg) (Capacity/Weight) Set to the top Reference Range scale of power 60~80Kg 15~20 Km 20~25 Km...
  • Page 17 Maintenance Periodic Maintenance Please contact your authorized dealer to maintain your E-Trike periodically： ˙ Make sure the front and rear wheel in good condition. ˙ Maintain the battery pack and charger in good condition. ˙ Maintain the motor and controller in good condition. ˙...
  • Page 18 (noise) obstructs wheels or motor. wheels and motor. ® Note: You must use the genuine SUNRUNNER charger dedicated for C-LiFePO Battery Pack to be charged. Please contact your authorized dealer if the above solution has been checked and the...

  • Page 19: Disclaimer

    Mechanical or electrical defects will be dealt with on a contingency liability basis. ® Warranty is only valid when genuine SUNRUNNER parts are used. All modifications on ®...
