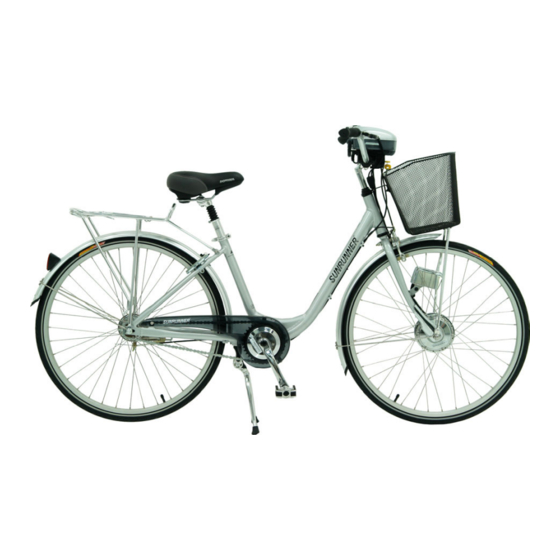

Summary of Contents for PIHSIANG MACHINERY SUNRUNNER
- Page 1 ® Power Assist Electric Bicycle USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents Introduction …………………………………………………………. 3 Features …………………………………………………………….. 3 Safety Warnings ……………………………………………………. 5 User Guidance ……………………………………………………... 6 Battery and Charging ………………………………………………. 10 Maintenance ………………………………………………………… 18 Trouble Shooting …………………………………………………… 19 Disclaimer …………………………………………………………… 20... -
Page 3: Introduction
Introduction ® ® Thank you for purchasing the SUNRUNNER Power Assist Electric Bicycle (hereinafter referred to as “E-Bike”) designed and manufactured by PIHSIANG MACHINERY MFG. CO., LTD. (hereinafter referred to as “PMMC”). The user’s manual contains important information concerning the operation and the safe use of your E-Bike. - Page 4 Features 16. Rear Carrier Light＊ 1. Saddle 6. Foot Stand 11. Frame 17. 10Ah / 13.5Ah C-LiFePO 7. Actuator & 12. Carrier＊ 2. Controller (w/ Light) Battery Pack＊ Sensor Kit 18. Carrier for 10Ah C-LiFePO 13. Basket＊ 3. Pneumatic Tire 8.
-
Page 5: Safety Warnings
Safety Warnings 1. Do not operate your E-Bike before reading this user manual thoroughly. 2. Do not disassemble the battery pack and modify the unit or your warranty will be void and you will be responsible for the modification. 3. The maximum load for the carry basket is 2kgs. 4. -
Page 6: User Guidance
User Guidance 10 Stages Power Assist Output Adjustment 1. Turn off the power and depress the pedal while the bike is faced against the wall. 2. Press the main switch to either left (I) or right (II) position while depressing the pedal continuously. - Page 7 Adjustment of the Saddle 2. Adjust the seat post to 1. Loosen the clamp lever. the desired height position. INSERT MIN |||||||| 4. Ensure the saddle is 3. Be aware of the maximum aligned on your E-Bike height markings (MIN. and then tighten the clamp INSERTION as shown) on lever when your saddle has...
- Page 8 Operating Instructions of Derailleur (Shimano Inter-3 Shift Gear) Your E-Bike is equipped with the Shimano Inter-3 (3-speed shift gear) at the rear wheel axle. It is easy to change the gear ratio by shifting the gear-change handle while riding. Handle position Riding Gradient Speed / Gear Ratio Level road...
-
Page 9: Riding Safety
Regular Check for Safety before Riding 1. Check the Tire Pressure before riding: The tire pressure on front and rear tires is to be maintained at 50PSI. Check if the tire tread is worn excessivly. If so the tire needs to be replaced. 2. -
Page 10: Battery And Charging
Battery & Charging Usage of Light and Charging The main light above as integrated in the controller box will always remain on when the main switch is on. Both battery light and main light will be Charge the battery at once on if the main switch is switched when the last light LED starts onto the right side marked with “II”, and... - Page 11 Dismounting the Battery Pack (5Ah / 6Ah) Unlock the battery pack by using your battery key turned flat. Note: Make sure the battery pack handle is latched as shown before sliding out the battery. Hold the battery pack Depress the key to release the handle and remove it.
- Page 12 Dismounting the Battery Pack (10Ah / 13.5Ah) Unlock the battery pack by using your Switch the battery pack off. battery key switched to be level. Depress the key to release the lock and use the other hand to push the battery pack sliding out from the battery slide.
-
Page 13: Operating Instruction
Steps to Charge the Battery Charger Battery Pack 1. Turn off the main switch of battery pack. 2. Dismount the battery pack and then place it at a ventilated place to be charging. 3. Swivel the charging port cover of battery Charging Indicator LED pack and then connect the charger plug... - Page 14 Check if the connection between charger plug and charging port of the battery is correctly inserted. Check if the battery pack is already fully charged. Check if the battery is functioning properly, and consult your local authorized dealer for assistance. 3.
- Page 15 Battery Pack Feature ˙Main Switch Function： How to operate LED Lights Function 5Ah / 6Ah 10Ah / 13.5Ah Controller Controller & Battery Pack Activate Power Assist Controller & Battery Pack None Power off Stop ○ ˙The LED Light on controller and battery pack utilizes the 1W Warm White LED Light, which is a green energy and provides moderate light in the dark.
- Page 16 Battery Capacity LED Light Indicator Percent Left of LEDs Illuminated Battery Remaining Charge Battery Capacity Battery pack has adequate power. All LEDs on 100%~90% About three-fifth capacity is remaining. 3 LEDs on, 1 LED off 65%~55% About two-fifth capacity is remaining. 2 LEDs on, 2 LEDs off 45%~ 40% About one-fifth capacity is remaining.
- Page 17 Riding Range per Different Capacity of a Fully Charged Battery Pack ○ R Type-Environfriendly C-LiFePO ，5 Ah / 6Ah / 10Ah / 13.5Ah Battery Capacity Configuration or Option 5Ah (1.8kg) 6Ah (1.9kg) 10Ah (3.4kg) 13.5Ah(3.9kg) (Capacity/Weight) Set to the top Reference Range scale of power 60~80Kg 20~25 Km...
-
Page 18: Maintenance
Maintenance Periodic Maintenance Please contact your authorized dealer to maintain your E-Bike periodically： ˙ Make sure the front and rear wheel in good condition. ˙ Maintain the battery pack and charger in good condition. ˙ Maintain the motor and controller in good condition. ˙... -
Page 19: Trouble Shooting
(noise) wheels and motor. ® Note : You must use the genuine SUNRUNNER charger dedicated for C-LiFePO Battery Pack to be charged. Please contact your authorized dealer if the above solution has been checked and the... -
Page 20: Disclaimer
Mechanical or electrical defects will be dealt with on a contingency liability basis. ® Warranty is only valid when genuine SUNRUNNER parts are used. All modifications on ®...
