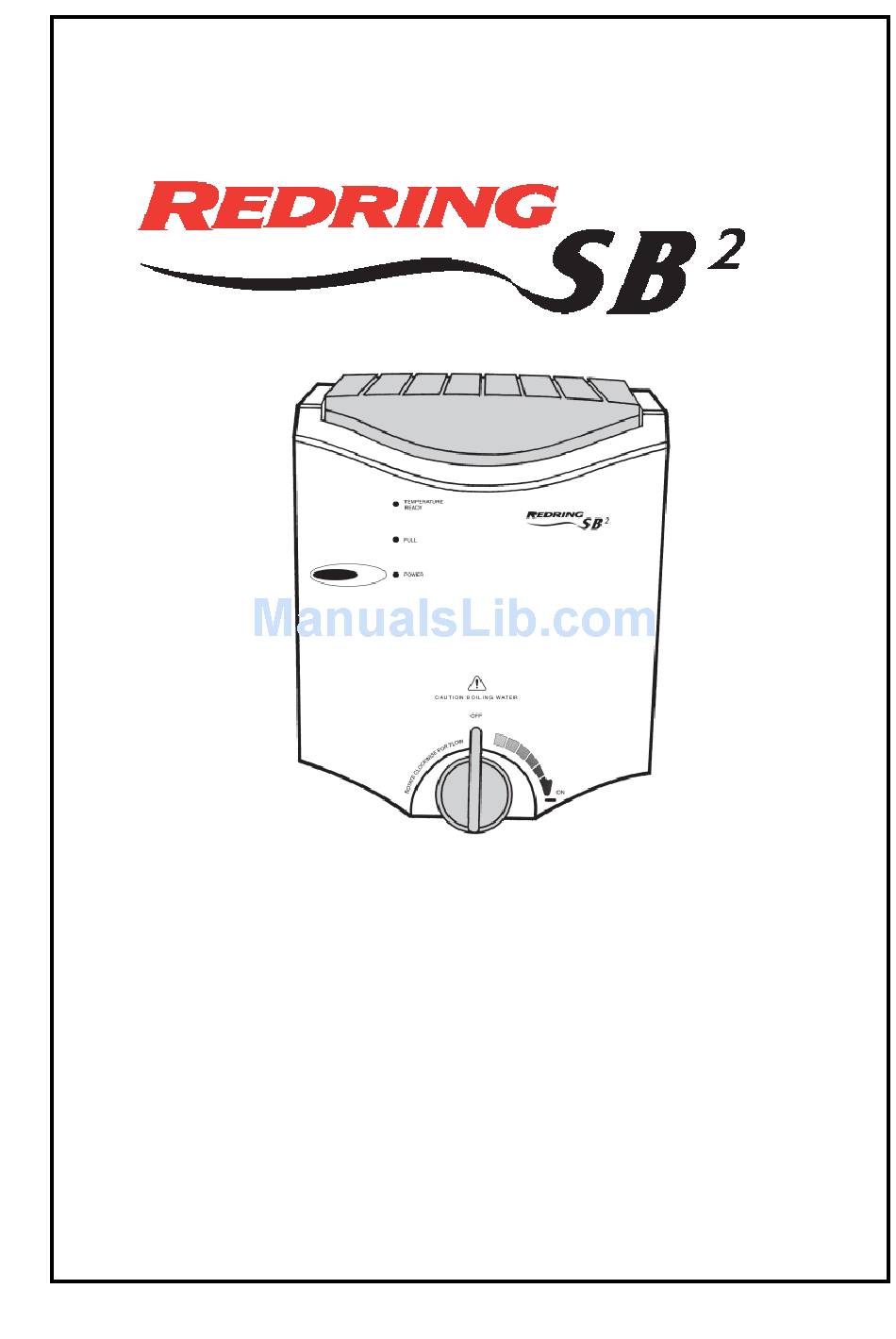

THE
BOILING WATER DISPENSER
INSTALLATION & OPERATING INSTRUCTIONS
IMPORTANT:
This booklet should be left with the user after
installation and demonstration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Redring SB2

  • Page 1 BOILING WATER DISPENSER INSTALLATION & OPERATING INSTRUCTIONS IMPORTANT: This booklet should be left with the user after installation and demonstration...
  • Page 2: Table Of Contents

    Thank you for choosing a quality Redring product manufactured in Peterborough, England Contents Installation Instructions Page Important notes ............3 What the installer will need .
  • Page 3: Important Notes

    Important Notes This appliance is intended to be used in household and similar applications such as:- - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.
  • Page 4: What The Installer Will Need

    What the installer will need A means for disconnecting the fixed wiring in all poles in accordance with the wiring rules (ie. 13A fused double pole isolating switch). Suitable length of 1.0mm² 3-Core multi-strand PVC insulated mains cable that complies with BS.6500.
  • Page 5: Installing The Mains Supply

    Installing the mains supply If a mains supply is not already available. Install a means for disconnecting the fixed wiring in all poles (ie. 13A fused double pole isolating switch) adjacent to where the unit will be fixed. Removing the front cover Remove the screw from the bottom and top edge of the unit (Fig.3).
  • Page 7: Fixing The Unit On The Wall

    Fixing the unit to the wall Use the wall mounting bracket supplied and the two lower fixing holes. Ensure that the wall mounting bracket is mounted horizontally. An extra top fixing point is available by temporarily removing the condenser assembly. Connecting the water supply and vent pipes When the unit is fixed to the wall, make the final water supply and steam vent connections and secure the pipework.
  • Page 8: Operating Instructions

    Operating Instructions General Product Description The SB² is a wall mounted, self-calibrating and self-filling boiling water heater. It can be used for making cups of tea or coffee and even soups and hot snacks. A special condenser traps steam and returns droplets to the tank, minimising waste and saving energy.
  • Page 9: How To Clean And Descale Your Sb²

    Please Note: The SB² can take several minutes to reach the required temperature, depending on usage and tank capacity. To avoid energy wastage, the SB² will automatically reduce the temperature by 10°C if the unit is not used for more than 60 minutes. The SB²...
  • Page 10: Trouble Shooting Guidance

    Trouble Shooting SELF HELP: If the SB² is not working satisfactorily, make the following checks before calling out the contractor. Any one of these adjustments could restore the performance. a) TEMPERATURE READY This is normal: The water has not yet reached the set temperature. light is not on (See Table 3 on page 11 for approximate heat up times).
  • Page 11 PROFESSIONAL SERVICE: If the SELF HELP checks do not cover the symptom, you should seek professional help. The following additional checklist is provided for the benefit of the qualified service person. WARNING: SWITCH OFF THE ELECTRICITY AT THE ISOLATING SWITCH BEFORE REMOVING THE COVER TO MAKE CHECKS Check that the water supply is on and that its pressure is between 0.069 MPa (0.7 bar / 10 psi) and 1.0 MPa (10.0 bar / 140 psi).
  • Page 12: Guarantee

    The manufacturer guarantee DOES NOT cover these natural phenomena. f) For the service work to be undertaken free of charge, the work must only be undertaken by Redring Xpelair Group Limited, or our approved agents. g) Service under guarantee has no effect on the expiry date.
