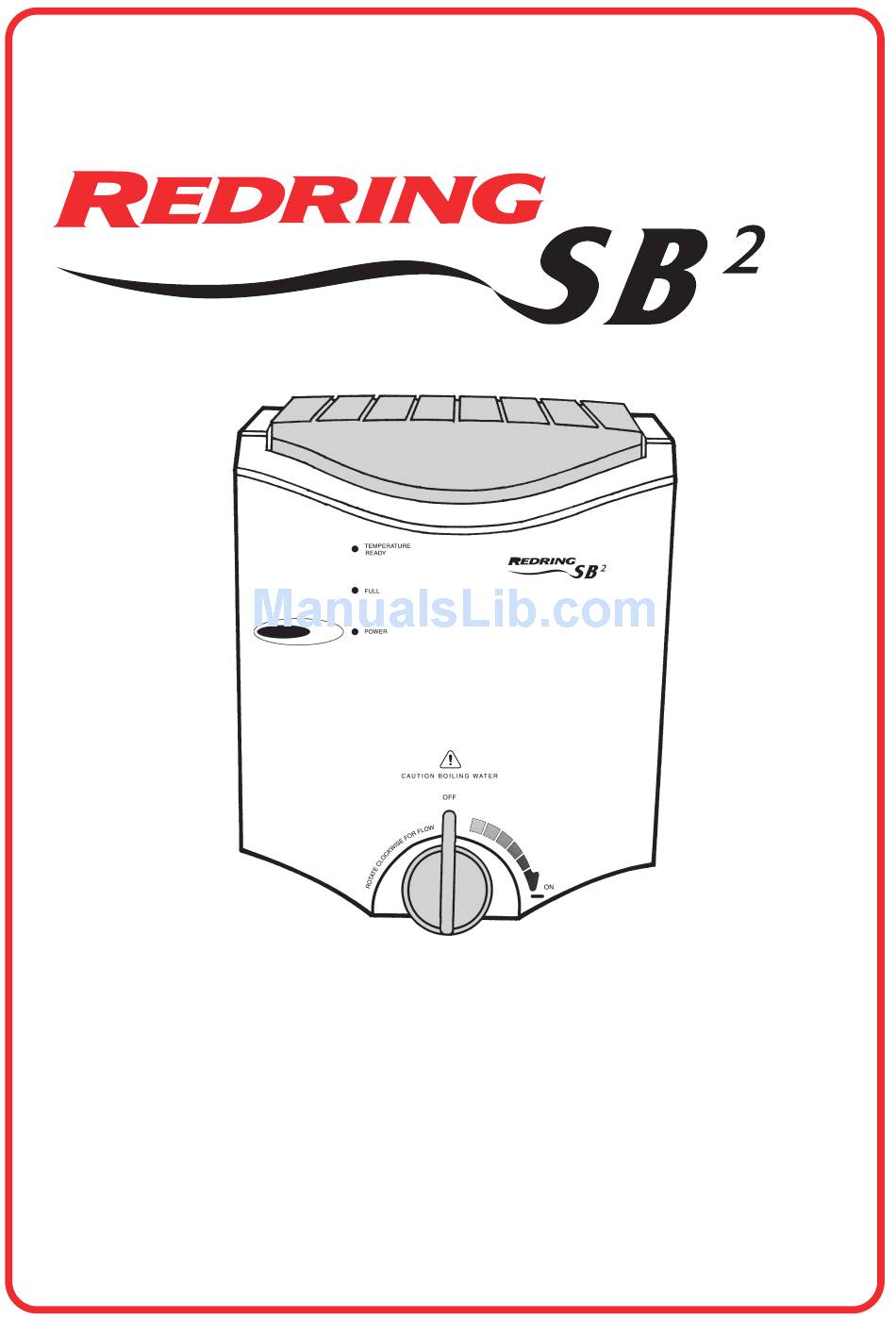

  • Page 1 BOILING WATER DISPENSER INSTALLATION & OPERATING INSTRUCTIONS IMPORTANT: READ AND SAVE THESE INSTRUCTIONS FOR THE BENEFIT OF THE USER...

  • Page 2: Table Of Contents

    Thank you for choosing a quality Redring product manufactured by Applied Energy Products Limited, Peterborough, U.K. Contents Page Installation Instructions Important notes ..........................2 What the installer will need ......................3 Where to locate the SB ........................ 3 Installing the water supply and steam vent pipes..............3 Installing the mains supply ......................

  • Page 3: What The Installer Will Need

    What the installer will need A 13 Amp fused double pole isolating switch with a minimum contact gap of 3mm in each pole. Suitable length of 1.0mm three core multi strand PVC insulated mains cable that complies with BS6500. Suitable lengths of 15mm copper pipe. Where to locate the SB We recommend that the unit is installed on a suitable wall, at shoulder height and over a sink.

  • Page 4: Installing The Mains Supply

    Installing the mains supply If a mains supply is not already available. Install a 13 Amp fused double pole isolating switch with a minimum contact gap of 3mm in each pole adjacent to where the unit will be fixed. Removing the front cover Remove the screws from the bottom and top edge of the unit (Fig.
  • Page 5 Fig. 4 Fig. 5a Fig. 5b...

  • Page 6: Fixing The Unit On The Wall

    Fixing the unit on the wall Use the wall mounting bracket supplied and the two lower fixing holes. An extra top fixing point is available by temporarily removing the condenser assembly. Connecting the water supply and vent pipes When the unit is fixed to the wall, make the final water supply and steam vent connections and secure the pipe work.

  • Page 7: Operating Instructions General Product Description

    Operating Instructions General Product Description The SB is a wall mounted, self calibrating and self filling boiling water heater. It can be used for making cups of tea or coffee and even soups and hot snacks. A special condenser traps steam and returns droplets to the tank, minimising waste and saving energy.

  • Page 8: How To Clean And Descale Your Sb

    Please Note: The SB can take several minutes to reach the required temperature, depending on usage and tank capacity. To avoid energy wastage, the SB will automatically reduce the temperature by 10ºC if the unit is not used for more than 60 minutes. (The SB will automatically go back to boiling when the water is used).

  • Page 9: Trouble Shooting Guidance

    Trouble shooting SELF HELP (See Table 1) – If the SB is unsatisfactory, then make the following checks before calling out the contractor. Any one of these adjustments could restore the performance. Table 1 This is normal: The water has not reached the set temperature. a) TEMPERATURE READY light is not on (See Table 3 on page 10 for approximate heat up times).
  • Page 10 Professional Service (see table 2) If the SELF HELP checks do not cover the symptom, you should seek professional help. The following additional checklist is provided for the benefit of the qualified engineer. WARNING: SWITCH OFF THE ELECTRICITY AT THE ISOLATING SWITCH BEFORE REMOVING THE COVER TO MAKE CHECKS.

  • Page 11: After Sales Service

    APPLIED ENERGY PRODUCTS AFTER SALES SERVICE We offer a technical service on the telephone to contractors and other customers seeking advice. RING 08709 000430 Some parts can be supplied using a credit card. RING 08709 000420 Remember to quote the model of SB and have a note of the Catalogue number as stated on the rating plate along the bottom edge of the unit.

  • Page 12: Guarantee

    Guarantee We, Applied Energy Products Ltd., guarantee that should this SB unit prove to be defective by reason of faulty workmanship or material within 24 months (outside of U.K. please contact your local distributor) of the date of purchase or commencement of hire we will replace or repair the defective parts FREE OF CHARGE on the condition that: a) The appliance has been correctly installed and used only on the supply circuit or voltage stamped on the rating plate.
