Summary of Contents for AWA MHDV2445-O3-D0

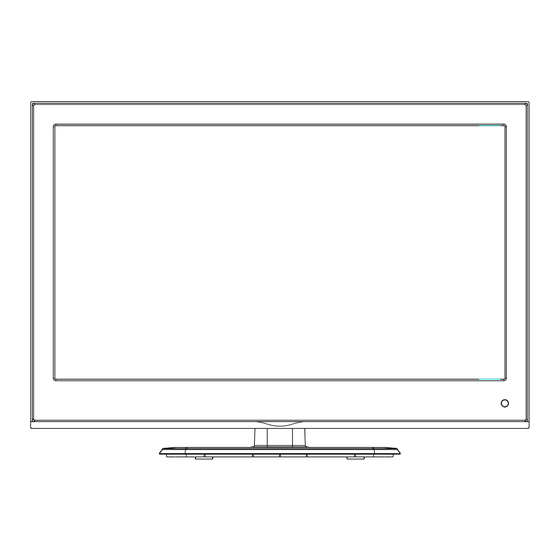

- Page 1 MHDV2445-O3-D0 24" 60cm FULL HD LED LCD Television with Built in DVD Player USER MANUAL Thank you for purchasing this LCD TV. Before connection and operation of this product please read the manual carefully and completely. Please keep this manual for future reference.
-
Page 3: Table Of Contents
Contents INTRODUCTION................1 SAFETY AND WARNINGS.............3-5 BASE STAND ASSEMBLY INSTRUCTION ......... 6 WALL MOUNTING INSTALLATION GUIDELINES....... 6 INSTALLATION................. 7 -10 REMOTE CONTROL..............11-12 OPERATION................13-17 DVD OPERATION..............18-21 DVD TROUBLE SHOOTING............22 TROUBLE SHOOTING..............2 3 TECHNICAL SPECIFICATIONS............24... -
Page 5: Safety And Warnings
SAFETY AND WARNINGS Never stand on, lean on, or suddenly push the High voltages are used in the operation of this television or its stand. You should pay special television receiver. Do not remove the cabinet attention to children. Serious injury may result if it back from your set. - Page 6 SAFETY AND WARNINGS CAUTION Never tamper with any components inside the TV, or any other adjustment controls not mentioned in this manual. All LCD-TVs are high voltage instruments. When you clean up dust or water drops on the LCD PANEL or CABINET , the power cord should be pulled out from the receptacle, then wipe the TV with a dry soft cloth.
-
Page 7: Base Stand Assembly Instruction
For wall mounting with the optional bracket, please read the following instruction and the bracket instruction. Make sure qualified service personnel perform the operation. AWA bears no responsibility for improper mounting that results in accident or injury. This television can be wall mounted as follows: 1.Place the LED LCD Television onto a solid surface. -
Page 8: Installation
INSTALLATION Front panel Remote control sensor. Indicator LED: BLUE POWER ON. Key board (on side of TV). KEYBOARD SOURCE MENU VOL+ VOL- STANDBY 1 SOURCE Display the input source menu. 2 MENU D isplay main MENU. 3 CH+/CH- In TV mode, press CH+ or CH- to change the channel up and down. In MENU mode, press CH+ or CH- to select items. - Page 9 INSTALLATION REAR AV Connections POWER HDMI2 All the terminals are(from left to right): AV composite video input , Audio input, Power socket, YPbPr (component video) input, HDMI2 input. Note: 1. AV and YPbPr share one audio channel. 2. When the HDMI2 port receives a DVI signal, the audio signal is received from the YPbPr/AV Audio channel.
-
Page 10: Preset Mode
INSTALLATION POWER HDMI2 PRESET MODE V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 800*600 35.156 800*600 37.88 800*600 48.08 1024*768 48.36 1024*768 56.48... - Page 11 INSTALLATION AV EQUIPMENT You can use the input terminals on TV set rear as follows. AV OUTPUT HDMI1 PC AUDIO VIDEO EQUIPMENT TO VIDEO INPUTS HDMI TO AUDIO INPUTS VIDEO EQUIPMENT with YPbPr (component) output Yellow (video) White(audio L) Red(audio R or Pr) Blue(Pb) Green(Y) POWER...
-
Page 12: Remote Control
REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL 1:POWER :To set the TV to standby or power on. : In DVD mode(if available),or in USB mode, used as reverse key, in teletext mode used as subpage key. : In DVD mode(if available),or in USB mode, used as forword key, in teletext mode used as reveal key. - Page 13 REMOTE CONTROL TELETEXT Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language (cable networks, satellite channels, etc.) Press: You will obtain :...
-
Page 14: Operation
OPERATION Installation Guide Please select an OSD Language Cesky English Magyar Polski Fran ais Espanol Dansk Hrvatski Nederlands Portugues Deutsch Italiano Norsk Pycck Country Australia Bulgaria Denmark Germany Italy Austria Croatia Finland Greece Luxembourg Belgium Czech France Hungary Netherlands This screen only appears when the TV is turned on for the first time, or reset to factory settings.You can choose language, country and auto tuning programs. - Page 15 OPERATION 2).DTV Manual tuning: You can select a DTV channel then find the program in this channel. Press to select the channel, then press OK to search the programs . NOTE: The Bad Normal Good bar graph on this screen shows signal intensity. DTV Manual Tuning VHF CH Press OK to search...
-
Page 16: Sound Menu
OPERATION Favourite Press to choose the program, press FAV button, it will show on the right side of the program. Choose the FAV program, press FAV button again, you can cancel the FAV, will disappear . Once your favorite group is created, you can press the FAV key to quickly access your favourite channel. 2. -
Page 17: Option Menu
OPERATION 5.OPTION MENU To enter the Option Menu, press MENU button and the press buttons to select the Option Menu. Once in Option Menu, press buttons to select the settings you wish to adjust. Press MENU button to return to the Main Menu. OSD Language English Audio Languages Subtitle Languages... - Page 18 OPERATION Sample1.ts Resolution: 720x576 AudioTrack: ½ Subtitle: Size: 30574 KBytes Close 8.EPG Menu (Electronic Program Guide). The EPG Menu is used to look at what is being broadcasted in DTV or Radio modes. Press the EPG Button to access the EPG Menu. You will receive detailed program information of the channel you are currently watching as well as the 7 Day Program guide.
-
Page 19: Dvd Operation
DVD OPERATION DVD OPERATION DVD SIDE PANEL Dolby Digital Multi-angle Subtitle choices KODAK picture CD OPEN/CLOSE PLAY/PAUSE Audio choices MP3 files on CD-R/CD-RW 16:9 TV Aspect DVD video Ratio modes Caution This product incorporates copyright This DVD Player has a Class 1 laser which protection technology that is protected by may be harmful to your eyes. - Page 20 DVD OPERATION MENU OPERATION SYSTEM SETUP Press the DVD SETUP button on the remote Aspect Ratio control, the SETUP MENU will be displayed. Select the aspect ratio. After accessing the setup menu, press the Notes: direction buttons for up and down movement to The image display ratio is related to the select an item desired, and press RIGHT recorded disc format.
- Page 21 DVD OPERATION PICTURE CD PLAYBACK MP3/WMA/JPEG PLAYBACK A PICTURE CD disc will show a similar directory structure as shown in the following picture. A MP3/WMA disc will show a directory structure as shown in the picture above. Press Direction key to choose the root Press Direction key to choose the root directory directory and then press ENTER/OK and then press ENTER/OK button to enter into...
- Page 22 DVD OPERATION Function Buttons 2:OPEN/CLOSE 20:DVD SETUP To open the disc tray, press OPEN/CLOSE; Press the button to enter the system setting To close the disc tray, press OPEN/CLOSE menu. Press the button again to exit the menu. again. 21:PREV 3:TITLE: In DVD mode, return TITLE menu.
-
Page 23: Dvd Trouble Shooting
DVD Trouble shooting If you have any questions, please consult the troubleshooting guide below: NO PICTURE OR SOUND REMOTE NOT WORKING Ensure the power button is on. Make sure the Main unit s POWER button is on Ensure the power outlet is operational. Ensure the remote batteries are working. -
Page 24: Trouble Shooting
TROUBLE SHOOTING Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost Normal audio or connection electronic equipment, car/ Interference Noise motorcycle, fluorescent light Volume (check if mute is activated or if the audio system Normal Picture connections are not correct) Mute... - Page 25 INTRODUCTION LCD : Viewing Picture Size (diagonal) 23.6"(60cm) Resolution 1920x1080 Aspect Ratio 16:9 Display colours 16.2M Brightness 250 cd/m Contrast ratio 1000:1 Response time 3.5 ms View angle 170(H)/160(V) Digital TV: DVB-T TV system Analog TV: PAL/SECAM Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM...
- Page 26 E. The AWA Service Centre and its Authorised Service Centres may charge for work done where the product is found to be in good working order. Example, charges may be made where the problem is found to be due to incorrect setting of customer controls, use of poor associated equipment (e.g.
