AWA LMD5909B Operating Instructions Manual

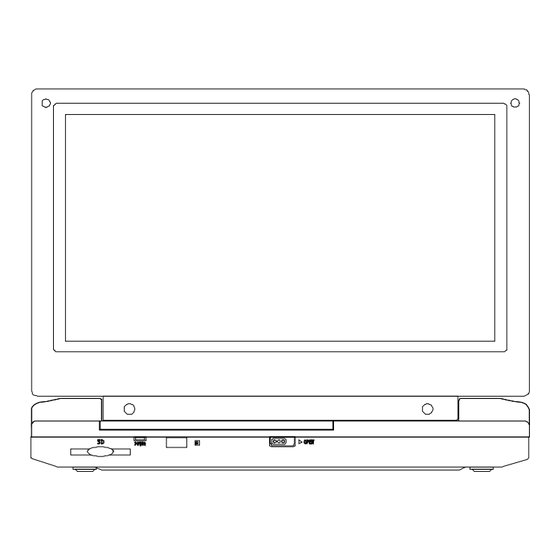

Portable 22cm lcd monitor and dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

LMD5909B
PORTABLE 22CM LCD MONITOR AND DVD PLAYER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMD5909B and is the answer not in the manual?

Questions and answers

Related Manuals for AWA LMD5909B

Summary of Contents for AWA LMD5909B

  • Page 1 LMD5909B PORTABLE 22CM LCD MONITOR AND DVD PLAYER...
  • Page 2 Notice: This Product incorporates copyright protection technology that is pro- tected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights own- ers. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited view- ing uses only unless otherwise authorized by Macrovision Corporation.

  • Page 3: Table Of Contents

    Content A. Introduction ..................1 B. Cautions and Warnings ..............1 C. Contents .................... 3 D. Powering and installation ..............3 E. Controls, Indicators, and Connectors ..........5 F. Loading and Playing a Disc ............... 6 G. Basic Operation.................. 7 H.

  • Page 4: Introduction

    A. Introduction Thank you for choosing the portable DVD player. The main features include a 22 CM Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD player. The unit applies the latest state of the art electronics and is designed for use in hotels, offices or your home.
  • Page 5 operation, never cover or block the slots and openings with a cloth or other material. Keep the unit away from an open flame such as fire, candle etc. It is hazardous to replace the battery incorrectly. Replace the battery only with the same or equivalent type, in order to protect the environment, please dispose the battery properly.

  • Page 6: Contents

    7.Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. This unit’s code is region 4. DVD is with other regional codes cannot be played in this unit C.
  • Page 7 Note: Unplug the apparatus when not using for a long time or intent to disconnect from the Mains power. 3. Installation In Vehicle 1) Take out carry bag and unit. Open them for installation. 2) Place unit into the bag across the waist flex and make sure four corners of unit are tightened by narrow flexes.

  • Page 8: Controls, Indicators, And Connectors

    E. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 2) Figure 2 1) DC 9V Input Jack 11) Up/Down/Left/Right/OK Button 2) AV Jack 12) Close place 3) AV In/Out SW 13) SD/MMC/MS Slot 4) USB Port 14) Power LED 5) E-Port 15) Remote Control Sensor 6) Power on/off SW...

  • Page 9: Loading And Playing A Disc

    2. Remote Control (Refer to figure 3) 1) Setup Button 2) Up Button 3) Skip- Button 4) Enter Button 5) Reverse/Left Keypad 6) DOWN Button 7) Numeric Button 8) Display Button 9) Zoom Button 10) DVD/SD-USB Button 11) Skip+ Button 12) A-B Repeat Button 13) Forward/Right Keypad 14) 1/All Repeat Button...

  • Page 10: Basic Operation

    G. Basic Operation Turn the unit on/off POWER Remove/load the disc OPEN Start Play/Execute item or setting PLAY /PAUSE Still Picture (1 time) Stop at the present playing point / STOP (2 times) Stop playing Go to the next chapter, track or scene NEXT during play back Go back to the previous chapter, track...

  • Page 11: Menu

    H. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu.
  • Page 12 2. SUBTITLE During disc playback press ‘SUB’ to select the subtitle language you desire*, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are multiple languages press ‘SUB’ again to select another subtitle language. To turn subtitles OFF, press the ‘SUB’...
  • Page 13 4. ANGLE During playback of a disc with angle function, press ‘Number Button’ to display the available angles for discs containing multi-angles*. *NOTE: Not all discs contain this feature. (1) Current Angle Number (2) Total Number of Angle Angle Screen Display 5.
  • Page 14 6. A-B REPEAT a. During playback press a first time ‘A-B’ to set the Starting Point A. b. Press ‘A-B’ a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B. c.

  • Page 15: Playing Audio Cds

    7. REPEAT a. During playback press ‘1/ALL REPEAT’ constantly to see the re- peat mode as right. Chapter: Repeat the current chapter Title: Repeat the current title All: Repeat all chapters and titles Repeat Off: Resume normal playback The ‘Chapter’ repeat display shows below for example: Chapter Repeat J.

  • Page 16: Playing Mp3 Discs

    Total Elapsed: The current track playing and the total time that the CD has been playing. Total Remain: The current track playing and the amount of time remaining on the CD. Display Off: The CD time Information will not be displayed. USING THE1/ALL REPEAT FEATURE The default mode for the Repeat feature is OFF.
  • Page 17 4. Use the ( NEXT ) button to move to the next song. Press the (PREVIOUS) button to move to the beginning of the previous song. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing 1/ALL REPEAT consecutively changes the repeat options: •...

  • Page 18: Playing Jpg Files

    L. Playing JPG files 1) Load the JPG Disc into tray. 2) Pressing the “MENU“ Key will return to the digest view,and choose the picture your desire by “RIGHT” and “LEFT”,and turn to the previous and next page by “PREVIOUS” or “NEXT”. 3) You can preview the JPG file which you selected by pressing “PLAY”...

  • Page 19: Connecting To Other Electronical Equipment

    M. Connecting to other Electronical Equipment 1. Connecting to a TV or another monitor ( Refer to Figure 4) a. Position the AV In/Out Switch to “Out” Position. b. Connect one end of the audio/video cable’s black (1/8” plug) plug into the unit’s DVD AV jack, and connect the other end to the AUDIO INPUT jacks on your TV or Monitor through AV adapter cable(white = left channel, red = right channel, yellow=video).
  • Page 20 3. Headphone Optional wired headphone may be used with the unit. Simply plug in the headset to either Headphone 1 jack or Headphone 2 jack on the right side of the DVD.( Refer to Figure 5) Figure 5 Plugging into Headphone jack 1 disables the internal speakers. 4.

  • Page 21: Setup

    N. Setup 1. General Setup Page 1) Press ‘SETUP’ to display the Main screen of the Setup Menu on the screen and “General Setup Page” appears. At the same time, “ ” is highlighted. 2) Press the ENTER button, “TV Display” is highlighted. 3) Press the button to select the other menus in general setup page.
  • Page 22 d) Last Memory *On: The unit will return to the last position on the disc. *Off: The unit will not return to the last position on the disc. Note: The Last position memory function only effect when OPEN operation and AV In/Out switching. 2.Video Quality Setup button to select “Video Quality 1)In Setup menu, Press the...
  • Page 23 4) Press to enter the sub menu. 5) Press the button to select the sub menu and press the ENTER to confirm your selection. 6) Repeat steps 3-5 for other menus. Note: Press to return the previous menu. a) Audio b) Subtitle c) Disc Menu Note: Language and subtitle selection is only available for discs that...

  • Page 24: Specifications

    O. Specifications Compatible DISC: DVD/CD/MP3/JPG/DIVX Signal system: PAL Panel size: 22 CM Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4V /10kOhm Audio S/N: Better than 60 dB Dynamic range : Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9V Power consumption: 12 W...
  • Page 25 battery in optimum condition. Under no circumstances short the bat- tery terminals, store the battery in a metal container, or leave the bat- tery in a humid or damp environment. Ideally, store the battery in an airtight container with desiccant or other dehumidifying agent. Each full recharge takes approximately six-hours and one full charge can provide power to the player for at least 2.5 hours.
  • Page 26 Installing the Battery Pack: 1. First, make sure the player is in “Power Off” mode and that the AC power supply has been disconnected. 2. Flip down the monitor. 3. Push the battery towards the rear flank of the player until it locks into position.

  • Page 27: Troubleshooting

    Q. Troubleshooting PROBLEM SOLUTION • Make sure your DVD is connected properly. No sound or Make sure all cables are securely inserted distorted sound into the appropriate jacks. • You can’t advance through the opening credits and warning information that appears Can’t advance at the beginning of movies because the disc through a movie...
  • Page 28 Troubleshooting (Cont) PROBLEM SOLUTION • Verify that the batteries in the remote are IR sensor fresh. inoperative • Verify that the remote sensor eye is not obstructed. • Verify that the infrared transmitter is affixed over the sensor eye of the com- ponent to be controlled.

  • Page 29: Game Controller Function Description

    R.Game Controller Function Description 1.Direction PADS-Up, Down,Left,Right 4 directions control.Control the direction of the game 2.Power On/Off Switch-Control the Main Unit’s Power ON/OFF function 3.Reset Button-Reset the Game to the Opening Screen 4.Power LED-Indicate the power 5.X Key-TURBO A Function Key 6.Y Key-TURBO B Function Key.
  • Page 30 Game Button Functions 1.SUPER FIGHT 1 Wonderful shooting + best Xtreme exciteing game. A key- Jump and B- Key Fire Bullet 2.F22 B Key Fire Bullet START Key Pause The Game Take as many weapons as possible. 3.HAPPY BIQI A Key- Start the game and jump. B Key- Attack.
  • Page 31 11.SHOOTING BALLONS A Key- Shoot the ballons LEFT/RIGHT- Control movement Shoot down the ballon which are floating in the air,you will be fail if the number of floating ballons reach to some certain amount. 12.EDACITY SNAKES Don’t come up against the wall or yourself 13.XMAS GIFT Get xmas gift,some gift can't get.enter the next level after get certain score.
  • Page 32 19.SHOOT Direction Key- Parallelism to the left of sight lens shoot, B Key- Parellelism the right of sight lens shoot Shoot the white balloon throw into the air 20.VECTRON Direction key + B Key- Move cursor. Direction key + A Key- Attack Attack position in the cursor area can be casting net.content:catch bird the casting net casting each level's certain track and keep integrit (it can't be pecked broken by the bird.you will be win after...
  • Page 33 25.SHOTPUT A/B Key continually or A,B strengthen power,rightward key run up press the time long or short of the upwards key control shotput angle. 26.PLUSH DOG A Key- Beat B Key start again,content:beat the dog come out from one of nine hole.To bombard the enemy 27.HUA RONG DAO Select Key- Choose.NORMAL:normal mode/CUSTOM:custom...
