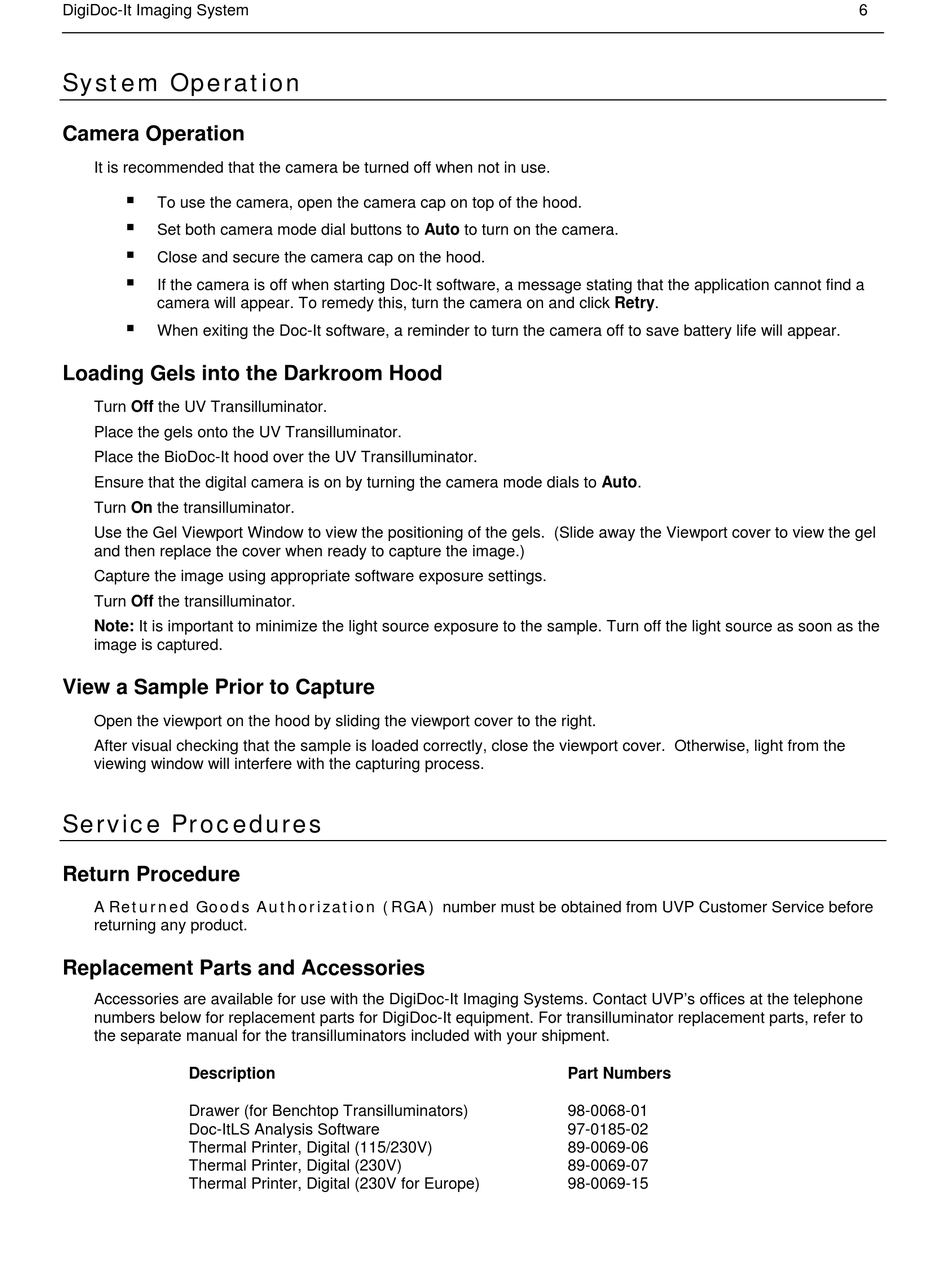

DigiDoc-It Imaging System

System Operation

Camera Operation
It is recommended that the camera be turned off when not in use.

To use the camera, open the camera cap on top of the hood.

Set both camera mode dial buttons to Auto to turn on the camera.

Close and secure the camera cap on the hood.

If the camera is off when starting Doc-It software, a message stating that the application cannot find a
camera will appear. To remedy this, turn the camera on and click Retry.

When exiting the Doc-It software, a reminder to turn the camera off to save battery life will appear.
Loading Gels into the Darkroom Hood
Turn Off the UV Transilluminator.
Place the gels onto the UV Transilluminator.
Place the BioDoc-It hood over the UV Transilluminator.
Ensure that the digital camera is on by turning the camera mode dials to Auto.
Turn On the transilluminator.
Use the Gel Viewport Window to view the positioning of the gels. (Slide away the Viewport cover to view the gel
and then replace the cover when ready to capture the image.)
Capture the image using appropriate software exposure settings.
Turn Off the transilluminator.
Note: It is important to minimize the light source exposure to the sample. Turn off the light source as soon as the
image is captured.
View a Sample Prior to Capture
Open the viewport on the hood by sliding the viewport cover to the right.
After visual checking that the sample is loaded correctly, close the viewport cover. Otherwise, light from the
viewing window will interfere with the capturing process.

Service Procedures

Return Procedure
A Returned Goods Authorization (RGA) number must be obtained from UVP Customer Service before
returning any product.

Replacement Parts and Accessories

Accessories are available for use with the DigiDoc-It Imaging Systems. Contact UVP's offices at the telephone
numbers below for replacement parts for DigiDoc-It equipment. For transilluminator replacement parts, refer to
the separate manual for the transilluminators included with your shipment.
Description
Drawer (for Benchtop Transilluminators)
Doc-ItLS Analysis Software
Thermal Printer, Digital (115/230V)
Thermal Printer, Digital (230V)
Thermal Printer, Digital (230V for Europe)
Part Numbers
98-0068-01
97-0185-02
89-0069-06
89-0069-07
98-0069-15
