Quick Start Manual
MobileView™ Tablet T750
(Cat. No. 2727-T7P30D1Fxx)

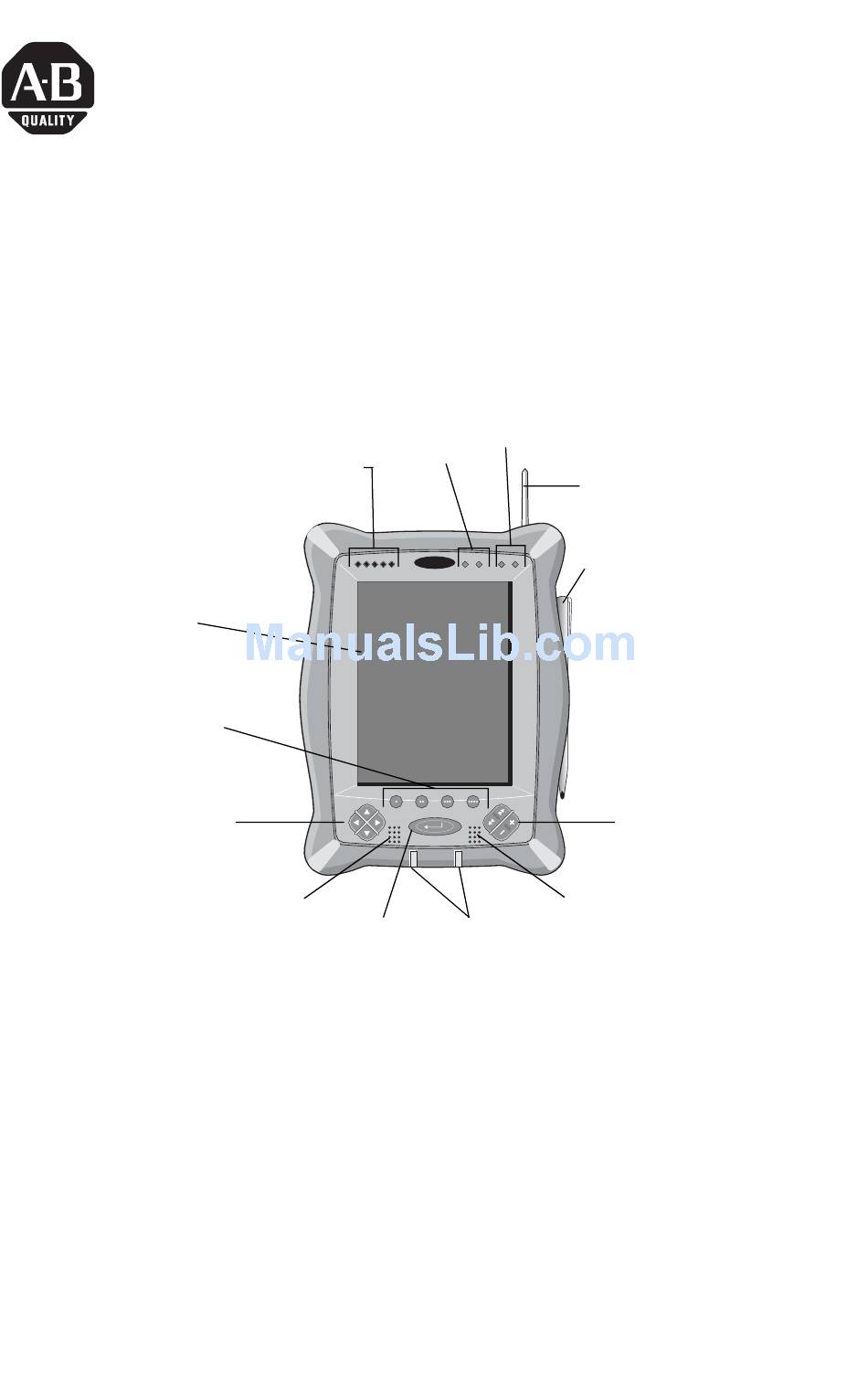

Touch Screen
Program Buttons
Navigational
Arrow Buttons
Inside. . .
Controls and Indicators ........................................................................................ 2
I/O Ports ............................................................................................................... 3
Installing the Battery ........................................................................................... 3
Startup/Power On ................................................................................................ 4
RF Network Configuration ................................................................................... 5
Starting Terminal Services ................................................................................... 8
Shut Down/Suspend ............................................................................................ 9
Cleaning the MobileView Tablet ....................................................................... 10
Specifications/Accessories ............................................................................... 10
For More Information ......................................................................................... 11
Screen Brightness
Battery Status LEDs
Speaker
Start/Enter
Screen Contrast
MobileView
Microphone
Notification Indicator LEDs
Publication 2727-QS004B-EN-P - September 2004
Quick Start
RF Antenna
Stylus
Next, Previous, Plus and
Minus buttons
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MobileView T750
Summary of Contents for MobileView T750
-
Page 1: Table Of Contents
Installing the Battery ................... 3 Startup/Power On ....................4 RF Network Configuration ................... 5 Starting Terminal Services ................... 8 Shut Down/Suspend .................... 9 Cleaning the MobileView Tablet ............... 10 Specifications/Accessories ................10 For More Information ..................11 Publication 2727-QS004B-EN-P - September 2004... -
Page 2: Controls And Indicators
Esc (Escape) key on a computer keyboard. Start/Enter Button: Press this button to power up the MobileView Tablet T750 after it has been powered down or to enter an active selection. Notification LEDs: The LEDs can glow green, yellow or red. They are programmable and can be used to notify the user of an event, such as a low battery warning. -
Page 3: I/O Ports
Tablet case, then slide the cover plate up. You should feel the battery snap into place. Install only the battery supplied with your MobileView Tablet. ATTENTION Use of any other battery could result in a hazard to the operator and damage to equipment. -
Page 4: Startup/Power On
If the battery level is sufficient enough, the following power-up screen should appear. If power-up screen does not appear, connect the MobileView Tablet to the ac adapter/charger to operate on ac power and charge the battery. Using the AC Adapter/Charger Plug the jack end of the cable from the AC adapter into the charger port as shown. -
Page 5: Rf Network Configuration
Remote Communication Your network configuration affects how you remotely communicate with an internet, intranet, or between two or more MobileView Tablets. Since there are a variety of possible network configurations, we recommend you contact your network administrator or internet service provider (ISP) to help set up remote communications. - Page 6 MobileView™ Tablet T750 5. Tap the IP address tab and select either “Obtain an IP address via DHCP” or “Specify an IP address”, depending on your network configuration. If you select to specify an IP address, you need to fill out the information in the three text boxes with information from your network administrator or ISP.
- Page 7 MobileView™ Tablet T750 Wireless Adapter Setup To communicate successfully, the internal Cisco wireless LAN adapter properties must be set to match your server’s wireless LAN adapter or wireless access points properties. To set internal Cisco wireless LAN adapter properties: 1. Tap the Start button on the task bar.
-
Page 8: Starting Terminal Services
MobileView™ Tablet T750 Status screen should indicate overall link status as “Good” or “Excellent”. Refer to publication 2727-UM001, MobileView Tablet T750 Users Manual for more troubleshooting information. Starting Terminal Services To connect to a terminal server as a CE client, follow these steps: 1. -
Page 9: Shut Down/Suspend
MobileView™ Tablet T750 2. Enter the Terminal Server’s name or valid TCP/IP address in the server box using the on-screen keyboard or select one of the server names or addresses listing in the recent servers box. 3. Tap the connect button. -
Page 10: Cleaning The Mobileview Tablet
MobileView™ Tablet T750 Cleaning the MobileView Tablet For the touch screen, clean gently with a lint-free cloth. Dampen with a mixture of 50% water and 50% Isopropyl Alcohol if needed. Clean the unit daily when working in harsh environments. For additional touch screen protection, apply the anti-glare protective overlay (Allen-Bradley catalog number 2727-TRG7) provided with the Tablet. -
Page 11: For More Information
2727-TRC1 For More Information Related Publications Refer to this Document Pub. No. A more detailed description on how to use your MobileView Tablet T750 User 2727-UM001 MobileView Tablet, accessories, specifications and Manual standards. Instructions on Flash Update procedures for your... - Page 12 MobileView is a trademark of Rockwell Automation. Windows CE is a trademark of Microsoft Corporation. Publication 2727-QS004B-EN-P - September 2004 PN 41061-272-01(2) Supersedes Publication 2727-QS004A-EN-P - March 2002 Copyright © 2004 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
