PWS6300S
If this product is used in a home, radio-wave interference may occur with other devices. In the case that it does
occur, the user is requested to try a variety of remedies to solve the problem.
Power source
?
PWS is equipped with DC24V input. If the supply power is other than DC24V, less or excess, it will severely
damage the PWS. Thus, check the power supply supporting the DC power regularly.
?
To avoid electronic shock, be sure the Power Cable is unplugged from the power outlet when connecting the
cable to the HMI.
Grounding
?
From the FG terminal at the rear side of PWS, please make sure the grounding is done properly.
?
When the FG terminal is connected, be sure the wire is grounded. Without grounding, PWS may be severely
affected by excess noise.
?
Use a cable at least 2 mm
Note that the ground cable must not be connected to the same ground point as the power circuit.
Installation
?
Mount the PWS from the front of a suitable preserved cut-out.
?
Attached the brackets from behind.
?
Fasten the screws of the brackets with proper force. Tightening too much may cause deformation of the front
case.
?
Communication cables must be separated from the power cables for operational circuits. Use shielded cables
or it may cause unpredictable problems.
?
Do not allow cut wires, fillings, or shavings to fall inside the HMI when drilling holes or connecting cables.
Environment
?
Do not install in areas subject to excessive dust, oily mist, conductive dust, corrosive gas, or flammable gas.
?
Do not mount in areas subject to shock or vibration. Do not mount in areas subject to high temperature,
moisture, or rain.
Indicated loss of life, severe personal injury, or substantial property damage will result if proper
precautions are not taken.
The followings are to be found in the box:
? HMI - PWS6300S
Installation Guide
Cautions
2
(AWG 14) to ground the HMI. Ground resistance must be less than 100O (class3).
Package Contents
HITECH
Electronics Corp.
Shift
(A..F)
BS
ESC
F7
F8
F9
A
B
C
7
8
9
F4
F5
F6
D
E
F
5
6
4
F1
F2
F3
1
2
3
F10
0
- 1 -
HITECH
Advertisement
Table of Contents
Related Manuals for Hitech PWS6300S
Summary of Contents for Hitech PWS6300S
-
Page 1: Package Contents

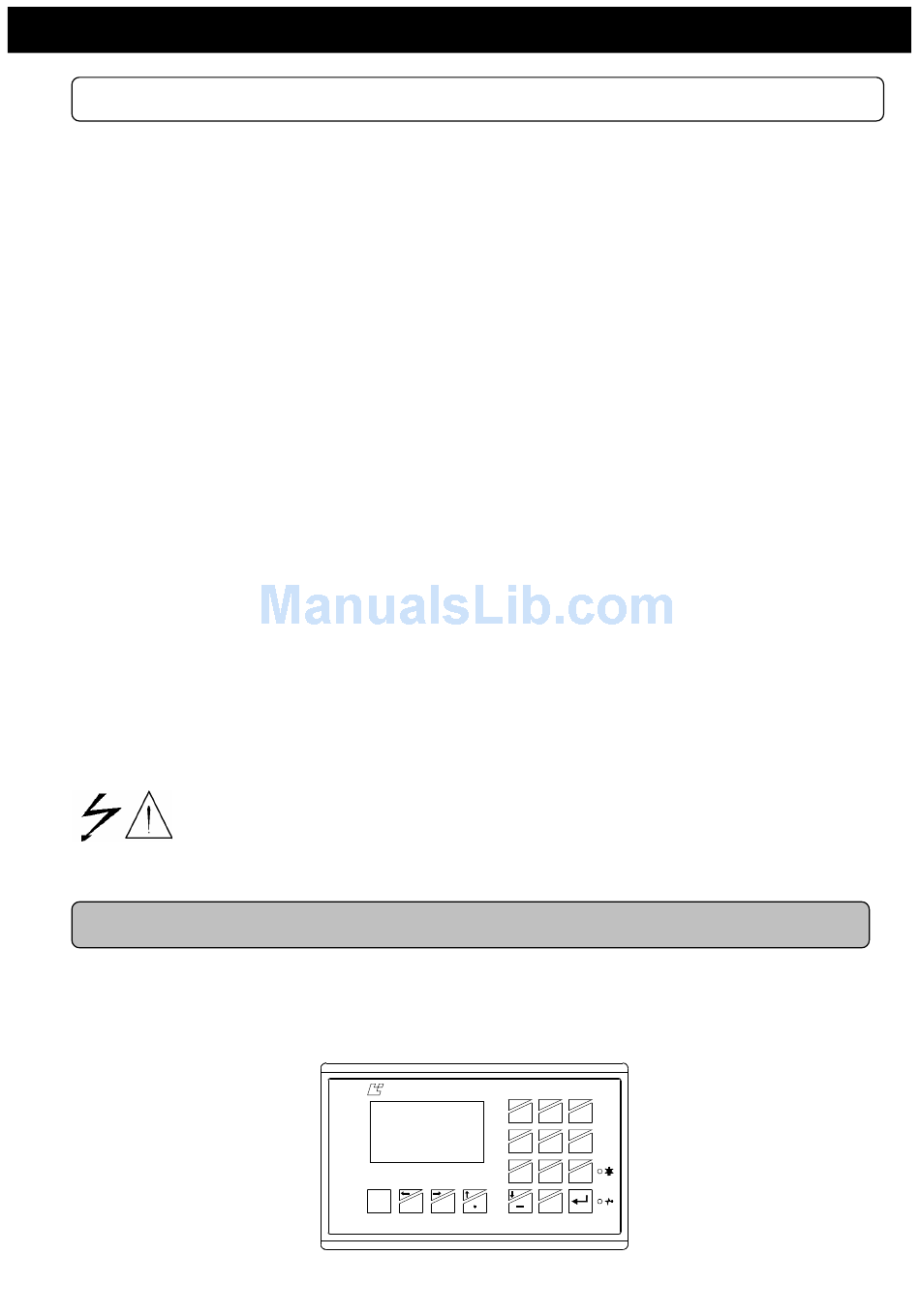

Indicated loss of life, severe personal injury, or substantial property damage will result if proper precautions are not taken. Package Contents The followings are to be found in the box: ? HMI - PWS6300S HITECH Electronics Corp. Shift (A..F) -
Page 2: Installation Fasteners
? Power Connector (wired into the DC power supply) ? 1 ? This Installation Guide Should you have any questions, please contact us. Product Specification Item PWS6300S Display Type Mono STN LCD Display Color Black / White; 16 gray levels Display Size 3.0"... - Page 3 Names of Parts Fixture mounting holes Power lamp Communication lamp Function & Number keys Display Front DIP Switch (1-10) Contrast adjustment DC power outlet COM2: RS232; RS422; RS485 Back - 3 -...
-
Page 4: Mounting Procedure
Dimension The followings are the external and cut-out dimensions. HITECH Electronics Corp. Shift (A..F) Unit:mm Mounting Procedure 1. Cut out the control front panel to match the dimensions shown below. (Unit: mm) Width Length - 4 -... - Page 5 2. Mount the HMI into the cut-out. Insert the fixtures to the holes on the unit and fasten the screws into the front panel. Do not tighten the screws with too much force or it may cause the deformation of the HMI. 3.
- Page 6 - 6 -...
-
Page 7: Dip Switches
Dip Switches Dip Switches Function Reserved Reserved Operation Mode Runs user application Runs burn-in test program Updates BIOS Runs bench test program Communication Parameters The HMI uses the communication parameters defined on the HMI’s Configuration screen for PLC communications. The HMI uses the communication parameters defined in ADP for PLC communications. - Page 8 Communication Port COM2 is used to connect a PLC and PWS6300S via RS232, RS422 or RS485. COM2 is a 9-pin female connector. Please also make sure that the connection is in accordance with the setting of Dip Switches. (For example, RS485 with SW10=ON) For the illustration of the connection between PWS and a PLC, please consult the information on the PLC.
-
Page 9: Power Supply And Wiring
