ARRAY GUIDE
Connectivity

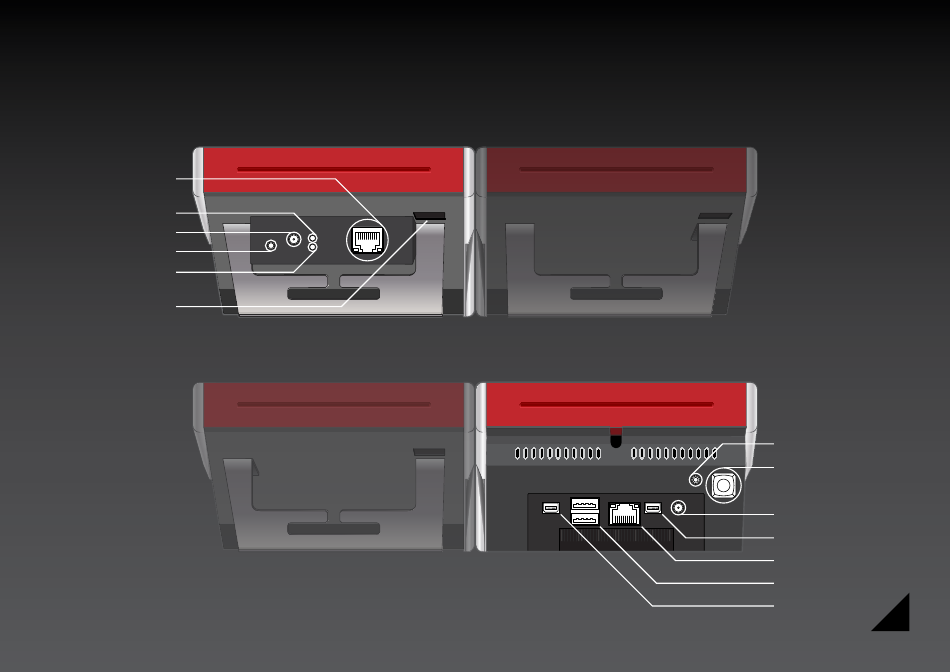

This illustration shows the back view of the Connector pod attached to a Satellite panel.
Network 10/100Mb and link
& activity LEDs for control
Power available LED
12V DC input
Soft touch power on / off
Power on LED
Hidden micro USB
connector for firmware
update and control
This illustration shows the back view of the Computer base attached to a Satellite panel.
Power on LED
Soft touch power on / off
12V DC input
Mini display port
Network port
Two USB 3 ports
Mini display port
1
Advertisement
Table of Contents
Related Manuals for Hitech ARRAY
Summary of Contents for Hitech ARRAY
- Page 1 ARRAY GUIDE Connectivity This illustration shows the back view of the Connector pod attached to a Satellite panel. Network 10/100Mb and link & activity LEDs for control Power available LED 12V DC input Soft touch power on / off Power on LED...
- Page 2 Assembly of two or more Array panels Insert the supplied data bus card(s) and push the panels together to form an Array Surface. An Array Surface can comprise up to four panels and requires just one power input and data connection through either a Connector pod or Computer base.
- Page 3 Fitting the stand With the Array panel face down on a soft surface fit the stand with the screws provided. When connecting the cables, thread them through the additional slot in the stand as shown in the illustration below to secure them and keep the cables tidy.
- Page 4 Configuration An Array panel is used to describe a single panel. The term Array Surface is given to a master panel with the addition of one, two or three satellite panels connected together to form a Surface. » When Array is first powered on and not connected to any devices it will show “NO COMMS” on the displays as shown in the two graphics on the left hand side »...
- Page 5 Screen Saver The screen saver for an Array panel can be set to Off / 1 minute / 30 minutes (default) / 60 minutes / 120 minutes. It is recommended that you use the shortest convenient time to prolong the life of the displays.
- Page 6 Array panel software upgrade - “Bootloader mode” To enter the configuration mode of any panel press the following two keys simultaneously whilst powering ON (lower left and lower right with the power on button): » Pressing the update software key - “Update s/w”...
- Page 7 » There is no need to change the panel interface COMMS to USB as software uploads always use Micro USB must be fitted this way up » Connect the Micro USB cable to the Array panel and the computer - be very careful to orientate the connector correctly »...
- Page 8 Copyright © 2015 Hi Tech Systems Ltd. Holbrook House, Oakley Lane, Basingstoke, Hampshire, RG23 7JY, UK All rights reserved | Specifications are subject to change without notice | E&OE All trademarks are the property of their respective owners | Registered in England 2130346 www.hitechsys.com...
