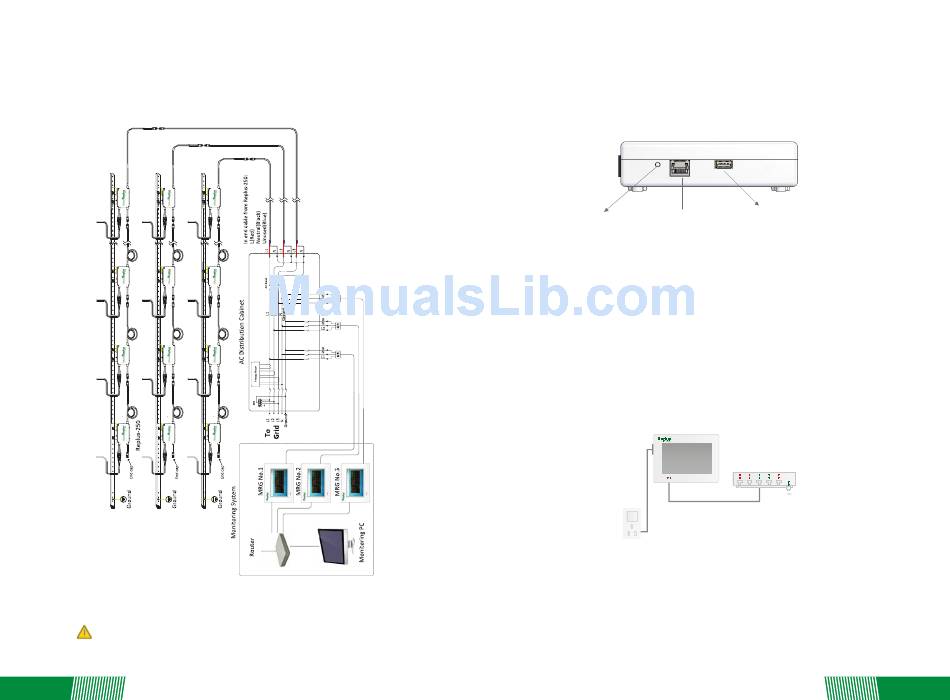

1.2 Three phase wiring diagram

Figure 1.2 Single phase wiring diagram
Three phase output must be installed a MRG on each phase, otherwise could not
detect the data of mirco inverters.
02

2. Installation

2.1 Hardware interface introduction

a) b)
Figure 2.1 Hardware interface introduction
a)Reset button: pressing this button will restart the system.
b)Ethernet port: connect to the router or your computer for monitoring
c)USB port: allow to connect a USB flash disk, keyboard, or mouse.

2.2 Installation and setting guide

Step1-Connect Ethernet and Power Cables
a) Plug the Ethernet cable into the Ethernet port on the MRG.
b) Plug the other end of the cable into a port on the broadband router.
c) Plug the AC cord into a dedicated wall outlet.
MRG
AC power cord
Ethernet cable
Figure 2.2.1 Connect Ethernet and Power Cables
Step2- Power up,click the setting button
Power up the MRG, wait 1-2 minutes and the main interface will be showed,and then click the
rightmost setting button to enter the setting interface.
c)
Broadband router
03
