Flash Programmer 2 S Installation Manual

Thermostat
Hide thumbs

Advertisement

Table of Contents

http://waterheatertimer.org/Intermatic-timers-and-manuals.html#thermostat
PRODUCT FUNCTIONS
•
Centralised programming for two heating zones
using two temperature modes:
•
Manual override function in comfort and reduced mode for each room.
PRINCIPLE OF OPERATION
•
Convectors equipped with a suitable electromechanical thermostat:
Reduced temperature obtained by supplying a resistance, which overrides the sensing element of the
thermostat.
•
Convectors equipped with a suitable electronic thermostat:
Reduced temperature achieved by delivering an alternating signal (coding adopted by all designers since
January 1994)
TECHNICAL CHARACTERISTICS
•
Time switch: Electronic clock with day and week programs.
•
Power backup: By lithium battery, backup guarantee for a total of 3 years minimum against mains failure
(battery life: 10 years)
•
Program increments: 1 minute
•
Number of zones: 2
•
Total maximum current rating: 0.5A
•
Dimensions: 167mm x 84mm x 44mm
INSTALLATION
1
Unscrew the time switch fixing
screw
4
Electrical connections (see page 2)
IMPORTANT
lead from the display panel into the
socket on the circuit board as shown
INSTALLATION GUIDE
HOW TO POSITION AND PROGRAM THE FLASH PROGRAMMER 2S
- Comfort temperature
- Reduced temperature
2
Insert the flying
Separate the base plate from
the casing using a screwdriver
5
Put outer casing back on
3
Surface-Mounted base with 2off
screw fixings Ø3mm maximum
6
Put back in and tighten the
time switch fixing screw
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Programmer 2 S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Flash Programmer 2 S

Summary of Contents for Flash Programmer 2 S

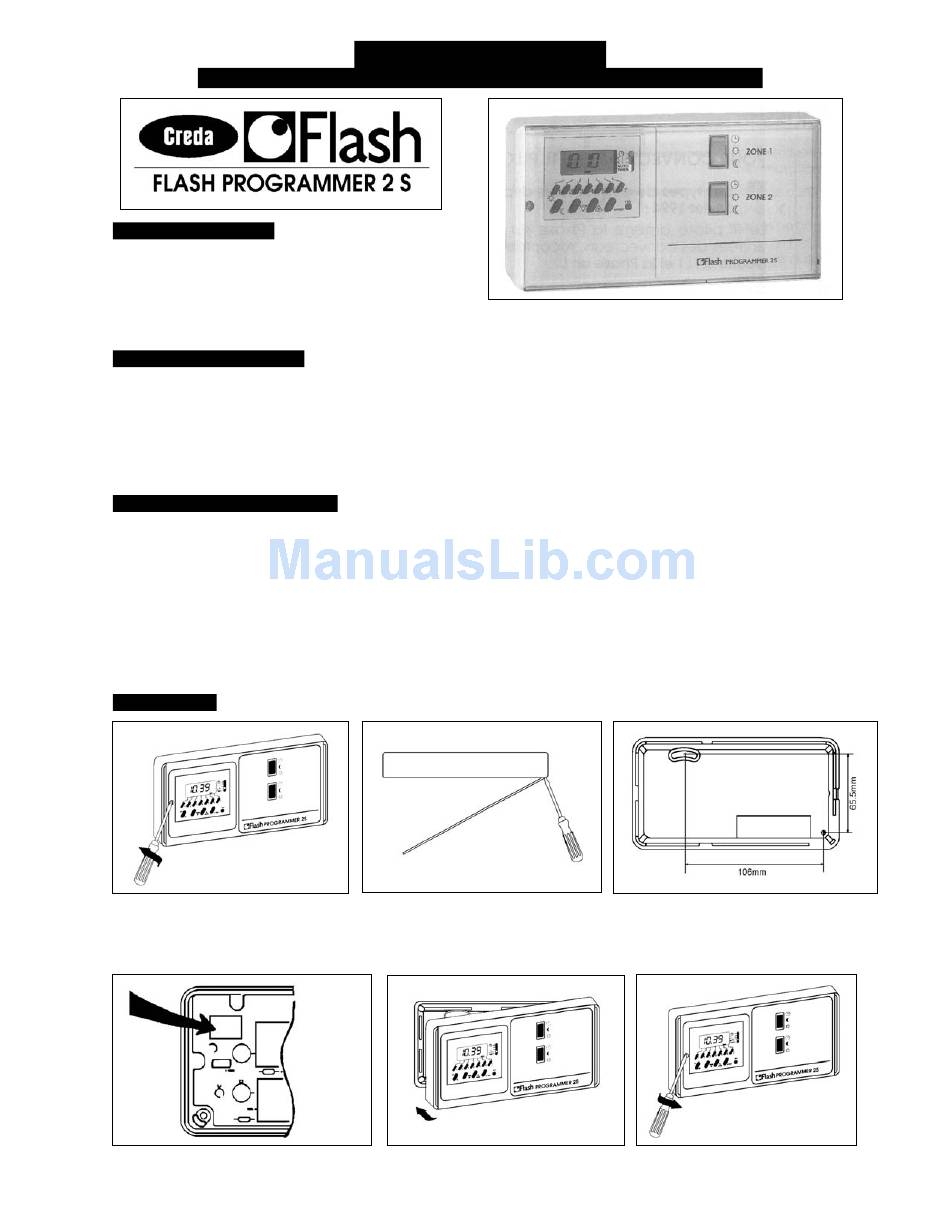

  • Page 1 INSTALLATION GUIDE HOW TO POSITION AND PROGRAM THE FLASH PROGRAMMER 2S PRODUCT FUNCTIONS • Centralised programming for two heating zones using two temperature modes: - Comfort temperature - Reduced temperature • Manual override function in comfort and reduced mode for each room.

  • Page 2: Electrical Connections

    CONNECTING THE PILOT WIRE Whether mechanical or electronic, regardless of make, since January 1997, the reduced mode of a thermostat which can be programmed via pilot wire, is achieved by transmission of an alternation signal via the pilot wire ELECTRICAL CONNECTIONS FOR PILOT WIRE CONVECTOR HEATERS 1.

  • Page 3: Principle Of Operation

    - Slightly lowering the temperature during the night or when you are not at home can achieve substantial savings. PRINCIPLE OF OPERATION FLASH PROGRAMMER 2S ALLOWS YOU TO PROGRAM TWO HEATING ZONES Example: - Day zone for the dining room, living room etc...
  • Page 4 BEFORE PROGRAMMING YOUR FLASH PROGRAMMER 2S TAKE TIME TO WRITE YOUR PROGRAM IN THE TABLES BELOW ZONE 1 (The first lines are filled with an example) ZONE 1 C1 Times Mon 1 Tue 2 Wed 3 Thu 4 Fri 5...

  • Page 5: Setting The Time

    1. SETTING THE TIME 2. PROGRAMMING...

  • Page 6: Auto Mode

    3. AUTO MODE 4. CHECKING SWITCHING TIMES...

  • Page 7: Modifying Or Cancelling Switching Times

    5. MODIFYING OR CANCELLING SWITCHING TIMES...

  • Page 8: Permanently Overriding Timer Mode

    6. PERMANENTLY OVERRIDING “TIMER” MODE 7. TEMPORARILY OVERRIDING “TIMER” MODE (HOLIDAYS etc) APPLIED ENERGY PRODUCTS LIMITED MORLEY WAY, PETERBOROUGH PE2 9JJ TEL +44 (0) 01733 456789 / FAX: +44 (0) 01733 310606 Website: www.creda-heating.co.uk (Leaflet No. 22671AA Revision. A)
