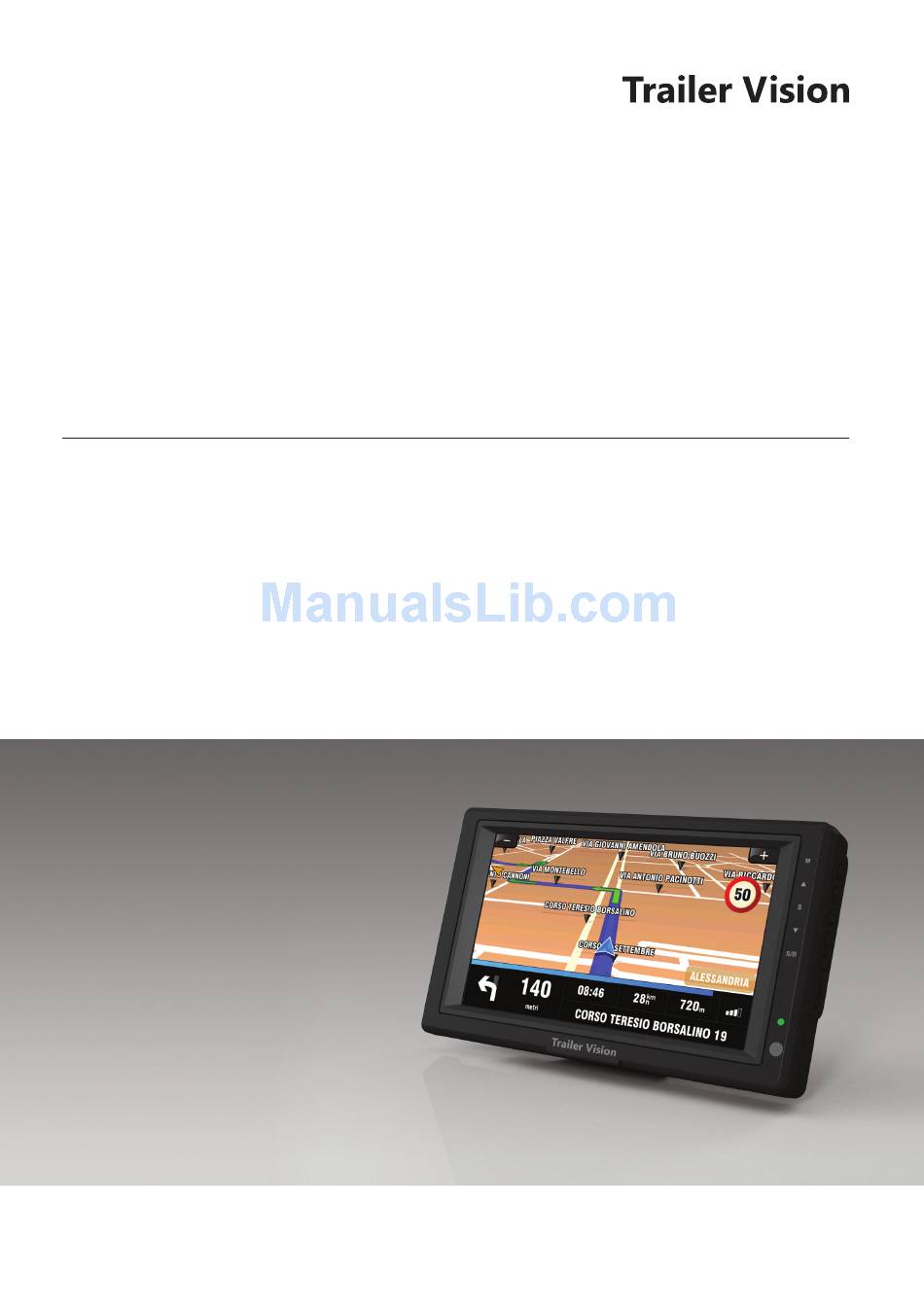

- Page 1 SPECIAL NAVIGATION INSTRUCTION MANUAL CN-900 (Navigation only) CN-900R (Rear view) CN-900T (Rear view + Telematics)
-
Page 2: Table Of Contents
CONTENTS SAFEGUARD INSTRUCTIONS SAFEGUARD INSTRUCTIONS ............. 3 Please read the “Safety Rules” carefully before using this product. Following the safety rules pre- vents users from damages related with the misuse of the product. It is very important to follow these safety rules. We state “Caution” and “Warning” to clarify any potential risk for a damage as- FEATURES .................. - Page 3 WARNING Please take care below notice for SD card. we do not have responsibility for data loss or damage caused by not complying below rules. Do not install product in direct sunlight, high temperature of humid areas. - It may cause to electronic shock or malfunction. Please use only authenticity SD card - Manufacturer do not have a responsibility for not in usage of adulterated card.
-
Page 4: Features
Please take care below notice for built-in battery. We do not have responsibility BOX CONTENTS for damage caused by not complying below rules. • Before use this products, please check below contents. If there is something missing parts, please Built-in battery is an auxiliary usage for safe saving recording image while the power is contact sales agent. -
Page 5: Function Of Each Part
FUNCTION OF EACH PART PREPARATION 1. SD CARD The SD card that included in the package contains map in- formation. Before you use the monitor, please insert the SD card to the slot. 2. BATTERY Built-in type battery will work if the power supplying is off (turn the ignition off). 1. -
Page 6: Operation
3. POWER ALERT OPERATION This monitor has built-in battery. When you turn the ignition off of the vehicle and switch on of the 1. POWER ON/OFF and RUN NAVIGATION monitor, it displays as below. Please press [OK] if you want use the monitor with battery. -
Page 7: Configuration
1. SYSTEM SETUP CONFIGURATION Press [M] button long (more than 3 seconds), then it goes to configuration mode. 1. SELECT STANDARD TIME ZONE - Set the standard time zone of the country by touching [+],[-] button. 2. DAYLIGHT SAVING TIME 1. - Page 8 2. CALIBRATION 3. REAR CAMERA SETUP If touch screen is not working well, please set up the “Calibration” . 1. BRIGHTNESS Please touch the icon [CALIBRATION] to enter the touch coordinate setting. Please touch the cross - Please set up the brightness with touching the [<], [>] buttons. mark(+) exactly on the center of screen.
-
Page 9: Firmware Update
FIRMWARE UPDATE * This product’s firm ware update will be made through SD card. Please follow below proce- dure for updating. 1. Copy the [_update] folder in the SD card’s root folder. The camera microphone sound will be output when it is become the full screen mode in condi- tion of “ON”... -
Page 10: Installation
INSTALLATION CABLE CONNECTION 1. SUCTION STAND Navigation (Standard) Stand bracket Angle control lever CIGAR CABLE 1. Assemble the monitor body and stand as like the picture. Bracket bolt 2. Adjust the angle and fix it with the bolt. Angle control Navigation + Rear view 3. -
Page 11: Troubleshooting
TROUBLESHOOTING It doesn’t upgrade for product. - Please check the update file whether it is put correctly into the SD card. - It should have update files inside “[__update]” folder of SD card. The screen does not turn on. - Please check the power supply. (Please make sure the power switch is “ON”) - Please check the status of Stand-by. -
Page 12: Specification
SPECIFICATIONS MEMO Navigation (Standard) Core Logic CLG-7700 ARM11 800MHz DDR II 256MB MEMORY 128 MB NAND FLASH Windows CE 6.0 Core OPERATING SYSTEM GNS7560 Glonave Solution GPS CHIPSET Built-in BATTERY 800x480px RESOLUTION 1W / mono SPEAKER TMC port EXTERNAL DC 12~24V POWER -20˚C ~ +60˚C OPERATING TEMPERATURE... - Page 13 INSTRUCTION MANUAL ver. 1.0 * Design and specifications are subject to change without notice. PRINTED IN KOREA...
