  • Page 1 Page 1 of 35 USER GUIDE FOR: XTV 106...

  • Page 2: Table Of Contents

    Page 2 of 35 TABLE OF CONTENTS 1- General Introduction. 2- Current Features. 3- Connections/Wiring Diagram. 4- Setup Menu Setting. 5- Remote Control Operation. 6- Available Packages. 7- Available Channels. 8- Available Subscriptions. 9- DVR Operation. 10- New Features 11- Coming Soon Features. 12- Available Accessories.

  • Page 3: 1- General Introduction

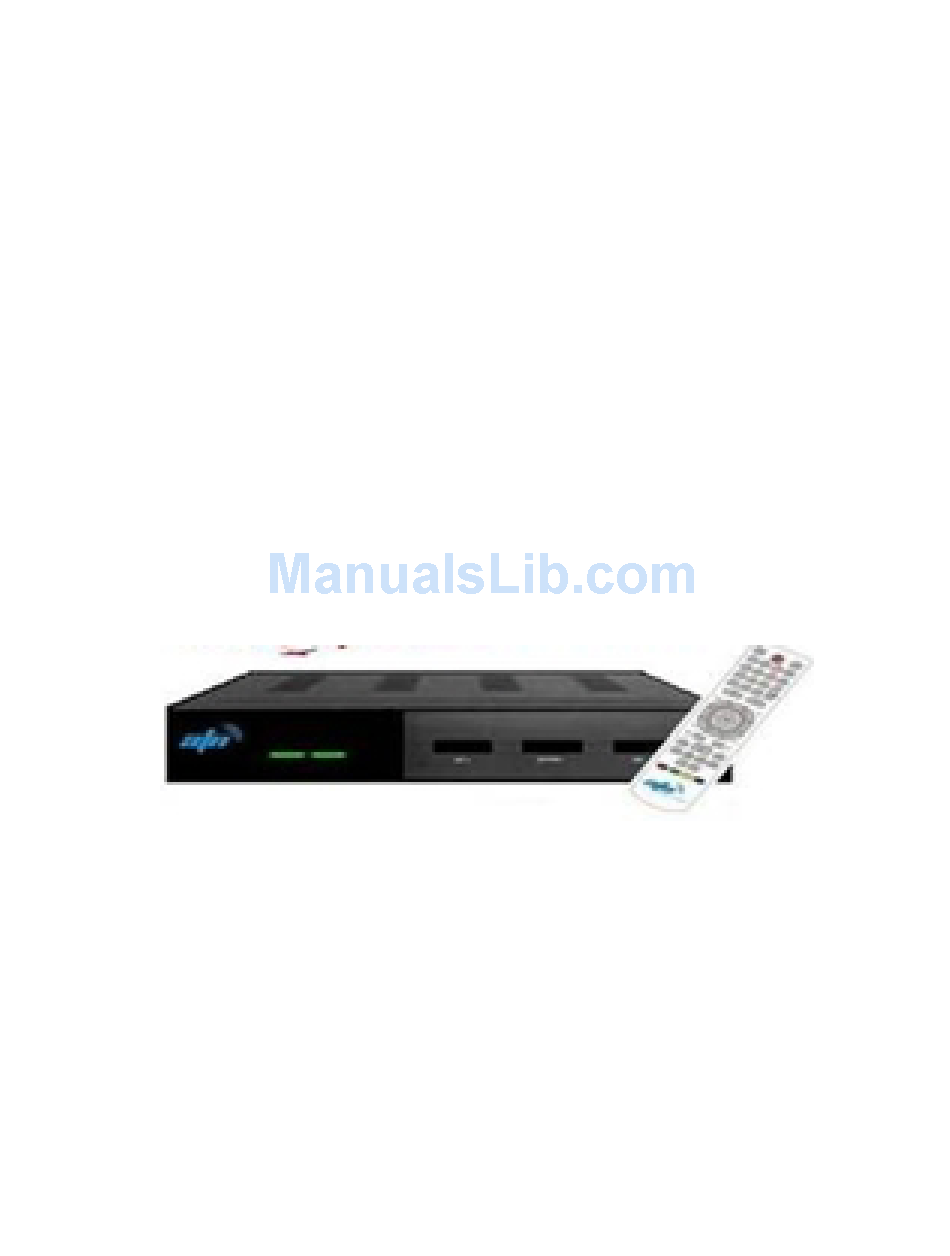

    Page 3 of 35 1 – General Introduction: The XTV 25 is one of the latest and most advanced ATN Network Receiver available in the market now. Right now, it can provide more than 700 Arabic favorite channels from Nilesat, TurkSat, EUTelSat, Hotbird and ARABSAT including special channels, directly through the Internet.

  • Page 4: 3- Connections/Wiring Diagram

    Page 4 of 35 You can use any type of the connections listed above to connect your box to the TV, and the really interesting part is that you can use the Composite & HDMI connection at the same time which makes you connect the receiver to 2 different TVs using 2 different types of cables.
  • Page 5 Page 5 of 35 A Closer View for the back panel of the receiver: The connection on the left corner is used to connect to an external infrared remote control extender if needed. A Closer View for the Front panel of the receiver: To know the status of the receiver, check the power/ (on-off-standby) indicator as shown in the screenshot below: If the On/off/Standby indicator is red, this means that the receiver is not active.
  • Page 6 Page 6 of 35 Note: When the receiver is switched off and if turned on again, by default the channel goes back to “1”, so you need to press the “OK” button and scroll to the channel you want, because it does not memorize the last channel viewed when the receiver is switched off.

  • Page 7: 4- Setup Menu Setting

    Page 7 of 35 4– Setup Menu Setting:...
  • Page 8 Page 8 of 35 The Setup menu can be accessed by pressing the “Setup” button on your remote to access some advanced settings for the receiver. To move through each item, use the up/down arrow keys, to adjust the value, using the left/right arrow keys located around the “OK” button. 1- Saturation: If you realize that the picture is not clear or saturated enough, you can adjust that setting;...

  • Page 9: 5- Remote Control Operation

    Page 9 of 35 6- SD Output: This can be used to adjust the color format, in USA, this setting should always be NTSC, in other Europe/Middle East countries this needs to be set to PAL to be able to see the picture.
  • Page 10 Page 10 of 35 8- Channel Buttons: For changing channels or Activation Code Input. 9- Back Space Button: To remove previous character on screen. 10- Volume Up/Down: To Adjust volume level 11- Channel Up/Down: To Change Channel Numbers sequentially. 12- Up/Down – Left/Right Navigation Buttons. 13- “OK”...

  • Page 11: 6- Available Packages

    Page 11 of 35 10- Volume Up/Down: To Adjust volume level 11- Channel Up/Down: To Change Channel Numbers sequentially. 12- Up/Down – Left/Right Navigation Buttons. 13- “OK” Button: to access the channel menu or confirm any setting. 14- Remove Favorite Channel or access YouTube video. 15- Add To Favorite Channel 16- Hide/Unhide left column “Channel”...

  • Page 12: 7- Available Channels

    Page 12 of 35 1- “ATN All Channels”, which includes all available channels. 2- “ART” With one subscription you get access to all the 6 packages for only $35/month. ART Package comes with separate subscription for just $5/month. Having organized this way will make it easy for someone who only wants to view a bundled package to view only channels related to it, without having to view the rest of the channels.
  • Page 13 Page 13 of 35 The left menus are Channels Available in each entire package. To add a channel to the Favorites, select the channel you want from the left menu where the selected channel has a red rectangle around it, then press the “Green” button, and it will be moved to the Favorites Menu.
  • Page 14 Page 14 of 35 Note 1: The channels/Favorite management buttons can only be used when the pop up window is displayed, it will function for youtube & DVR feature if it is used outside that pop-up menu. Note 2: The new channels might not be always fast, it might take time to update, but you can go to the site and take a look and compare between this list and the list on the website for more accuracy.
  • Page 15 ATHAKAFIA - (270) DELTA - (238) TIMESHIFT - (519) AL-MOUSOL - (177) ALHAYAT CINEMA - ALOLA ANT - (305) ATN CINEMA - (16) DISCOVER ISLAM - (570) ABU DHABI SPORT 1 - (210) AL-MUSTAKILLAH - (316) (71) ALOLA INTERNATIONAL 2 -...
  • Page 16 Page 16 of 35 IMAM HUSEIN 2 - (574) MBC 1 TIMESHIFT - (23) TIMESHIFT - SALAH ALDIN - (180) VIN TV - (384) (418) INFINITY - (89) MBC 2 - (24) (521) SAMA ALMOSOUL - (178) WANASAH - (90) THAQALYN TV - (576) IQRA - (331) MBC 2 TIMESHIFT - (25)
  • Page 17 Page 17 of 35 KRAL TV - (15) YOL TV - (32) KURD 1 TV - (117) YURDUM TV - (47) KURDISTAND - (1) KURDSAT - (119) MALATYA TV - (634) III- African Channels: AL-SAEDA - (524) BLUE NILE - (411) ERITREA - (506) ETIOPIA - (795) HC SOMALI - (856)
  • Page 18 Page 18 of 35 Kurdish Channels: AGHANINA MUSIC - (1035) G KURDISTAN - (859) HANEEN MUSIC - (764) HAWLER - (963) IQRA - (331) KANAL 4 TV - (984) KIRKUK TV - (1061) KNN TV - (2) KOMALA TV - (756) KOREK TV - (983) KURD 1 TV - (1060) KURDSAT - (3)

  • Page 19: 8- Available Subscriptions

    Page 19 of 35 8- Available Subscriptions: Subscriptions can be purchased in 4 different options For Arabic & ART Packages. 1- Every Month. 2- Every 3 Months. 3- Every 6 Months. 4- Every 12 Months. Purchasing Arabic Package, will allow you to access all channels available (Arabic, Persian, Turkish, Indian, African, Pakistani, Kurdish) on the box except the ART channels with is sold separately.
  • Page 20 Page 20 of 35 Type 1: Type 2: On the remote control, a) The Back & Next Buttons are used to navigate through the entire contents of the USB Thumb Drive. b) The RR & FF is used to move the beginning or the end of the recordings. c) The Play/Pause Button is used to play existing recordings as well as pause any recording.

  • Page 21: 10- New Features

    Page 21 of 35 To cancel and go back to previous page, select the “Cancel” Button and click “OK” If the recording was set to record now, the event will start to record right away and a small red icon will display on the corner of the TV indicating that recording is in progress. To stop the recording, simply press the “Stop”...

  • Page 22: 11- Coming Soon Features

    2) Another new feature is called “ATN Live TV”, this is a new feature that has been introduced that allows you to watch most of the live channels directly on your “iphone”, “ipad”, “ipod”, and even “Android phones”, as well as watch these exciting channels.

  • Page 23: 12- Available Accessories

    Page 23 of 35 4- Adding more features to the Receiver 5- New Receiver that supports wireless connectivity. 12- Available Accessories: As mentioned from the wiring diagram that this receiver supports only wired connectivity to the internet, it does not include a wireless connectivity. But if your receiver and the Router are away from each other, and there is no way to run a network wire between the TV &...
  • Page 24 Page 24 of 35 All you have to do is simply plug the 2 adapters in any power outlet. Note: The adapter should be plugged directly in the plate on the wall, it should not be connected to any extension cord or surge protector, as this won’t guarantee the operation of the devices. Read the attached manual of the device on how to connect it.
  • Page 25 Page 25 of 35 HDMI Splitter can be used if you want to split the HDMI signal to 1 or more TVs at the same time, The Screenshot below is used to connect 2 TVs to 1 Receiver. If you need more ports there are adapters can split the signal to 3 or more TVs depending on the need.
  • Page 26 Page 26 of 35 If you are interested to purchase this device, call us and we’ll explain to you if it can work with your home structure. In order for the device to work, the front view of these 2 devices needs to be hanged on a wall that is open, because if it is put in a location that is closed will not get a signal.
  • Page 27 Page 27 of 35 These 2 units come together and can be used in conjunction with the HDMI Splitter in section C.
  • Page 28 Page 28 of 35 f) Wireless Audio/Video Transmitter: If you need a regular wireless audio/video transmitter that uses the Composite Audio/Video connection without having to use the HDMI connection to connect to a 2 TV, then this device is the right for you. Wireless Transmitter and Receiver Kit: 5.8 GHz, Video/Audio, 7 Channels Selectable.
  • Page 29 Page 29 of 35 g) Infrared Remote Control Transmitter/Receiver: If you need a remote extender that extends to your 2 TV that is located anywhere around the house, then the device below is the right fit, You connect the transmitter cable to your Receiver’s infrared receiver, and connect both devices to the power line.

  • Page 30: 13- Troubleshooting Error Messages

    Page 30 of 35 13- Troubleshooting Error Messages: You will see this Error Message when ATN has bad weather and/or the signal is from the satellite is low. The picture will come back very soon This error message means that the connection between your IP TV Receiver and the Internet is lost.
  • Page 31 Page 31 of 35 To try to resolve this issue, try 1st to reboot your Internet Modem and Wireless, and then reboot your IPTV Receiver. If you still see this error message after doing the steps above, please contact us to help you resolve this issue.

  • Page 32: 14- Billing Questions

    Page 32 of 35 If you are having other issues with your receiver call us so we can help you out. If you want to call us, please make sure that the internet connection is working, and you can access websites using a regular PC.

  • Page 33: 15- Technical Questions

    Page 33 of 35 15- Technical Questions: If you have any technical questions related to accessories to use, channel information, other error messages on the screen that was not listed in section 13, please feel free to call us so we can try to resolve the issue for you.

  • Page 34: 17- Receiver Activation

    Page 34 of 35 17- Receiver Activation/Activation Process: After you purchase your receiver, by default the receiver is not activated, and it requires between 24 to 36 hours for the activation to be complete. Once Receiver purchased, we will be notified of the date &...
  • Page 35 Page 35 of 35 You will be presented with the screen below asking for activation code: Enter the activation code provided into the highlighted box above. Note: make sure the digits entered are all Numeric, and press the OK button after each digit to make sure that it is saved there, once you press on every digit you will get a drop down list containing characters &...
