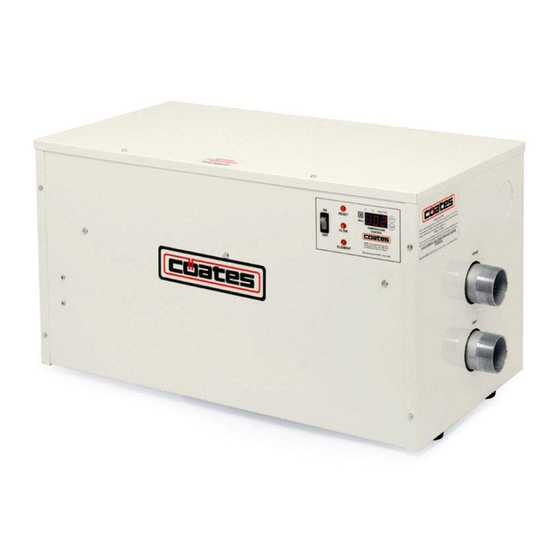

INSTALLATION, OPERATION
AND MAINTENANCE
CE SERIES
12, 15 & 18kW
208V, 240V, 480V
SINGLE & THREE PHASE
CHECK ALL ELECTRICAL CONNECTIONS TO ALL COMPONENTS
WITHIN THE HEATER FOR TIGHTNESS. CONNECTIONS CAN
BECOME LOOSE DURING SHIPMENT AND HANDLING.
THE ELECTRICAL INSTALLATION MUST BE IN ACCORDANCE
WITH ARTICLE 680 OF THE NATIONAL ELECTRICAL CODE.
Only qualified personnel, as defined by National Electric Code Article
100, should install and maintain this equipment. Unauthorized
alteration or improper maintenance of this unit may release the
manufacturer from any warranty claims. The installation must be in
accordance with the instructions in this manual and applicable local
POOL HEATER
MODELS:
CPH SERIES
24 & 30kW
208V, 240V, 480V
SINGLE & THREE PHASE
BEFORE YOU BEGIN
CAUTION
WARNING
plumbing and electrical codes.
PHS SERIES
36, 45, 54 & 57kW
208V, 240V, 480V
SINGLE & THREE
Publication 1/12
Advertisement
Related Manuals for Coates CE SERIES
Summary of Contents for Coates CE SERIES
- Page 1 POOL HEATER INSTALLATION, OPERATION AND MAINTENANCE MODELS: CE SERIES CPH SERIES PHS SERIES 12, 15 & 18kW 24 & 30kW 36, 45, 54 & 57kW 208V, 240V, 480V 208V, 240V, 480V 208V, 240V, 480V SINGLE & THREE PHASE SINGLE & THREE PHASE SINGLE &...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using this electrical equipment, basic safety precautions should always be followed, including the following. 1) READ AND FOLLOW ALL INSTRUCTIONS. 2) To reduce the risk of injury. A) The water in a pool or tub should never exceed 104°F (40°C). A water temperature in excess of 104°F is considered unsafe for all persons. - Page 3 DESCRIPTION Installation: Location The Coates Swimming Pool Heater consists of a Coates swimming pool heaters are quiet, do not expel heating tank with external enclosure, and the electrical exhaust fumes, and may be conveniently located in a heating and control system. In order to help maintain shed or basement.
- Page 4 the heater. All other internal connections are completed Installation: Plumbing and tested at the factory. Pipe the heater as shown in Figure 2 to the inlet and Ground wires must be insulated copper conductor and outlet openings on the right side. Connect the heater the same size as supply wiring, but not less than #12 in line between the filter discharge and pool.
- Page 5 CONTROL PANEL FAHRENHEIT TO CELCIUS: Press the MENU button twice and the current temperature scale will be displayed ( F or C ). Press the INDICATOR LIGHTS buttons to toggle between F and C. The control has three indicator lights and a lighted ON- OFF rocker switch.
- Page 6 Page 6...
- Page 7 Page 7...
-
Page 8: Water Chemistry
PROTECTING YOUR COATES HEATER WITH PROPER WATER CHEMISTRY Proper water balance is important to extending the life of your Coates Heater. While pH control is critical, the control of alkalinity and calcium hardness will protect against scaling and also help to prevent corrosion. - Page 9 HEATER GROUND TERMINAL BRASS ENCLOSURE POOL COPPER GROUND GROUND ALUMINUM FLOW FLOW SWITCH TB1 FOR REMOTE TEMPERATURE CONTROL (IF USED). SEE INSTRUCTION MANUAL FOR COMPONENT IDENTIFICATION. ALL WIRING TO BE 105°C INSULATED, MINIMUM. CONTROL CIRCUIT WIRING; 14 AWG. POWER CIRCUIT WIRING; AS NOTED. LEGEND;...
- Page 10 HEATER GROUND TERMINAL BRASS TB1 FOR REMOTE TEMPERATURE COPPER CONTROL (IF USED). ALUMINUM ENCLOSURE POOL SEE INSTRUCTION MANUAL FOR COMPONENT GROUND GROUND IDENTIFICATION. FLOW #8 #8 #8 #8 #8 #8 #8 #8 #8 F1 F1 F1 F1 F1 F1 ALL WIRING TO BE 105°C INSULATED, MINIMUM. CONTROL CIRCUIT WIRING;...
- Page 11 HEATER GROUND TERMINAL ENCLOSURE POOL GROUND GROUND BRASS COPPER ALUMINUM FLOW TB1 FOR REMOTE TEMPERATURE CONTROL (IF USED). SEE INSTRUCTION MANUAL FOR COMPONENT IDENTIFICATION. ALL WIRING TO BE 105°C INSULATED, MINIMUM. CONTROL CIRCUIT WIRING; 14 AWG. POWER CIRCUIT WIRING; AS NOTED. LEGEND;...
- Page 12 HEATER GROUND TERMINAL BRASS COPPER ALUMINUM ENCLOSURE POOL GROUND GROUND FLOW TB1 FOR REMOTE TEMPERATURE CONTROL (IF USED). SEE INSTRUCTION MANUAL FOR COMPONENT IDENTIFICATION. 3. ALL WIRING TO BE 105°C INSULATED, MINIMUM. CONTROL CIRCUIT WIRING; 14 AWG. POWER CIRCUIT WIRING; AS NOTED. TEMP LEGEND;...
- Page 13 HEATER GROUND TERMINAL TB1 FOR REMOTE TEMPERATURE CONTROL (IF USED). SEE INSTRUCTION MANUAL FOR COMPONENT BRASS IDENTIFICATION. ENCLOSURE POOL COPPER GROUND GROUND ALL WIRING TO BE 105°C INSULATED, MINIMUM. ALUMINUM CONTROL CIRCUIT WIRING; 14 AWG. POWER CIRCUIT WIRING; AS NOTED. FLOW LEGEND;...
- Page 14 HEATER GROUND TERMINAL ENCLOSURE POOL GROUND GROUND BRASS 240V COPPER ALUMINUM FLOW TB1 FOR REMOTE TEMPERATURE CONTROL (IF USED). SEE INSTRUCTION MANUAL FOR COMPONENT IDENTIFICATION. ALL WIRING TO BE 105°C INSULATED, MINIMUM. CONTROL CIRCUIT WIRING; 14 AWG. POWER CIRCUIT WIRING; AS NOTED. LEGEND;...
- Page 15 HEATER GROUND TERMINAL BRASS COPPER ALUMINUM 240V ENCLOSURE POOL GROUND GROUND FLOW TB1 FOR REMOTE TEMPERATURE CONTROL (IF USED). SEE INSTRUCTION MANUAL FOR COMPONENT IDENTIFICATION. 3. ALL WIRING TO BE 105°C INSULATED, MINIMUM. CONTROL CIRCUIT WIRING; 14 AWG. POWER CIRCUIT WIRING; AS NOTED. TEMP LEGEND;...
-
Page 16: Limited Warranty
