Summary of Contents for Matrix MW001
- Page 1 MW001 Integrated Dishwasher Manual for Installation, Use and Maintenance...
- Page 2 Important The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or who lack experience of knowledge about it, unless they had supervision or instructions on how to use the appliance by someone who is responsible for their safety.
-
Page 3: Before First Use
• If you are leaving the dishwasher for an extended period you should leave the door slightly open to prevent the formation of unpleasant smells. • The plastic housing on the water inlet pipe contains an electrically operated valve. The wires that connect to this valve are inside the inlet hose. -
Page 4: Getting To Know Your Dishwasher

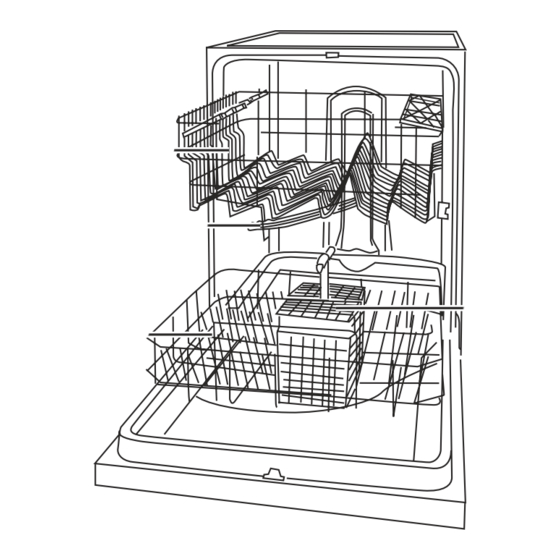

Quick Wash Indicator Light Getting to know your dishwasher Delay Timer Power Button Programme Quick Wash Button Selection Button Button Salt Indicator Delay Timer Indicator Programme Indicator Lights Light Lights Close-up view (control panel) Power button MW001IN Programme indicator lights Programme selection button Dishwasher Interior a Upper Rack... - Page 5 Detergent To fill the detergent dispenser 1. Push the latch to open the dispenser. 2. Add the required amount of detergent to the main detergent dispenser. If your dishes are in need of an intensive wash, then add 5 cm detergent into the prewash section of the dispenser.
-
Page 6: Softener Adjustment
Softener Adjustment The efficiency of your dishwasher depends on the softness of the tap water. To ensure best efficiency, the dishwasher is equipped with a system that reduces the hardness in the mains water supply. The efficiency will increase when the system is correctly set. To find out the water harness level of your water supply contact your local water board. -
Page 7: Rinse Aid
Rinse Aid To fill the rinse aid compartment 1. Open the rinse aid compartment by turning and removing the cap as shown in figure5. 2. Fill the rinse aid compartment until the rinse aid indicator goes dark, as shown in figure 6 (where “a” indicates the compartment is empty, and “b”... -
Page 8: General Information
General Information To adjust the height of the upper basket: • Open the basket retaining clips, as shown in figure 8, by turning them to Dishwasher Baskets the side. Dishwasher Baskets • Remove the upper basket, and relocate the alternate set of wheels on the To adjust the height of the upper basket: runner, as shown in figure 9, pushing the basket back into place. -
Page 9: Technical Information
Technical Information Width 59.6 cm Depth 55 cm Height 82 cm Capacity 12 standard place settings Mains water pressure 0.03-0.6 MPa Power voltage 230-240V ~50 Hz Rated current input 13 A Total absorbed power 1950 W... -
Page 10: Programme Listing
Programme Listing Programme Intensive Normal Light Quick wash Prewash names and wash wash wash wash No heat temperatures Level of soil High Medium Small Small Detergent 5+25 5+25 5+25 0 +15 amount Prewash + Main Compartment (g) Hot prewash Cold prewash Cold prewash Prewash wash... -
Page 11: Care And Maintenance
Care and Maintenance Before beginning any care or maintenance, you should always disconnect the appliance from the electricity supply, and also turn off the water supply. Door seals Wipe the dishwasher door seals regularly with a damp cloth to remove any residue. -
Page 12: Failure Codes And Troubleshooting
Failure Codes and Troubleshooting Failure Codes and Troubleshooting Failure Codes and Troubleshooting Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance. Your dishwasher control panel is equipped with a diagnostic display to help in the event of a problem with the appliance. The programme indicators also serve as a diagnostic display to help in the event of a problem with the appliance. - Page 13 Failure Codes and Troubleshooting Problem possible cause Check the plug, fuse and circuit breakers of the mains supply The water tap is turned off The programme will not start The dishwasher door is not fully closed The water inlet filter or the machine filters are blocked Water remains inside the dishwasher at the end of the The water drain hose is blocked or kinked programme...
-
Page 14: Electrical Information
Electrical information Electrical information Warning! This appliance must be earthed. Warning! This appliance must be earthed. The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug, The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. - Page 15 Important installation information • Do not install this appliance if it is damaged in any way. Installing damage appliance may invalidate the warranty. Installation • The water supply tap should be located in an adjacent cupboard so the it Installation can be accessed after installation.
- Page 16 Serviced by To contact our Customer Care Department, or for Service, please contact us on the details below. Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
