Rear Panel - Intracom jetSpeed 520 User Manual

User Manual
jetSpeed 520
Getting Started
1.3.2

REAR PANEL

LABEL
1 PWR
2 CONSOLE
3 ETHERNET
4 USB
5 RESET
6 WAN
page 6 / 84

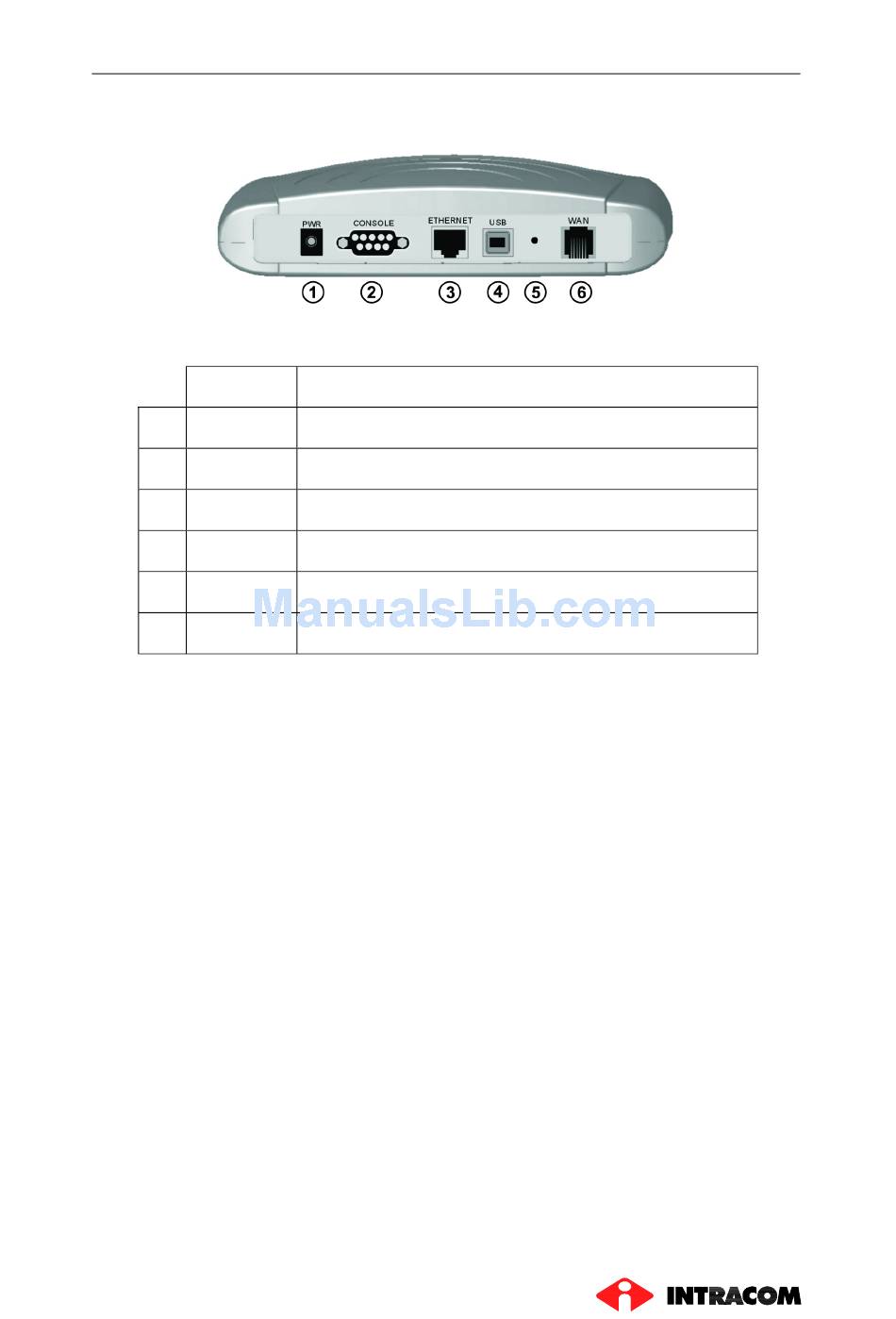

Fig. 1-2
DESCRIPTION
Power jack; connect to a power adapter
Serial port; connect to an ASCII data terminal
RJ-45 port; connect to a PC or LAN
USB port; connect to a PC
Resets jetSpeed 520 to its factory default settings
RJ-11port; connect to the ADSL outlet
Table 1-2
Ver.1.0
10/03
