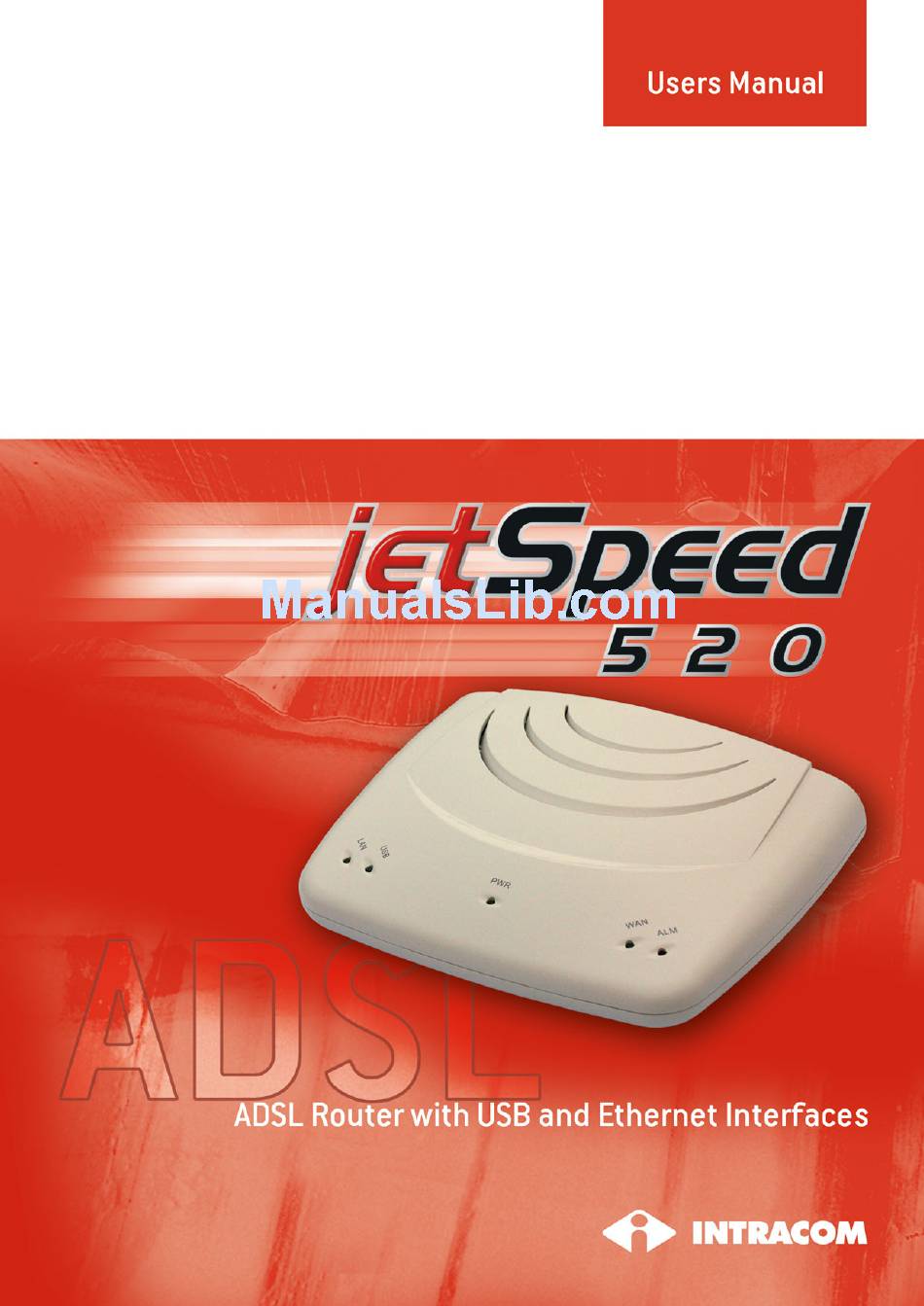

Intracom jetSpeed 520 User Manual

Adsl router with usb and ethernet interfaces
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the jetSpeed 520 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intracom jetSpeed 520

  • Page 3: Table Of Contents

    Ver.1.0 User Manual 10/03 jetSpeed 520 Getting Started Contents GETTING STARTED ............ 3 OVERVIEW ............... 3 PACKAGING ..............4 APPEARANCE ..............5 1.3.1 FRONT PANEL ..................5 1.3.2 REAR PANEL ..................6 HARDWARE INSTALLATION ..........7 MANAGEMENT ..............8 DEFAULT VALUES ............9 SOFTWARE UPGRADE ............
  • Page 4 User Manual Ver.1.0 jetSpeed 520 10/03 Getting Started (page intentionally left blank) page 2 / 84...

  • Page 5: Getting Started

    ITU G.992.1 (G.dmt) • G.992.2 (G.lite) jetSpeed 520 provides high-speed Internet access via one WAN port over ATM over ADSL and also connects to the corporate network via one 10/100BaseT Ethernet port and one USB port. jetSpeed 520 allows service providers to deploy ADSL rapidly over existing wire infrastructure (POTS or ISDN line).

  • Page 6: Packaging

    RJ-45 Cable (Ethernet Cable) RJ-11 Cable (Telephone Cable) USB Cable AC Adapter CD-ROM includes User’s Manual and USB Driver Line filters for jetSpeed 520 or a central splitter for jetSpeed 520i and an additional RJ-11 Cable Line Filter Splitter page 4 / 84...

  • Page 7: Appearance

    Ver.1.0 User Manual 10/03 jetSpeed 520 Getting Started APPEARANCE 1.3.1 FRONT PANEL Fig. 1-1 LABEL COLOR DESCRIPTION STATUS Green Ethernet port is connected Green USB port is connected Green Power supply is connected Blinking Green Synchronization with DSLAM Green ADSL link is ready...

  • Page 8: Rear Panel

    Serial port; connect to an ASCII data terminal ETHERNET RJ-45 port; connect to a PC or LAN USB port; connect to a PC RESET Resets jetSpeed 520 to its factory default settings RJ-11port; connect to the ADSL outlet Table 1-2 page 6 / 84...

  • Page 9: Hardware Installation

    Fig. 1-3 Step Action Connect one end of the ADSL cable to the WAN port of jetSpeed 520 and the other end to the ADSL wall outlet. In case jetSpeed 520 is installed, connect the telephone devices in any socket placing a microfilter. In case jetSpeed 520i is installed, connect the telephone devices to the "TEL"...

  • Page 10: Management

    520 can be managed via the following paths: • Console port: Use a RS-232 cable for connecting jetSpeed 520 to a terminal or a PC running a terminal emulation program, such as Hyper Terminal. (For further details, see paragraph 1.8 Console Setup) •...

  • Page 11: Default Values

    Ver.1.0 User Manual 10/03 jetSpeed 520 Getting Started DEFAULT VALUES jetSpeed 520 is pre-configured with the following parameters: Default Mode: Bridge User Name: admin Password: admin Bridge Mode Setting WAN and ADSL Ethernet (local) IP: 192.168.1.1 Local Line Code: Auto USB Interface (local) IP: 192.168.2.1...

  • Page 12: Software Upgrade

    Action Extract the ZIP file for updated firmware (if it is compressed). Connect jetSpeed 520 via one of the 2 local ports (Ethernet, USB) or remote ADSL link. Make sure that the jetSpeed 520 IP address and your terminal is properly configured, then you can successfully “ping” jetSpeed 520.

  • Page 13: Console Setup

    Accessories → Hyper Terminal Group → Double Click “Hypertrm.exe” → Enter Connection Name → Select Icon → Click on the OK button Select COM port to communicate with the jetSpeed 520. Choose direct to COM1 or COM2 and click on the OK button.

  • Page 14: Web Interface Management

    Ethernet http:/192.168.2.1 for USB connection in the address bar. Click Enter to enter the Web management page. NOTE: jetSpeed 520 IP and PC's IP should be under in the same subnet. For example: jetSpeed 520 IP: 192.168.1.1 PC IP: 192.168.1.2...

  • Page 15: Login

    Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management LOGIN The window Enter Network Password pops up while starting the configuration. Step Action With the window open, type admin for both the User Name and the Password. You can also change the User Name and Password or add new users.

  • Page 16: Home

    User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management 2.3.1 HOME After logging in, the first tab that is displayed is the Home tab. Under this tab, the System View page is displayed. This page displays a summary of the interfaces and their settings.
  • Page 17 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management Step Action Click on the interface name to add, change or remove any of the interface settings. Click on the Modify button to set the device date, time, time zone and other related settings.

  • Page 18: Lan

    User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management 2.3.2 Click on the LAN tab to view its sub-menu’s and configure the LAN settings. The four sub-menu’s are: • LAN Config • DHCP Mode • DHCP Server • DHCP Relay Each sub-menu is described below.

  • Page 19: Lan Config

    Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management LAN Config Click on the LAN Config link to change the LAN IP address/ subnet mask, decide where the LAN is getting its IP address from and enable or disable IGMP.

  • Page 20: Dhcp Mode

    Click on the DHCP Mode link to select a DHCP setting. From the drop down list, select DHCP Server, DHCP Relay or None. Click on the Submit button when completed. NOTE: jetSpeed 520 DHCP feature is by default selected to operate as DHCP server. page 18 / 84...

  • Page 21: Dhcp Server

    Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management DHCP Server Step Action Click on the DHCP Server link to view the DHCP Server settings. The table displays the DHCP server settings: Start IP, End IP, Domain Name, Gateway Address and Status.

  • Page 22: Dhcp Relay

    User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management DHCP Relay Step Action Click on the DHCP Relay link to view the DHCP Relay settings. Fill in the DHCP server IP address in the text boxes and select an interface name from the drop down list.

  • Page 23: Wan

    Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management 2.3.3 Click on the WAN tab to view its sub-menu’s and configure the WAN settings. The five sub-menu’s are: • • ATM VC • • • IPoA Each sub-menu is described below.
  • Page 24 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management Step Action Click on the DSL link to view the DSL status. Click on the DSL Param button to view the DSL parameters and the Stats button to view the DSL statistics. Both the DSL Parameters and DSL Statistics are described below.

  • Page 25: Dsl Parameters

    Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management DSL Parameters Step Action Click on the DSL Param button to view the DSL parameters. Another window will then display the DSL parameters, which may be different due to the type and speed of the network.
  • Page 26 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management DSL Stats Step Action Click on the Stats button to view the DSL status. Another window will then display the DSL status, which may be different due to the type and speed of the network.
  • Page 27 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management ATM VC Step Action Click on the ATM VC link to view the ATM VC table. This table displays the interface name, VPI/VCI values, Mux type and maximum protocols per AAL5.
  • Page 28 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management Point-to-Point Protocol (PPP) Step Action Click on the PPP link to view the PPP configuration table. This table displays PPP information such as: interface name, interface type, protocol, WAN IP, gateway IP, default route, DHCP, DNS and operation status.
  • Page 29 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management FIELD NAME DESCRIPTION PPP Interface Select an interface name from the drop down list. ATM VC Select an ATM VC from the drop down list. Interface Sec Type Select between public, private or DMZ.
  • Page 30 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management Ethernet over ATM (EoA) Step Action Click on the EOA link to view the RFC1483/EoA configuration table. This table displays EoA information such as: interface name, interface security type, lower interface, config IP, network IP, DHCP, default route, gateway IP and status.
  • Page 31 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management FIELD NAME DESCRIPTION EoA Interface Select an interface name from the drop down list. Interface Sec Type Select between public, private or DMZ. Lower Interface Select a lower interface name from the drop down list.
  • Page 32 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management IP over ATM (IPoA) Step Action Click on the IPoA link to view the IP over ATM configuration table. This table displays IPoA information such as: interface name, interface security type, lower interface, config IP, network IP, subnet mask gateway IP and status.

  • Page 33: Bridging

    Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management 2.3.4 BRIDGING Click on the Bridging tab to view its sub-menu’s and configure the bridge settings. The five sub-menu’s are: • Bridging • LAN Config • • ATM VC • RFC 1483 Interface (EoA) The bridging sub-menu is described below.
  • Page 34 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management Bridging Step Action Click on the Bridging link to view the Bridge configuration. This table displays bridge information such as the Interface Name. Click on the trash can icon to delete the current interface or edit the current interface by clicking on the pencil icon.

  • Page 35: Routing

    Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management 2.3.5 ROUTING Click on the Routing tab to view its sub-menu’s and configure the routing settings. The eight sub-menu’s are: • IP route • IP address • LAN Config • •...
  • Page 36 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management IP Route Step Action Click on the IP Route link to view the IP route table. This table displays IP route information such as: destination, net mask, next hop, interface name, route type and route origin.

  • Page 37: Services

    Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management 2.3.6 SERVICES Click on the Services tab to view its sub-menu’s and configure the service settings. The six sub-menu’s are: • • • Firewall • IP filter • • Blocked Protocols Each one is described in detail below.
  • Page 38 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management Step Action Click on the NAT link to view the NAT global information table. The table displays the idle times for several protocols; you may change the times and click on the Submit button.
  • Page 39 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management NAT Entry Rule Step Action The table displays NAT route configuration. Click on the trash can icon to delete the current rule or click on the Add button to add another rule.
  • Page 40 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management FIELD NAME DESCRIPTION Rule Flavor Select a rule from the drop down list. Rule ID Enter a rule ID into this text box. IF Name Select an interface name from the drop down list.
  • Page 41 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management NAT Translations Step Action The table displays the current NAT translations, if any exist. Click on the trash can icon to delete a translation or click on the Refresh button to refresh the page.
  • Page 42 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management Click on the RIP link to view the Routing Information Protocol (RIP) Configuration table. Routers on your LAN communicate with one another using the Routing Information Protocol. This table lists any interfaces on your device that use RIP (typically the LAN interface) and the version of the protocol used.
  • Page 43 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management Firewall Click on the Firewall link to view the Firewall Configuration table. The Firewall adds security to your network by protecting it from Internet intruders. The following is a list of field names and their descriptions. After filling in the table, click on the Submit button.
  • Page 44 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management IP Filter Click on the IP Filter link to view the IP Filter Configuration table. In order to configure the IP filter function, follow the steps below: Step Action Select a security level from the drop down list. The options available are: Low, Medium and High.
  • Page 45 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management Click on the Stats button to view the IP filter rule statistics. You may click on the Clear button to clear the table or click on the Close button to close the window.
  • Page 46 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management The following is a list of field names and their descriptions. After filling in the table, click on the Submit button. FIELD NAME DESCRIPTION Rule ID Enter a Rule ID. Select an incoming or outgoing direction.
  • Page 47 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management Domain Name Service (DNS) Click on the DNS link to view the DNS Configuration table. This page is used for adding and deleting DNS server IP addresses. You may also enable/disable DNS relay from this page.

  • Page 48: Blocked Protocols

    User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management Blocked Protocols Step Action Click on the Blocked Protocols link to view the list of protocols. This page is used to block or unblock protocols running across the system. Check the box if you would like the protocol blocked, un-check the box to allow the protocol.

  • Page 49: Admin

    Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management 2.3.7 ADMIN Click on the Admin tab to view its sub-menu’s and configure the admin settings. The six sub-menu’s are: • User Config • Commit & Reboot • Image Upgrade •...

  • Page 50: User Config

    User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management User Config Click on the User Config link to view the list of users. This page displays user information. Use this page to add/delete users and change your password. Your new username and password can be up to 128 characters and is case- sensitive.
  • Page 51 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management Commit & Reboot Click on the Commit & Reboot link to view the reboot options. This page is used to save the changes into the device’s memory and reboot the device using different options.

  • Page 52: Image Upgrade

    Web Interface Management Image Upgrade Click on the Image Upgrade link to upgrade the software on the modem. You may easily upgrade jetSpeed 520 embedded software by obtaining the compressed upgrade firmware file from the service provider and then follow the steps:...
  • Page 53 Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management Alarm Step Action Click on the Alarm link to view the list of alarms. The alarms shown in the table have been recorded in response to system events. Click on the Clear button to clear the alarms.
  • Page 54 User Manual Ver.1.0 jetSpeed 520 10/03 Web Interface Management Diagnostics Step Action Click on the Diagnostics link to test the device. Results will be displayed as pass, fail or N.A, depending on your settings. Click on the Submit button to begin the diagnostic tests.

  • Page 55: Port Settings

    Ver.1.0 User Manual 10/03 jetSpeed 520 Web Interface Management Port Settings Step Action Click on the Port Settings link to change the port settings on the device. Change the settings by entering the new value into the text box and click...

  • Page 56: Quick Protocol Setup

    User Manual Ver.1.0 jetSpeed 520 10/03 Quick Protocol Setup QUICK PROTOCOL SETUP This chapter provides quick steps on setting up the protocols on this device. From this point on, configuration steps are listed for each of the protocols in their respective sections. The seven sections are: •...

  • Page 57: Rfc 1483 Bridge

    Ver.1.0 User Manual 10/03 jetSpeed 520 Quick Protocol Setup RFC 1483 BRIDGE Fig. 3-1 Protocol RFC1483 Bridge Mode WAN IP The ISP assigns the IP address or have an IP address assigned from an external/internal DHCP server. Modem IP 192.168.1.1 (192.168.2.1 if USB is used)
  • Page 58 User Manual Ver.1.0 jetSpeed 520 10/03 Quick Protocol Setup Enter the VPI/VCI values (8/81) into the VPI and VCI text boxes. Then click on the Submit button to confirm the changes. Click on the EoA link below the WAN tab.
  • Page 59 Ver.1.0 User Manual 10/03 jetSpeed 520 Quick Protocol Setup Select EOA-1 from the drop down list and click on the Add button. Then click on the Submit button to confirm the changes. Click on the Admin tab to view its sub-menu’s and configure the bridging settings, then click on the Commit &...

  • Page 60: Pppoe Route Configuration

    User Manual Ver.1.0 jetSpeed 520 10/03 Quick Protocol Setup PPPoE ROUTE CONFIGURATION Step Action Click on the WAN tab to view its sub-menu’s and configure the WAN settings, then click on the PPP link below it. The PPP Configuration table appears. Click on the Add button to add a new PPPoE setting.

  • Page 61: Rfc 1483 + Nat

    Ver.1.0 User Manual 10/03 jetSpeed 520 Quick Protocol Setup RFC 1483 + NAT Fig. 3-2 Protocol RFC1483 Bridge Mode. The ISP assigns the IP address or have an IP address assigned WAN IP from an external/internal DHCP server. Modem IP 192.168.1.1...
  • Page 62 User Manual Ver.1.0 jetSpeed 520 10/03 Quick Protocol Setup Enter the VPI/VCI values (8/81) into the VPI and VCI text boxes. Then click on the Submit button to confirm the changes. Click on the EoA link below the WAN tab Enter the IP address and subnet mask based on your ISP settings.
  • Page 63 Ver.1.0 User Manual 10/03 jetSpeed 520 Quick Protocol Setup Select NAT Entry Rule from the NAT configuration drop down list. Then click on the Add button to add a NAT entry. – Select a Rule Flavor from the drop down list (Basic) –...

  • Page 64: Pppoa Route Configuration

    User Manual Ver.1.0 jetSpeed 520 10/03 Quick Protocol Setup PPPoA ROUTE CONFIGURATION Fig. 3-3 Protocol PPPoA Route Mode LAN IP 192.168.1.xxx Modem IP 192.168.1.1 Gateway IP Not required VPI/VCI 8/81 Username From ISP Password From ISP Table 3-3 Step Action Click on the Routing tab to view its sub-menu’s and configure the Routing...
  • Page 65 Ver.1.0 User Manual 10/03 jetSpeed 520 Quick Protocol Setup Enter the VPI/VCI values (8/81) into the VPI and VCI text boxes. Then click on the Submit button to confirm the changes Click on the PPP link in the Routing tab and then click on the Add button to add a PPPoA configuration.
  • Page 66 User Manual Ver.1.0 jetSpeed 520 10/03 Quick Protocol Setup – Login Name: Enter username here (from ISP) – Password: Enter password here (from ISP) Click on the Submit button to confirm the changes. Click on the Admin tab to view its sub-menu’s and configure the bridging settings, then click on the Commit &...

  • Page 67: Ipoa Route Configuration

    Ver.1.0 User Manual 10/03 jetSpeed 520 Quick Protocol Setup IPoA ROUTE CONFIGURATION Fig. 3-4 IPoA Route Mode Protocol LAN IP 192.168.1.xxx Modem IP 192.168.1.1 Gateway IP 210.62.8.1 VPI/VCI 8/81 WAN IP 210.62.8.2 Table 3-4 Step Action Click on the Routing tab to view its sub-menu’s and configure the Routing settings, then click on the ATM VC link below it.
  • Page 68 User Manual Ver.1.0 jetSpeed 520 10/03 Quick Protocol Setup Enter the VPI/VCI values (8/81) into the VPI and VCI text boxes. Then click on the Submit button to confirm the changes Click on the IPoA link in the Routing tab and then click on the Add button to add an IPoA configuration.
  • Page 69 Ver.1.0 User Manual 10/03 jetSpeed 520 Quick Protocol Setup Click on the Admin tab to view its sub-menu’s and configure the bridging settings, then click on the Commit & Reboot link below it Select the Reboot from last configuration option from the drop down list and the click on the Commit and Reboot button.

  • Page 70: Dhcp Configuration

    User Manual Ver.1.0 jetSpeed 520 10/03 Quick Protocol Setup DHCP CONFIGURATION Step Action Click on the LAN tab to view its sub-menu’s and configure the LAN settings, then click on the DHCP Mode link below it. From the drop down list, select DHCP Server and click on the Submit button.
  • Page 71 Ver.1.0 User Manual 10/03 jetSpeed 520 Quick Protocol Setup Ethernet – Start IP Address: Enter the Start IP Address (192.168.1.2) – End IP Address: Enter the End IP Address (192.168.1.33) – Net mask: Based on IP address (255.255.255.0) – Domain Name: Enter a name here –...

  • Page 72: Nat Configuration

    User Manual Ver.1.0 jetSpeed 520 10/03 Quick Protocol Setup NAT CONFIGURATION Step Action Click on the Services tab to view its sub-menu’s and configure the NAT settings, then click on the NAT link below it. From the NAT Options drop down list, select NAT Rule Entry.
  • Page 73 Ver.1.0 User Manual 10/03 jetSpeed 520 Quick Protocol Setup – Login Name: Enter username here (from ISP) – Global Address From: Global Address from where this device will receive IPs – Global Address Το: Global Address where this device will send its packets Click on the Submit button to confirm the changes.

  • Page 74: Usb Driver Installation

    520 10/03 USB Driver Installation USB DRIVER INSTALLATION INSTALLATION The jetSpeed 520 installation procedure is same for Windows 98 (Second Edition)/ ME/ 2000/ XP. Follow the steps below in order to install the USB driver. Step Action Insert the Installation CD into your CD-ROM drive. The installation begins automatically and the Welcome screen appears.
  • Page 75 Ver.1.0 User Manual 10/03 jetSpeed 520 USB Driver Installation Click on the Next button to continue. The Installing screen appears. The DSL installer prompt you to plug in the USB cable into the device. Plug in the rectangular end of the USB cable in the USB port of your PC and the square end of the USB cable into the port labelled USB on the jetSpeed 520.
  • Page 76 User Manual Ver.1.0 jetSpeed 520 10/03 USB Driver Installation The ADSL installer will continue to install the USB driver. After a few seconds, a new screen will inform you that you must reboot your computer. Click on the Close to reboot your computer.

  • Page 77: Adsl Status

    Ver.1.0 User Manual 10/03 jetSpeed 520 USB Driver Installation ADSL STATUS In order to view the status of this device you need to run the control panel that is provided with this device. Step Action To run the control panel click on the Start button > Programs > jetSpeed 520 ADSL Modem >...
  • Page 78 User Manual Ver.1.0 jetSpeed 520 10/03 USB Driver Installation Click on the System Info tab to view the USB driver and control panel version. Click on the Close button when completed. page 76 / 84...

  • Page 79: Uninstallation

    Ver.1.0 User Manual 10/03 jetSpeed 520 USB Driver Installation UNINSTALLATION Step Action In order to uninstall this device click on the Start button > Programs > DSL Modem > Uninstall. The following message appears. Click on the Yes button to confirm the uninstallation. You will then se the following message.
  • Page 80 User Manual Ver.1.0 jetSpeed 520 10/03 USB Driver Installation At this point, unplug the modem and then click on the OK button. The Reboot screen appears. Select the Yes, reboot the computer now radio box and then click on the Close button.

  • Page 81: Appendix - Specifications

    Ver.1.0 User Manual 10/03 jetSpeed 520 Appendix – Specifications APPENDIX – SPECIFICATIONS Hardware Specifications LAN Interface Supported Interfaces IEEE 802.3 Ethernet 10/100 BaseT (RJ-45) USB, specification 1.1 WAN ADSL Line Interface Supported Standards ITU G.992.1 (G.dmt) Annex A • For POTS line ITU G.992.2 (G.lite)

  • Page 82: Environmental Conditions

    User Manual Ver.1.0 jetSpeed 520 10/03 Appendix – Specifications OAM&P Local RS-232, Telnet via Ethernet or Web management Remote Telnet or Web management Environmental Conditions Operation Temperature 0°C ~ 45°C Operation Humidity 5% ~ 95% -20 ~ +85°C Storage Temperature...

  • Page 83: Software Specifications

    Ver.1.0 User Manual 10/03 jetSpeed 520 Appendix – Specifications Software Specifications • ATM Cell over ADSL, AAL5 • Supports UBR/GFR, CBR, VBR-rt and VBR-nrt • VPI Range (0-4095) and VCI range (1-65535) • Supports up to 8 PVCs (Bridge Mode), 5 PVCs (Router Mode) •...
  • Page 84 User Manual Ver.1.0 jetSpeed 520 10/03 Appendix – Specifications Configuration and Network Management • DHCP server for IP management • FTP, TFTP, Telnet for local or remote management • TFTP for firmware upgrade • Web configuration • SNMP v1 and MIB II (RFC 1213) •...

  • Page 85: Declaration Of Conformity

    10/03 jetSpeed 520 Declaration of Conformity DECLARATION OF CONFORMITY Hereby, INTRACOM S.A. declares that the jetSpeed 520/520i is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please visit the web page http://emc.intracom.gr./...
  • Page 86 User Manual Ver.1.0 jetSpeed 520 10/03 Declaration of Conformity (page intentionally left blank) page 84 / 84...
