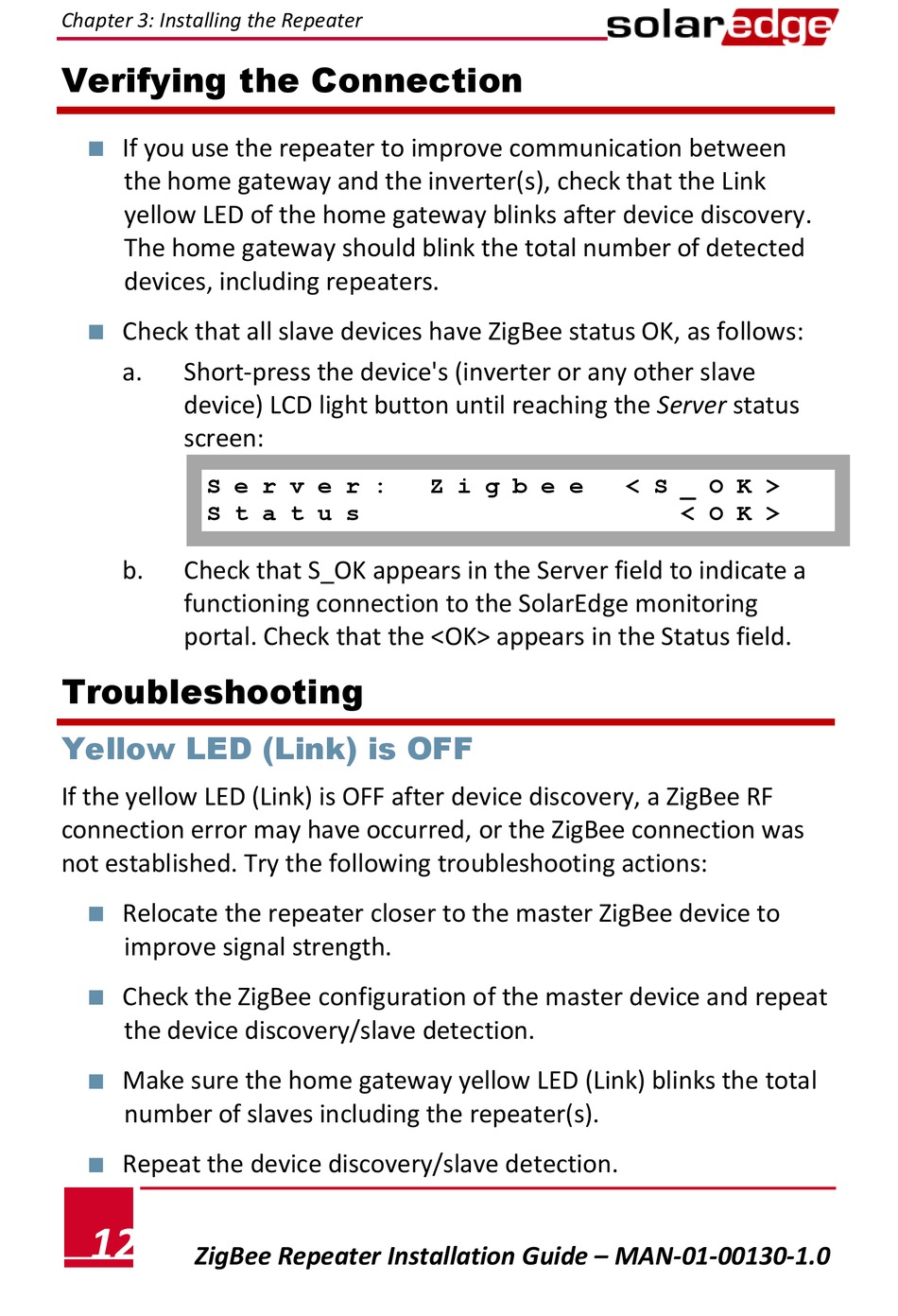

Chapter 3: Installing the Repeater

Verifying the Connection


If you use the repeater to improve communication between
the home gateway and the inverter(s), check that the Link
yellow LED of the home gateway blinks after device discovery.
The home gateway should blink the total number of detected
devices, including repeaters.

Check that all slave devices have ZigBee status OK, as follows:
a. Short-press the device's (inverter or any other slave
device) LCD light button until reaching the Server status
screen:
S e r v e r :
S t a t u s
b. Check that S_OK appears in the Server field to indicate a
functioning connection to the SolarEdge monitoring
portal. Check that the <OK> appears in the Status field.

Troubleshooting

Yellow LED (Link) is OFF

If the yellow LED (Link) is OFF after device discovery, a ZigBee RF
connection error may have occurred, or the ZigBee connection was
not established. Try the following troubleshooting actions:

Relocate the repeater closer to the master ZigBee device to
improve signal strength.

Check the ZigBee configuration of the master device and repeat
the device discovery/slave detection.

Make sure the home gateway yellow LED (Link) blinks the total
number of slaves including the repeater(s).

Repeat the device discovery/slave detection.
12
ZigBee Repeater Installation Guide – MAN-01-00130-1.0
Z i g b e e < S _ O K >
< O K >
