Summary of Contents for SolarEdge ZigBee
-
Page 3: Disclaimers
The material furnished in this document is believed to be accurate and reliable. However, SolarEdge assumes no responsibility for the use of this material. SolarEdge reserves the right to make changes to the material at any time and without notice. You may refer to the SolarEdge web site (www.solaredge.com) for the most updated... -
Page 4: Fcc Compliance
Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority to operate the equipment. ZigBee Repeater Installation Guide – MAN-01-00130-1.0... -
Page 5: Table Of Contents
Table of Contents ..............3 About This Guide ..............4 Support and Contact Information ........5 Chapter 1: Introducing the SolarEdge ZigBee Repeater ..6 Overview ................6 Package Contents ............7 Chapter 2: SolarEdge Repeater User Interfaces ....8 Chapter 3: Installing the Repeater ........ -
Page 6: About This Guide
SolarEdge power harvesting system. This manual describes how to install and set up the ZigBee™ communication between a SolarEdge device (inverters or Safety and Monitoring Interface) and the SolarEdge home ZigBee repeater). The manual instructions and graphics refer to the inverter;... -
Page 7: Support And Contact Information
0800 028 1183 Kingdom Greece 00800125574 Israel +972 73 240-3118 Japan +81.3.5530.9360 Australia 1800149229 Worldwide +972 73 240-3118 +972 73 240-3117 Before contacting SolarEdge, ensure you have the product serial number as appears on its label. ZigBee Repeater Installation Guide – MAN-01-00130-1.0... -
Page 8: Chapter 1: Introducing The Solaredge Zigbee Repeater

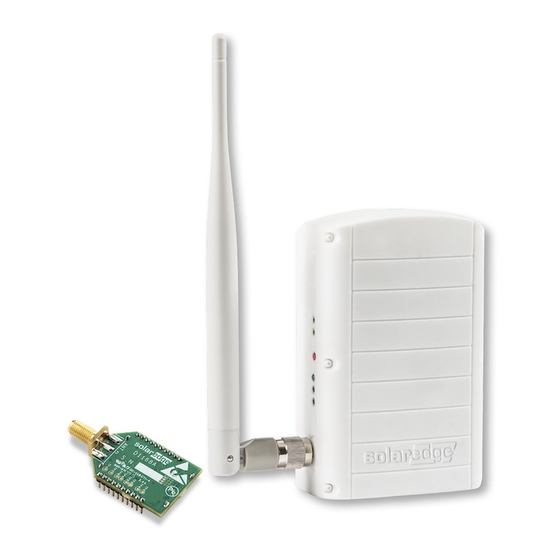

Chapter 1: Introducing the SolarEdge ZigBee Repeater Chapter 1: Introducing the SolarEdge ZigBee Repeater Overview The SolarEdge ZigBee repeater (range extender) is used for extending the wireless connectivity range between SolarEdge devices that are equipped with ZigBee transmitters. Figure 1: The SolarEdge ZigBee Repeater... -
Page 9: Package Contents
Chapter 1: Introducing the SolarEdge ZigBee Repeater Figure 2: The SolarEdge ZigBee Repeater between the Home Gateway and Inverter Package Contents ZigBee repeater with antenna Power supply This installation guide ZigBee Repeater Installation Guide – MAN-01-00130-1.0... -
Page 10: Chapter 2: Solaredge Repeater User Interfaces
ZigBee Two LEDs ON - Medium (green) device One LED ON - Low (Low/Medium/High) Power Power Power supply connected to (green) the repeater The other interfaces are not used in this product. ZigBee Repeater Installation Guide – MAN-01-00130-1.0... - Page 11 Chapter 2: SolarEdge Repeater User Interfaces Antenna Link LED (Yellow) S_OK LED (Green) Signal strength LEDs (x3, Green) USB Port Power LED (Green) Figure 3: User Interfaces ZigBee Repeater Installation Guide – MAN-01-00130-1.0...
-
Page 12: Chapter 3: Installing The Repeater
-20°C (-4°F) to +60°C (140°F). Protect the SolarEdge repeater from dust, wet conditions, corrosive substances, and vapors. The SolarEdge repeater can be placed on the desk or installed on a wall. Figure 4: Wall Mount Option ZigBee Repeater Installation Guide – MAN-01-00130-1.0... -
Page 13: Connecting The Repeater
Ensure that the antenna is always vertically oriented. Figure 5: Antenna Orientation Connecting the Repeater Check that ZigBee transmitters are installed in all SolarEdge devices (all salves and master). Place the repeater between the two devices that are not communicating and need range extension. -
Page 14: Verifying The Connection
Check that the <OK> appears in the Status field. Troubleshooting Yellow LED (Link) is OFF If the yellow LED (Link) is OFF after device discovery, a ZigBee RF connection error may have occurred, or the ZigBee connection was not established. Try the following troubleshooting actions: ... -
Page 15: Green Led (S_Ok) Is Off
Try the following troubleshooting actions: Verify that the S_OK LED on the master device is ON, which indicates the communication with the SolarEdge portal is established. Repeat the device discovery/slave detection. -
Page 16: Appendix A: Technical Specifications
-20 ÷ +60 °C Storage temperature -40 ÷ +85 °C Relative humidity (non condensing) 0 ÷ 80 Ingress protection IP20 Power Supply Requirements Voltage Current Approximate values, may differ depending on specific installation conditions ZigBee Repeater Installation Guide – MAN-01-00130-1.0...
