Summary of Contents for VBOX Motorsport VBOX HD

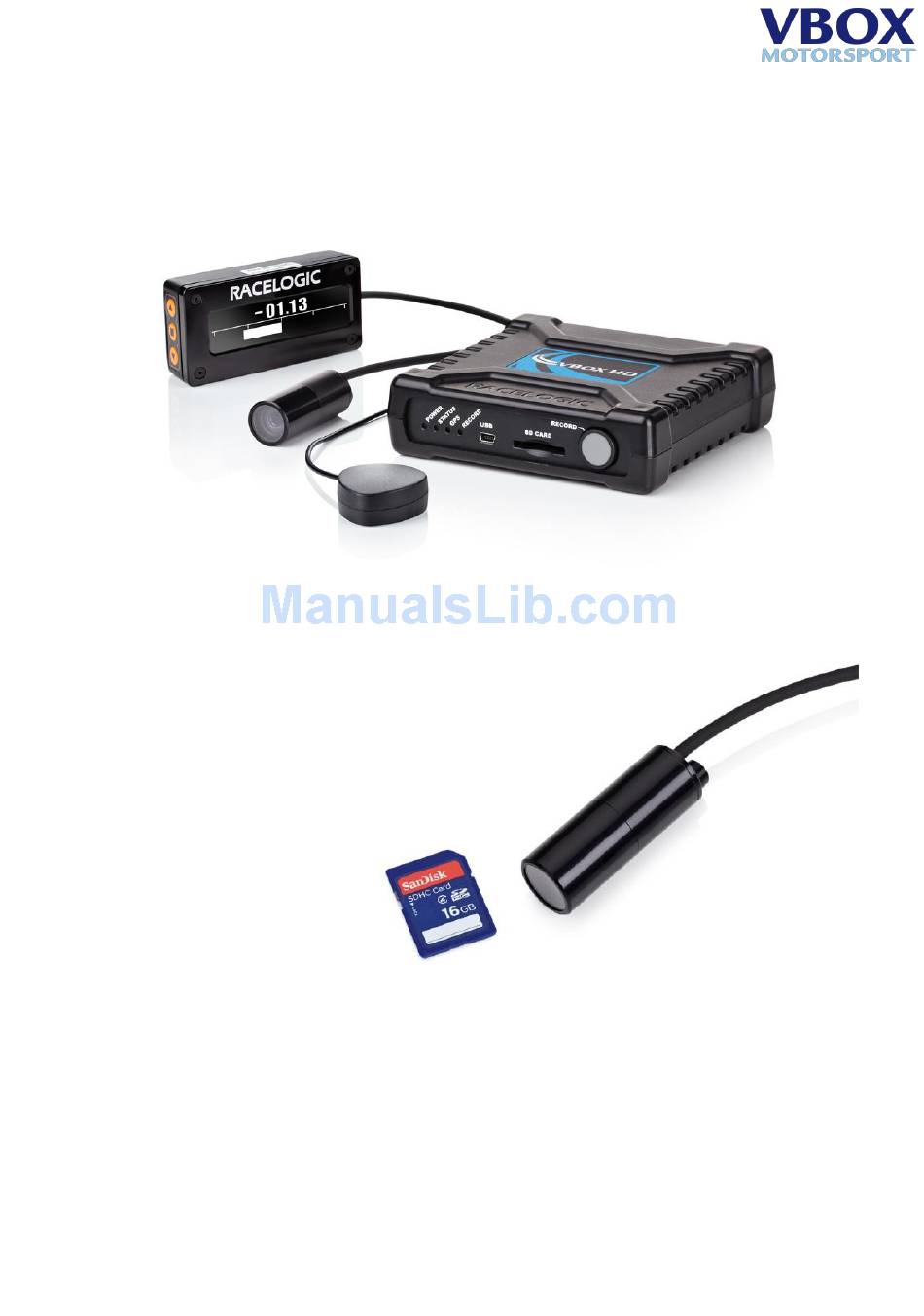

- Page 1 VBOX HD Hardware Manual Issue 10 30 July 2014...
- Page 2 VBOX HD MANUAL This page intentionally left blank Page | 2 30 July 2014...
-
Page 3: Table Of Contents
Contents Quick Start Guide ........................... 4 Logging media ............................5 SD cards ..................................5 USB memory sticks ................................. 5 VBOX HD registration ..........................5 File formats............................5 Video format ............................5 CAN channels ............................5 Logging modes ............................6 Log only when moving (default) ............................. 6 Manual logging ................................ -
Page 4: Quick Start Guide
5. Position the vehicle so the antenna has a clear view of the sky. It will take up to two minutes to acquire a satellite lock, at which point the GPS LED will illuminate. If VBOX HD is having trouble gaining lock when in an open area, press and hold the RECORD button for 10 seconds, this will perform a GPS ‘cold start’. -
Page 5: Logging Media
CAN channels VBOX HD units can log up to 32 channels from a connected CAN bus system. Note that the unit must be set up to read set parameters using VBOX HD Setup software (see software manual for more details). -
Page 6: Logging Modes
To set this logging mode, changes must be made to the HD unit’s setup in VBOX HD Setup software. When VBOX HD is in manual logging mode, it will never automatically start or stop logging. It must be controlled by the user to open each file before driving off, and close each file before the logging media is removed from the box. -
Page 7: Lap Timing
Auto track map – Once a GPS location is detected, the VBOX HD will load a start/ finish line for that location in order to allow a connected OLED to detect it without any other setup. The desired layout being used can then be defined through the OLED main menu. -
Page 8: Troubleshooting Guide
The scene may be corrupt, try re-uploading the scene. Try to re-flash the firmware. VBOX HD not responding - GPS Coldstart The GPS engine has locked up, perform a GPS Engine Coldstart – hold REC button for 5 seconds. -
Page 9: Can Output
VBOX HD MANUAL CAN output The VBOX HD has a CAN output which is present on the 5-way connector output. Data format: Motorola Baud rate: 500Kb/s Data Bytes Update Rate 0x301 100ms (1) Sats in (2) Time since midnight UTC (3) Position –... -
Page 10: Connector Assignments
VBOX HD MANUAL Connector assignments Connector 1 – PWR Function Power + (9 to 15V) Ground (0V) Connector 2 – CAM1 Function Camera Data + Ground Camera Power (3.3V) Camera Data - Connector 4 – CAN Function Digital Output CAN High... -
Page 11: Contact Details
VBOX HD MANUAL Contact details RACELOGIC UK (HQ) RACELOGIC GERMANY RACELOGIC USA Unit 10, Swan Business Centre Postplatz 5 27240 Haggerty Rd, Suite E17 Osier Way, Buckingham 35781 Weilburg Farmington Hills, MI 48331 Bucks MK18 1TB, UK Deutschland Tel: +44 1280 823 803...
