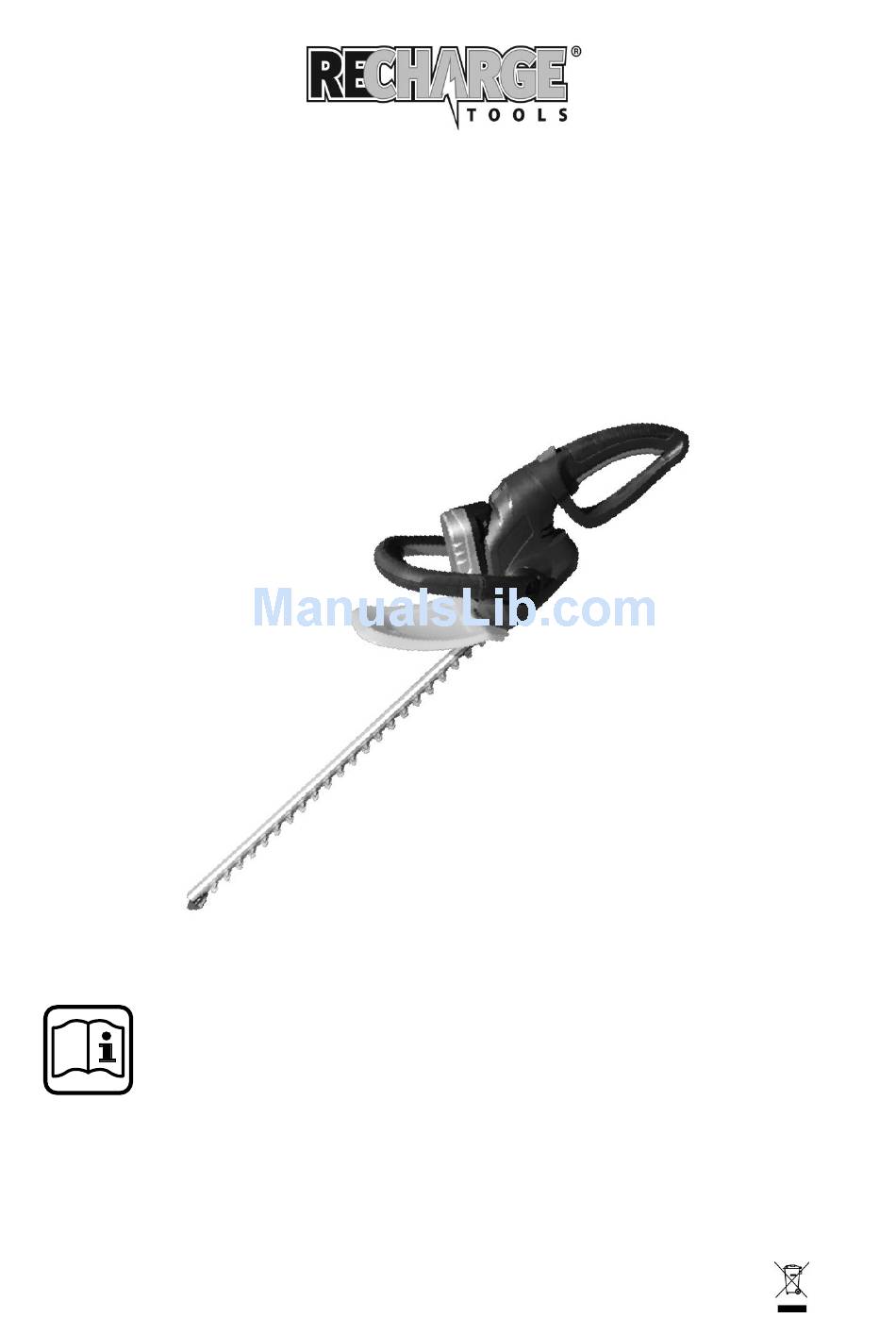

- Page 1 Instruction Manual Cordless Hedge Trimmer HTLI-10 For correct usage, read these instructions carefully and keep in a safe place for future reference. Driven By Solar Inc., Mississauga, ON, L5N 5Z2 www.RechargeTools.com...
-
Page 2: Intended Use
Intended Use This cordless hedge trimmer is designed exclusively for cutting garden hedges in your private domestic gardens. Use for purposes other than those intended qualify as improper use.The manufacturer / supplier is not responsible for any damages that result from improper use, The operator is solely responsible for assuming all risks. -
Page 3: Safety Precautions
Safety Precautions Explanation of symbols: Warning notice. Read the instruction manual. Eye protection must be used. Do not expose the tool to rain. Warning! Keep bystanders away. Remove battery before adjusting or cleaning and before leaving the machine unattended for any period. Only use the battery charger indoors. - Page 4 Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and / or serious injury. The user is responsible for any accidents involving other people or anyone‟s property. ...
- Page 5 The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning tool operation, always wear safety goggles or safety glasses with side shields and a full-face shield when needed.
-
Page 6: Delivered Items
Hedge trimmer with blade assembled Hand guard - affixed Front handle Blade transportation guard. (fitted on the hedge trimmer blade) Lithium-ion Battery Pack Battery charger Operating instructions Product Specifications Item HTLI-10 Battery pack voltage DC 18V Battery pack capacity 1300mAH Battery type Lithium-ion... -
Page 7: Before Use
No load speed 1100rpm 525mm (20.6”) Blade Length 508mm (20”) Cutting length Tooth spacing: 15 mm (0.60”) (0.47”) Max cutting capacity 12mm Noise power level LWA 83.4 dB (A) Noise pressure level LPA 63.4dB (A) Vibration on front handle 0.955m/s Vibration on rear handle 1.12m/s Charger (adaptor) input... - Page 8 Charging Procedure (Fig. 1,2,3,4) Battery can be charged outside the machine (Fig.1) or on the machine (Fig 2-3). It is recommended to charge the battery pack outside the machine, If charging on the machine, the switch will lose function and machine cannot be started during charging process. 1.
- Page 9 Attach the front handle to the main housing as illustrated in Fig.7, Make sure the lock spanner (10) is at the right side before attaching the front handle otherwise the front handle cannot be aligned with the housing. (Fig.7) Check to confirm the front handle is firmly secured. If not, retighten the locking bolt (9). Adjust the front handle to the required position and close the lock spanner (10).
-
Page 10: Starting And Stopping
2．Adjustment of the front handle (Fig.12-13) The front handle can be set in three positions. Release the lock spanner to adjust the front handle to the most comfortable position. Then close the lock spanner to lock it in that position. Caution: Ensure you support the weight of the hedge trimmer before you adjust the front handle. - Page 11 Operating Instructions This cordless hedge trimmer is designed exclusively for cutting garden hedges in your private domestic gardens. Please note that this tool is not designed for commercial, trade or industrial use. Only use this product for the purpose specified in these instructions. Any other use will void the guarantee.
-
Page 12: Blade Maintenance
Maintenance Blades can cause injury. Remove battery from the machine during maintenance work. Note: To ensure long and reliable service, regularly carry out the following maintenance: Check for obvious defects such as loose, dislodged or damaged blades, loose fittings and worn or damaged components. - Page 13 During storage, charge the battery at least once every three months to protect it from damage. Store the machine in a dry, secure place out of reach of children. Do not place any other objects on top of the machine. ...
- Page 14 This guarantee does not extend to normal wear and tear on blades or blade mounting components. Any guarantee claim shall be immediately void in the event of unauthorized repairs. Faults and defects which can be traced to material or manufacturing faults will be rectified exclusively by our contracted service agents (the seller has the right to remedy a defect) in your vicinity or by the manufacturer if the latter is closer.
