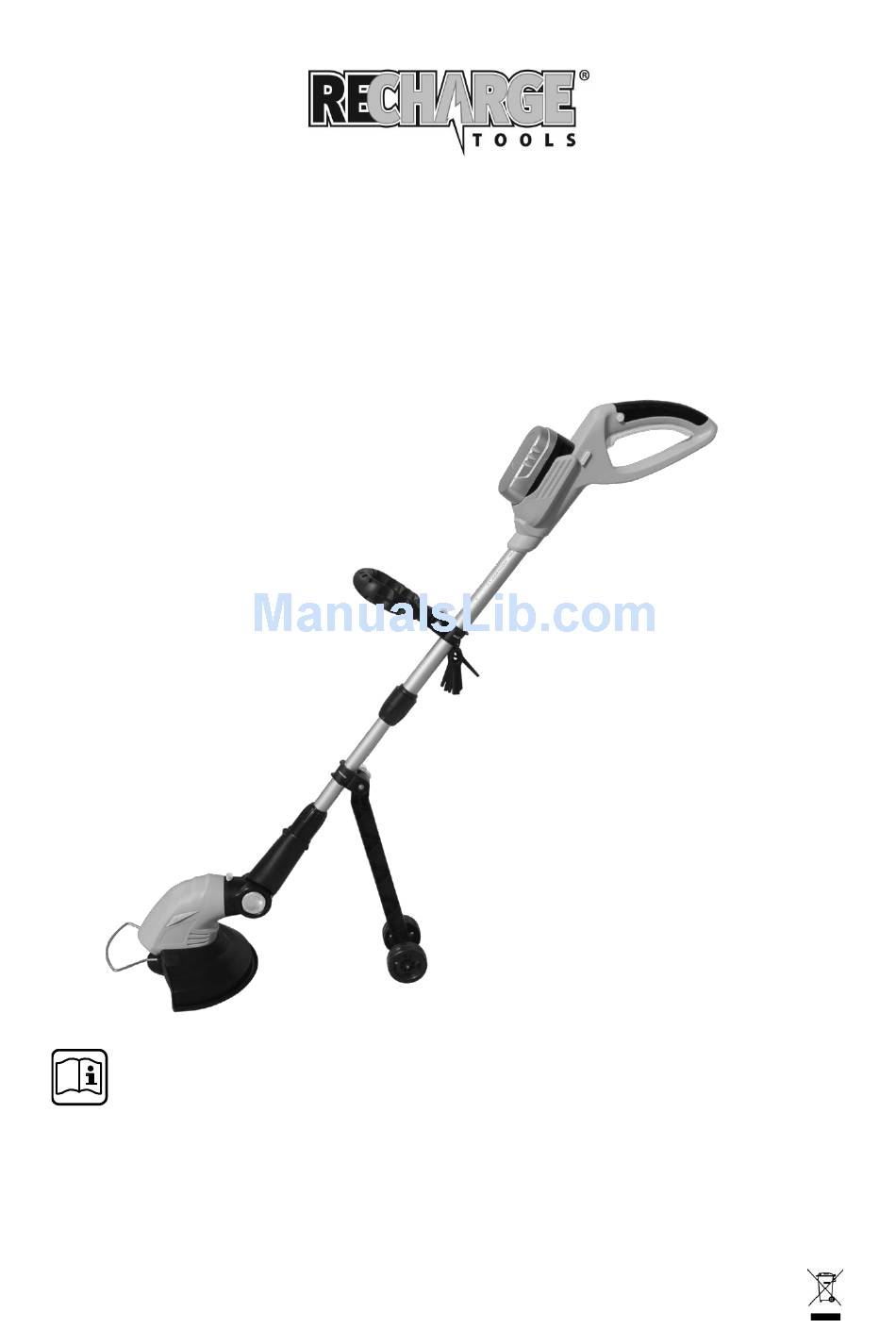

- Page 1 Instruction Manual Cordless Grass Trimmer and Edger GTLI-10 For correct usage, read these instructions carefully and keep in a safe place for future reference. Driven By Solar Inc., Mississauga, ON, L5N 5Z2 www.RechargeTools.com...
-
Page 2: Intended Use
Introduction This manual gives instructions on the correct assembly and safe use of your machine. It is important that you read these instructions carefully. Intended Use Intended Use is related to operation within 0°C and 40°C (32˚ F and 104˚ F) ambient temperature. This trimmer is ideal for trimming lawn edges and small lawn areas in private gardens. - Page 3 Beware of thrown or flying objects to bystanders. Keep bystanders a safe distance away from the machine. Do not expose to moisture! Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period. Do not work in the rain or leave the trimmer outdoors while it is raining. Do not use the charger if the cord is damaged.
- Page 4 Replace worn or damaged parts for safety. Ensure replacement parts fitted are Recharge Tools® approved. Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into machines that have the switch on invites accidents.
- Page 5 Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge.
-
Page 6: Technical Data
Technical Data Type GTLI-10 Battery: DC 18V/1350mAH Battery type: Lithium-ion No load speed: 8000rpm Cutting circle: 26 cm/10.25 inches Weight: 2.6 kg/5.825 lbs Vibration: 5,769 m/s (Main handle),1.802 m/s (Adjustable handle) Vibration: 19,000 ft/ s (Main handle),5.9 ft/ s (Adjustable handle) Sound power level: 88.4dB (A) -
Page 7: Charging Procedure
2 Handle 3 Battery 4 Battery lock/release button 5 Handle wing nut 6 Adjustable handle 7 Adjusting collar 8 Shaft 9 Button for head rotation 10 Trimmer head 11 Plant protector 12 Cutting guard 13 Ventilation slots 14 Button for head angle adjustment 15 Wheels 16 Battery charger 17.LED indicator... - Page 8 Fig.2 Fig 3 Instructions for the handling of the charger: • Red LED is on: Battery is being charged. • Green LED is on: Charge process completed. Charging Advice With continuous or several repetitive charging cycles without interruption, the charger can warm up.
- Page 9 tighten the adjusting collar to fix the trimmer head with telescopic tube assembly (Fig.5) Fig.4 Fig.5 Mounting the Cutting Guard (Fig.6 -7) Place the cutting guard on the trimmer head. 1. Fit the guard onto trimmer head and push until secure fitting. 2.
- Page 10 Press cutting disc onto drive adaptor as shown (Fig.9) To fit the blade, place it over the pivot and pull outwards until it snaps into place. (Fig.10) Fig.9 Fig. 10 Mounting the Wheels (Fig.11) Fit the wheels onto the shaft. Fit the bolt and the wing nut.
- Page 11 Fig.12 Adjusting Product Length (Fig.13-14) Loosen the adjustment collar. Pull the shaft out to increase the height, or push the shaft in to decrease the height. Re-tighten adjustment collar. Fig.13 Fig.14 Adjusting cutting head angle: The lawn trimmer is equipped with a four position, adjustable working angle. This enables you to easily trim hard-to-reach areas in your garden.
-
Page 12: Cutting And Edging
The edge function enables precise and convenient trimming along the edge of the lawn. 1. Turn cutting head 90° 2. Set handle angle Fig.15 Fig.16 Plant hoop guard The plant hoop guard protects bushes, trees and plants. Cutting and Edging Remove stones, loose pieces of wood and other objects from the cutting area. -
Page 13: Maintenance
Remove the wheels when cutting long grass Trimming Edges Guide the trimmer along the edge of the lawn. Do not allow the cutting blade to contact paved surfaces, stones or garden walls, since this will wear the blade rapidly. For better control, use the plant protector. Cutting Around Trees and Bushes Carefully cut around trees and bushes so that they do not come into contact with the cutting blade. -
Page 14: Blade Maintenance
Blade Maintenance Before any work on the machine itself, remove battery from machine. To remove the worn blade, push in direction of the arrow until it snaps off the pivot. (Fig.18) Clean the pivot of any residual plastic / debris with a sharp knife. To refit the new blade, place the eyelet over the pivot and pull outwards until it snaps into place. - Page 15 Symptom Possible Cause Remedy Can not fit Guard over Incorrect assembly Remove cutting disc and fit cutting disc guard; also see Product assembly Machine fails to operate Battery discharged Recharge battery, also see Charging advice Machine functions Machines internal wiring Contact Service Agent intermittently damaged...
- Page 16 Disposal Power tools, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of electrical equipment in domestic waste. Recycle equipment, accessories and packaging in an environment-friendly manner. Dispose of batteries in an environmentally responsible manner. Batteries are Li-ION rechargeable batteries and therefore must be disposed of in accordance with waste disposal regulations.
