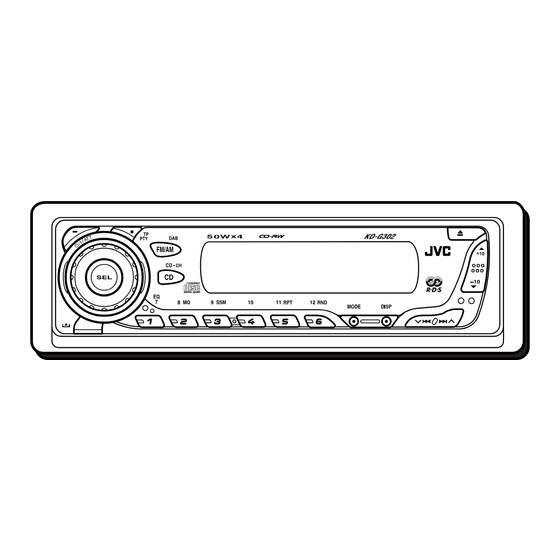

CD RECEIVER
CD-RECEIVER
RECEPTEUR CD
CD-RECEIVER
KD-G302/KD-G301
• This unit is equipped with the display demonstration. To cancel it, see page 6.
• Dieses Gerät ist mit einer Demonstrationsfunktion für das Display ausgestattet. Auf Seite 6 wird
beschrieben, wie Sie diese Demonstrationsfunktion deaktivieren können.
• Cet appareil est équipé d'une fonction de démonstration des affichages. Pour l'annuler, référez-vous
à la page 6.
• Dit toestel heeft een display-demonstratiefunctie. Zie bladzijde 6 voor het annuleren van deze
functie.
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l'installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de
desbetreffende handleiding.
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
KD-G302
KD-G301
GET0187-001A
[E/EX]

Advertisement

Table of Contents
loading

Related Manuals for JVC GET0187-001A

Summary of Contents for JVC GET0187-001A

  • Page 1 Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding. INSTRUCTIONS BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS GEBRUIKSAANWIJZING KD-G302 KD-G301 GET0187-001A [E/EX]...

  • Page 2: How To Reset Your Unit

    IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel. 3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

  • Page 3: Table Of Contents

    Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS How to reset your unit ... How to use the MODE button ...

  • Page 4: Location Of The Buttons

    (see page 25). g MP3 indicator • Lights up only when playing an MP3 disc on a JVC MP3-compatible CD changer. h Tuner reception indicators—ST (stereo), MO (monaural) j RDS indicators—TP, PTY, AF, REG...

  • Page 5: Basic Operations

    Turning on the power Turn on the power. Note on One-Touch Operation: When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. Select the source. To operate the tuner (FM or AM), see pages 8 –...

  • Page 6: Canceling The Display Demonstration

    Canceling the display demonstration When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds. • It is recommended to cancel the display demonstration before you use the unit for the first time.

  • Page 7: Setting The Clock

    Setting the clock You can also set the clock system to either 24 hours or 12 hours. Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 23 and 24.) Set the hour.

  • Page 8: Radio Operations

    RADIO OPERATIONS Listening to the radio You can use either automatic searching or manual searching to tune in to a particular station. Searching for a station automatically: Auto search Select the band (FM1 – 3, AM). Each time you press the button, the band changes as follows: Selected band appears.

  • Page 9: Storing Stations In Memory

    Tune in to a station you want while “M” (manual) is still flashing. To tune in to stations of higher frequencies To tune in to stations of lower frequencies • If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

  • Page 10: Tuning In To A Preset Station

    Manual preset You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually. Ex.: Storing FM station of 92.5 MHz into the preset number 1 of the FM1 band. Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

  • Page 11: Rds Operations

    What you can do with RDS RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc.

  • Page 12: Using Ta Standby Reception

    Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 23 and 24.) Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display. Select the desired mode—“AF,” “AF REG,”...
  • Page 13 Using PTY Standby Reception PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source (another FM station, CD, or other connected components). • PTY Standby Reception will not work if you are listening to an AM station.
  • Page 14 Searching your favorite programme You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).
  • Page 15 To search your favorite programme type Press and hold TP PTY for more than 2 seconds while listening to an FM station. The last selected PTY code appears. To select one of your favorite programme type To select any one of the twenty-nine PTY codes Ex.: When “ROCK M”...

  • Page 16: Other Convenient Rds Functions And Adjustments

    Other convenient RDS functions and adjustments Automatic selection of the station when using the number buttons Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the...
  • Page 17 PTY codes NEWS: News AFFAIRS: Topical programmes expanding on current news or affairs INFO: Programmes which impart advice on a wide variety of topics SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or regional culture SCIENCE: Programmes on natural science and technology...

  • Page 18: Cd Operations

    CD OPERATIONS Playing a CD Open the control panel. Note on One-Touch Operation: When a CD is already in the loading slot, pressing CD CD-CH turns on the unit and starts playback automatically. Insert a CD into the loading slot. The unit turns on, draws the CD and starts playback...

  • Page 19: Locating A Track Or A Particular Portion On A Cd

    To stop play and eject the CD Press 0. CD play stops and the control panel flips down. The CD automatically ejects from the loading slot. The source changes to the previously selected source. • If you change the source, CD play also stops (without ejecting the CD).

  • Page 20: Selecting Cd Playback Modes

    How to use the +10 and –10 buttons • Ex. 1: To select track number 32 while playing track number 6 (Three times) \ 10 \ 20 \ 30 Track 6 • Ex. 2 : To select track number 8 while playing track number 36 (Three times) Track 36 \ 30 \ 20 \ 10...

  • Page 21: Sound Adjustments

    Selecting preset sound modes (C-EQ: custom equalizer) You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre. • There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

  • Page 22: Adjusting The Sound

    Adjusting the sound You can adjust the sound characteristics to your preference. Select the item you want to adjust. Each time you press the button, the adjustable items change as follows: (bass) (treble) LOUD (volume) (loudness) Indication To do: Adjust the bass. Adjust the treble.

  • Page 23: Other Main Functions

    Changing the general settings (PSM) You can change the items listed in the table below and on page 24 by using the PSM (Preferred Setting Mode) control. Basic Procedure Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
  • Page 24 Indications PTY-STBY PTY standby TA VOL Traffic announcement volume P-SEARCH Programme search DAB AF Alternative frequency search DAB VOL DAB volume adjustment LEVEL Level display DIMMER Dimmer mode Telephone muting EXT IN External component AMP GAIN Amplifier gain control Depending on the amplifier gain control setting. (See page 25 for details.) Displayed only when the DAB tuner is connected.
  • Page 25 To select the level meter—LEVEL You can activate or deactivate the level meter according to your preference. When shipped from the factory, level meter is activated. • ON: Shows the audio level indicator. • OFF: Cancels the audio level indicator; sound mode indicator is shown.

  • Page 26: Detaching The Control Panel

    Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching the control panel Before detaching the control panel, be sure to turn off the power.

  • Page 27: Cd Changer Operations

    CD CHANGER OPERATIONS We recommend that you use the JVC MP3- compatible CD changer with your unit. By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format.

  • Page 28: Playing Discs

    Playing discs Select the CD changer (CD-CH). CD-CH* * If you have changed “EXT IN” setting to “LINE IN” (see page 25), you cannot select the CD changer. • When the current disc is an MP3 disc: Playback starts from the first folder of the current disc once file check is completed.
  • Page 29 Each time you press the button consecutively, the beginning of the previous tracks/files is located and played back. This operation is only possible when using JVC MP3-compatible CD changer (CH-X1500). To go to a track/file quickly (+10 and –10 buttons) Press MODE to enter the functions mode while playing a disc.

  • Page 30: Selecting The Playback Modes

    Selecting the playback modes To play back tracks/files at random (Disc Random/Magazine Random Play) Press MODE to enter the functions mode during play. Press RND (random), while “MODE” is still flashing on the display. Each time you press the button, the random play mode changes as follows: DISC RND...

  • Page 31: External Component Operations

    EXTERNAL COMPONENT OPERATIONS Playing an external component You can connect the external components to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied). Preparations: • For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

  • Page 32: Dab Tuner Operations

    DAB TUNER OPERATIONS We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 or KT-DB1000 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer. • Refer also to the Instructions supplied for your DAB tuner.

  • Page 33: Storing Dab Services In Memory

    Start searching for an ensemble. To search for ensembles of higher frequency To search for ensembles of lower frequency When an ensemble is received, searching stops. To stop searching before an ensemble is received, press the same button you have pressed for searching.

  • Page 34: Tuning In To A Preset Dab Service

    Tune in to an ensemble you want. Select a service of the ensemble you want to listen to. To select the next service To select the previous service Press and hold the number button (in this example, 1) for more than 2 seconds to store the selected service into the preset number you want.

  • Page 35: What You Can Do More With Dab

    What you can do more with Tracing the same programme automatically (Alternative Reception) You can keep listening to the same programme. • While receiving a DAB service: When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same programme.

  • Page 36: Using The Remote Controller

    USING THE REMOTE CONTROLLER This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK50 or RM-RK60 with your unit. (Ex.: When you are using RM-RK60) Before using the remote controller: •...

  • Page 37: Location Of The Buttons

    Location of the buttons RM-RK60 1 • Turns on the unit if pressed when the unit is turned off. • Turns off the unit if pressed and held until “SEE YOU” appears on the display. • Drops the volume level in a moment if pressed briefly.

  • Page 38: Troubleshooting

    TROUBLESHOOTING What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • Sound cannot be heard from the speakers. • This unit does not work at all. • SSM (Strong-station Sequential Memory) automatic preset does not work.
  • Page 39 Symptoms • “NO DISC” appears on the display. • “NO MAG” appears on the display. • “RESET 8” appears on the display. • “RESET 1” – “RESET 7” appears on the display. • The CD changer does not work at all. About mistracking: Mistracking may result from driving on extremely rough roads.

  • Page 40: Maintenance

    Handling discs This unit has been designed to reproduce CDs, CD-Rs (Recordable), and CD-RWs (Rewritable). • This unit is not compatible with MP3 discs, but can operate a JVC MP3-compatible CD changer. How to handle discs When removing a disc...

  • Page 41: Specifications

    AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 50 W per channel Rear: 50 W per channel Continuous Power Output (RMS): Front: 19 W per channel into 4 , 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Rear: 19 W per channel into 4 , 40 Hz to 20 000 Hz at no more than...
  • Page 42 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit Haben Sie PROBLEME mit dem Betrieb? Bitte setzen Sie Ihr Gerät zurück Siehe Seite Zurücksetzen des Geräts Vous avez des PROBLÈMES de fonctionnement? Réinitialisez votre appareil Référez-vous à...
  • Page 43 Op de volgende afbeelding kunt u zien hoe de installatie, normaal gesproken, in zijn werk gaat. Neem bij vragen of voor meer bijzonderheden over inbouwpakketten contact op met uw JVC car audio dealer of een dealer of een bedrijf dat inbouwpakketten levert.

  • Page 44: Electrical Connections

    JVC IN-CAR ENTERTAINMENT dealer. Nennleistung ersetzen. Brennt die Sicherung • It is recommended to connect to the speakers häufig durch, wenden Sie sich an ihren JVC with maximum power of more than 50 W (both Autoradiohändler. at the rear and at the front, with an impedance •...
  • Page 45 ENGLISH DEUTSCH Typical Connections / Typische Anschlüsse / Raccordements typiques / Normale verbindingen Before connecting: Check the wiring in the Vor dem Anschließen: Die Verdrahtung im vehicle carefully. Incorrect connection may Fahrzeug sorgfältig überprüfen. Falsche cause serious damage to this unit. Anschlüsse können ernsthafte Schäden am The leads of the power cord and those of the Gerät hervorrufen.
  • Page 46 If your car is equipped with the steering wheel remote controller, you can operate this receiver using the controller. To do it, a JVC’s OE remote adapter (not supplied) which matches with your car is required. Consult your JVC IN-CAR ENTERTAINMENT dealer for details.
