CD RECEIVER
CD-RECEIVER
RECEPTEUR CD
CD-RECEIVER

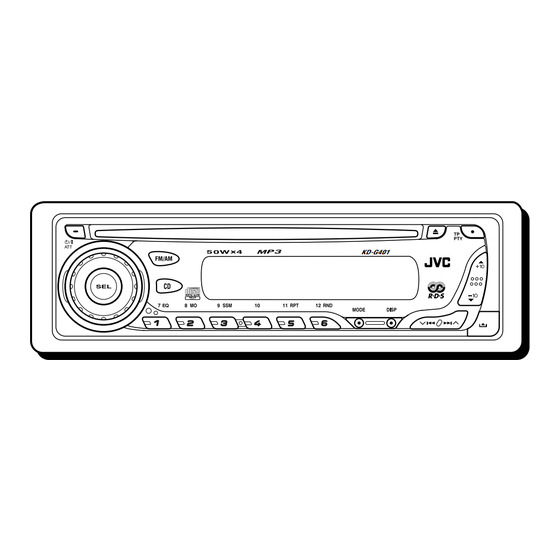

KD-G401
• This unit is equipped with the display demonstration. To cancel it, see page 6.
• Dieses Gerät ist mit einer Demonstrationsfunktion für das Display ausgestattet. Auf
Seite 6 wird beschrieben, wie Sie diese Demonstrationsfunktion deaktivieren können.
• Cet appareil est équipé d'une fonction de démonstration des affichages. Pour l'annuler,
référez-vous à la page 6.
• Dit toestel heeft een display-demonstratiefunctie. Zie bladzijde 6 voor het annuleren van
deze functie.
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l'installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de
desbetreffende handleiding.
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
GET0195-001A
[E/EX]

Advertisement

   Summary of Contents for JVC GET0195-001A

  • Page 1

    Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding. INSTRUCTIONS BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS GEBRUIKSAANWIJZING GET0195-001A [E/EX]...

  • Page 2: How To Reset Your Unit

    IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel. 3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

  • Page 3: Table Of Contents

    Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS How to reset your unit ... How to use the MODE button ...

  • Page 4: Location Of The Buttons

    LOCATION OF THE BUTTONS Control panel Display window (standby/on attenuator) button 2 SEL (select) button 3 FM/AM button 4 CD button 5 Loading slot 6 Display window 7 0 (eject) button 8 TP PTY (traffic programme/programme type) button 9 Remote sensor •...

  • Page 5: Basic Operations

    Turning on the power Turn on the power. Note on One-Touch Operation: When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. Select the source. To operate the tuner (FM or AM), see pages 8 –...

  • Page 6: Canceling The Display Demonstration

    Canceling the display demonstration When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds. • It is recommended to cancel the display demonstration before you use the unit for the first time.

  • Page 7: Setting The Clock

    Setting the clock You can also set the clock system to either 24 hours or 12 hours. Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 31.) Set the hour.

  • Page 8: Radio Operations

    RADIO OPERATIONS Listening to the radio You can use either automatic searching or manual searching to tune in to a particular station. Searching for a station automatically: Auto search Select the band (FM1 – 3, AM). Each time you press the button, the band changes as follows: Lights up when receiving an FM stereo...

  • Page 9: Manual Search

    Searching for a station manually: Manual search Select the band (FM1 – 3, AM). Each time you press the button, the band changes as follows: Note: This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

  • Page 10: Storing Stations In Memory

    Storing stations in memory You can use one of the following two methods to store broadcasting stations in memory. • Automatic preset of FM stations: SSM (Strong- station Sequential Memory) • Manual preset of both FM and AM stations FM station automatic preset: SSM You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

  • Page 11: Tuning In To A Preset Station

    Press and hold the number button (in this example, 1) for more than 2 seconds. Preset number flashes for a while. Repeat the above procedure to store other stations into other preset numbers. Notes: • A previously preset station is erased when a new station is stored in the same preset number.

  • Page 12: Rds Operations

    RDS OPERATIONS What you can do with RDS RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc.

  • Page 13

    Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 31.) Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display. Select the desired mode—“AF,” “AF REG,”...

  • Page 14

    Using PTY Standby Reception PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source (another FM station or CD). • PTY Standby Reception will not work if you are listening to an AM station. You can select your favorite programme type for PTY Standby Reception.

  • Page 15

    Searching your favorite programme You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

  • Page 16

    To search for your favorite programme type Press and hold TP PTY for more than 2 seconds while listening to an FM station. The last selected PTY code appears. To select one of your favorite programme type To select any one of the twenty-nine PTY codes.

  • Page 17: Other Convenient Rds Functions And Adjustments

    Other convenient RDS functions and adjustments Automatic selection of the station when using the number buttons Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the...

  • Page 18

    PTY codes NEWS: News AFFAIRS: Topical programmes expanding on current news or affairs INFO: Programmes which impart advice on a wide variety of topics SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or regional culture SCIENCE: Programmes on natural science and technology...

  • Page 19: Cd Operations

    Refer “MP3 OPERATIONS” on pages 24 to 27 for operating MP3 discs. Playing a CD Insert a CD into the loading slot. The unit turns on, draws the CD and starts playback automatically. Note on One-Touch Operation: When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

  • Page 20: Locating A Track Or A Particular Portion On A Cd

    Locating a track or a particular portion on a CD To fast-forward or reverse the track Press and hold ¢ playing a CD, to fast-forward the track. 4, while playing a CD, to Press and hold reverse the track. To go to the next or previous tracks Press ¢...

  • Page 21: Selecting Cd Playback Modes

    Selecting CD playback modes To play back tracks at random (Disc Random Play) You can play back all tracks on the CD at random. Press MODE to enter the functions mode while playing a Press RND (random), while “MODE” is still flashing on the display, so that “DISC RND”...

  • Page 22: Playing A Cd Text

    Playing a CD Text In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text. To change the CD Text information manually, select text display mode while playing a CD Text.

  • Page 23: Mp3 Introduction

    What is MP3? MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps*). * Bit rate is the average number of bits that one second of audio data will consume.

  • Page 24: Mp3 Operations

    MP3 OPERATIONS Refer also to “CD OPERATIONS” on pages 19 to 22. Playing an MP3 disc Insert an MP3 disc into the loading slot. Note on One-Touch operation: When a disc is already in the loading slot, pressing CD turns on the unit and starts playback automatically. CD indicator Current source indication MP3 indicator...

  • Page 25: Locating A File Or A Particular Portion On A Disc

    To change the display information While playing back an MP3 file, you can change the disc information shown on the display. Press DISP (display) repeatedly. Each time you press the button, the display changes to show the following: • When “TAG DISP” is set to “TAG ON” (initial setting: see page 32) Album name / performer (folder name*)

  • Page 26

    To go to a particular file quickly within the current folder (+10 and –10 buttons) Press MODE to enter the functions mode while playing a disc. Press +10 or –10. To skip 10 files* forwards to the last file To skip 10 files* backwards to the first file * First time you press +10 or –10 button, the file skips to the nearest higher or lower file...

  • Page 27: Selecting Mp3 Playback Modes

    To skip to the next or previous folder Press 5 (up) while playing an MP3 disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

  • Page 28: Sound Adjustments

    SOUND ADJUSTMENTS Selecting preset sound modes (C-EQ: custom equalizer) You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre. • There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

  • Page 29: Adjusting The Sound

    Adjusting the sound You can adjust the sound characteristics to your preference. Select the item you want to adjust. Each time you press the button, the adjustable items change as follows: (bass) (treble) LOUD (volume) (loudness) Indication To do: Adjust the bass. Adjust the treble.

  • Page 30: Other Main Functions

    OTHER MAIN FUNCTIONS Changing the general settings (PSM) You can change the items listed in the table on page 31 by using the PSM (Preferred Setting Mode) control. Basic Procedure Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.

  • Page 31

    Preferred Setting Mode (PSM) items • For detailed operations of each PSM items, refer to the pages listed in the table. Indications DEMO Display demonstration CLOCK H Hour adjustment CLOCK M Minute adjustment 24H/12H 24/12-hour time display AUTO ADJ Automatic clock setting AF-REG Alternative frequency/ Regionalization reception...

  • Page 32

    To select the dimmer mode—DIMMER You can dim the display at night (according to your preference). When shipped from the factory, dimmer is deactivated. • OFF: Cancels the dimmer. • ON: Activates the dimmer. To select the telephone muting—TEL This mode is used when a cellular phone system is connected.

  • Page 33: Detaching The Control Panel

    Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching the control panel Before detaching the control panel, be sure to turn off the power.

  • Page 34: Using The Remote Controller

    USING THE REMOTE CONTROLLER This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK50 or RM-RK60 with your unit. (Ex.: When you are using RM-RK60) Before using the remote controller: •...

  • Page 35: Location Of The Buttons

    Location of the buttons RM-RK60 1 • Turns on the unit if pressed when the unit is turned off. • Turns off the unit if pressed and held until “SEE YOU” appears on the display. • Drops the volume level in a moment if pressed briefly.

  • Page 36: Troubleshooting

    TROUBLESHOOTING What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • Sound cannot be heard from the speakers. • This unit does not work at all. • SSM (Strong-station Sequential Memory) automatic preset does not work.

  • Page 37

    Symptoms • Disc cannot be played No MP3 files are recorded on back. the disc. MP3 files do not have the extension code <.mp3> in their file names. MP3 files are not recorded in the format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

  • Page 38: Maintenance

    MAINTENANCE Handling discs This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Texts. • This unit is also compatible with MP3 discs. How to handle discs When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

  • Page 39: Specifications

    AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 50 W per channel Rear: 50 W per channel Continuous Power Output (RMS): 19 W per channel into 4 Ω, 40 Hz Front: to 20 000 Hz at no more than 0.8% total harmonic distortion. 19 W per channel into 4 Ω, 40 Hz Rear: to 20 000 Hz at no more than...

  • Page 40

    Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit Haben Sie PROBLEME mit dem Betrieb? Bitte setzen Sie Ihr Gerät zurück Siehe Seite Zurücksetzen des Geräts Vous avez des PROBLÈMES de fonctionnement? Réinitialisez votre appareil Référez-vous à...

  • Page 41

    Op de volgende afbeelding kunt u zien hoe de installatie, normaal gesproken, in zijn werk gaat. Neem bij vragen of voor meer bijzonderheden over inbouwpakketten contact op met uw JVC car audio dealer of een dealer of een bedrijf dat inbouwpakketten levert.

  • Page 42: Electrical Connections

    If the fuse blows frequently, consult your Nennleistung ersetzen. Brennt die Sicherung JVC IN-CAR ENTERTAINMENT dealer. häufig durch, wenden Sie sich an ihren JVC • It is recommended to connect to the speakers Autoradiohändler. with maximum power of more than 50 W (both •...

  • Page 43

    ENGLISH DEUTSCH Typical Connections / Typische Anschlüsse / Raccordements typiques / Normale verbindingen Before connecting: Check the wiring in the Vor dem Anschließen: Die Verdrahtung im vehicle carefully. Incorrect connection may Fahrzeug sorgfältig überprüfen. Falsche cause serious damage to this unit. Anschlüsse können ernsthafte Schäden am The leads of the power cord and those of the Gerät hervorrufen.

  • Page 44

    If your car is equipped with the steering wheel remote controller, you can operate this receiver using the controller. To do it, a JVC’s OE remote adapter (not supplied) which matches with your car is required. Consult your JVC IN-CAR ENTERTAINMENT dealer for details.
